100% A+ Quality Hot Selling 5 pieces /lot Android Bluetooth Scan

Product Description

Welcome to Promotion :http://www.aliexpress.com/fm-store/705199

New to Aliexpress? Get a $5 free coupon today : http://ru.aliexpress.com/about/home.html

B-Scan (Bluetooth scan) is working with Android operating system cell phone, is newly developed by LanDu, specially designed for car owners or DIYs to diagnose any vehicle that is compliant to OBDII/OBD. It not only can read/clear DTCs, but also can read live data in 2 modes, and perform many special tests. Tri-languages make it operation easily for a technician.

Function:

Safe Driving Remind!

High-precision fuel consumption display
Read real-time condition information
Read the history of maintenance records
Read and clear vehicle error code
Clear vehicle malfunction code
Read vehicle data stream Letter

Specific:

1: B-Scan (Bluetooth scan) applies to OBDII / the EOBD protocol vehicles.

2: B-Scan (Bluetooth scan) is communicating with a phone with Android operating system via Bluetooth. (Andrews’s system version requires 2.3)

3: B-Scan communicates with Android Phone via Bluetooth. All OBDII / OBD II protocol can be read. Like trouble code, fuel consumption information, data stream, freeze frame data, mileage and maintenance records; users concerned about the traffic data, all will be read.

4: OBD module hardware version number V1.50 software version is V2.03.01, the phone displays the software version number is V1.00.16. Software matches the password: 1234

Advantage:

1. B-Scan is designed by car. The standby quiescent current is less than 0.2 micro amps, and other is 38 to 54 mA which is not suitable for a long time installed in the car;

2. Automotive fault classification, to facilitate the driver according to the severity of processing; other products are not graded;

3. If the vehicle also has a new fault, B-Scan instants perception and adds the new fault content, and other products only back to the interface and display again;

4. B-Scan clears the trouble code and re-read the fault code which cleared immediately; other products still show the original fault code and content;

5. B-Scan can guide users to deal with different fault code, help users to find fault reasons;

6. B-Scan content library to support manufacturer’s code;

7. B-Scan supports the fuel consumption information display;

8. B-Scan supports the mileage and maintenance records;

9. The main interface of the B-Scan Bluetooth detection card display important vehicle data, easily and intuitively; other products are the main menu link status.

Specification:

Operating temperature: -40 ~ 80 C
Preservation of the environment temperature: 40 ~ 200 ° C
Operating voltage: 12 ~ 18 V
The maximum threshold voltage: 25V
Maximum instantaneous current: 120mA
Normal operating current: less than 60mA
Sleep current: less than 0.2uA
Wireless communication frequency: 2.4G
Wireless transmission: Bluetooth, 2.4G RF
Wireless transmission distance: greater than 4m
Wired communication: serial communication (3.3V)

Size: 65mm * 50mm * 23mm (length * width * height)

Weight: 42g

Instructions:

Open the software in phone to the vehicle info monitor: vehicle status, dynamic data, oil wear info, maintenance record and system setting

1. Vehicle status :

Below the car model is system state, based on the severity of the dangers are divided into NORMAL, IGNORABLE FAULT, NEED SERVICING and IMMEDIATE SERVICING.

According to the state of the vehicles, the colors are different:

NORMAL: green

IGNORABLE FAULT: yellow

NEED SERVICING: Red

IMMEDIATE SERVICING: red

Click and enter into the vehicle status information page to see the fault code, fault code help, failure of vehicle data and vehicle status information of the condition information area.

2. Dynamic data

Like last picture , in speedometer, Long pointer is the current speed; short pointer (red) is speed limited. The car owner can set up the speed limit value according to the road. When the speed exceeds the speed limit value, the system will give "you have been speeding" voice alert.

The speed limit value setting: press and hold the speed limit pointer two seconds, the speed display will change to show the speed limit, click on the value of a digital input keypad, the actual speed limit value can enter the highway.

Click dynamic data to the info page and check the battery voltage, vehicle speed, engine speed, engine temperature, and vehicle dynamics data providing important reference for fault repairing.

3. Oil wear info

Like las picture , oil wear table is the instantaneous fuel consumption, Click in to oil wear info page and view the instantaneous fuel consumption, trip fuel consumption, average fuel consumption and others.

Instantaneous fuel consumption: the vehicle at a particular moment

The trip fuel consumption: the vehicle from start to stop the fuel consumption Average fuel consumption

1): from the clear fuel consumption to the moment per 100 km average fuel consumption for the fuel consumption table below the Average fuel consumption

2): From the clear fuel consumption to the moment the average per 100 km fuel consumption.

4.maintenance record

Like last picture , the progress bar at the top of full-length on behalf of the previous maintenance records, maintenance interval mileage. When the mileage reaches a certain value and color is diferent.  The left side of the color segments on behalf of the mileage, the right on behalf of miles from the next maintenance. When the maintenance of the progress bar turns yellow, the previous maintenance records will be changed to "need maintenance” Click into the previous maintenance records. The left is the mileage information settings, the right side of history and maintenance projects.

Calibration of the total mileage: The initial value is set for the value of the mileage shown on the odometer. Setting method: Click on the mileage value, an input keyboard input 10 ~ 999 999 number.

Miles away to the next maintenance: the distance of the next maintenance.

Maintenance interval mileage: mileage value of the maintenance to the next maintenance interval. Set with the calibration of the total mileage.

The relationships: To the next maintenance mileage = maintenance intervals mileage - (calibration of the total mileage - demarcation of the total mileage of the initial value)

The right of the page to view a history of maintenance projects, the maintenance projects. Completion of the maintenance set and click "OK" button to save your settings, point back button.

5.System setting.

"System Setting" at the top shows the last selected models and displacement. Settings by default, including models, displacement, fuel type, language, notify mode, voice prompts and the version number.

The notification mode is divided into the direct mode and indirect mode; select the direct mode, the OBD program will always run in the foreground, the indirect mode is run in the background.

About the customs problems and tax:

1. We have professional shipping company and there is no any failed customs experience before. ( we have special method to send out together those stickers to avoid customs problems )
2. We always declare below USD$100 to save tax . please leave us message if you have special requests for the declaring cost.
3.if you are from Brazil,you must provide your CPF NUMBER(TAX NUMBER) to us.
4. If your address is remote area, we will write to ask your decision before sending goods.

For big quantity order,ask the seller for more discount please. (trademanager ID: cn220244284  / cneobd )

Welcome to subscribe to my store. By a few clicks you can enjoy our VIP service such as the latest updates from new arrivals to bestselling products on a weekly basis etc:

http://cn.ae.alibaba.com/wstradealert/wsTradeAlertSubscribe.htm?entryToken=store&subType=S&subContent=705199#

How to place an order:

1. Chose the quantity

2.Click to buy or add to cart

1. We offer FREE SHIPPING to most countries.
2. We offer DHL,EMS,UPS,Fedex,TNT ,China Post and HongKong post (with tracking number).
EMS:4-7 days to arrive
DHL/UPS/TNT/Fedex:3-5 days to arrive
China post: 20-30 days to arrive , bad weather, holiday or other special reason may result delay delivey, so it is suitable for no hurry goods. You can ask to extend your delivery time to let your parcel arrive before the appointed time finish on aliexpress.
(Note: Please make sure your address is not remote area when you chose DHL,otherwise, there will charge an extra USD$ 31 by DHL . you can check DHL site to see if remote: http://remoteareas.dhl.com/jsp/first.jsp )
3. Goods only shipped after payment confirmed.
Note:We hope it arrive on time but this international delivery shipping time will be highly depends on the courier
4. We always declare under USD$100 to help you save tax .Buyer is responsible for any customs duties if it is required. In most cases, the tax is none or just few.
5. We always use some special method to hidden those brand stickers to help clear customs .

We accept Credit card,Moneybookers,Western Union,bank transfer,Qiwi wallet.All need 24 hours to varify the payment by aliexpress exclude QIWI Wallet.

1. Items will be checked carefully twice before shipping .
2. We promise warranty for quality in 1 year and we will repair it free of charge , we offer free china post shipping when second send after repaired.
( the item must be returned in their original condition, or the buyer have to be responsible for the destroy.)

3. If items are damaged obviously when delivering, please do not accept it and return it to courier, also please contact us promptly .
4. If the itmes can not work fine, please check twice to confirm its defective and contact our customer service representative during 3 days, we will do our best to serve you.(it not coverd for accident , water,abuse,misuse or other
5. If you want more items we can offer you big discount.

We appreciate your positive feedback. Please leave us possitive feedback upon satisfactory receipt of the item.
If an issue arises please contact us first before leaving any negative or neutral feedback, thanks very much!

Newest Fiat KM Tool with warranty mileage correction for fiat US$ 23.16/piece

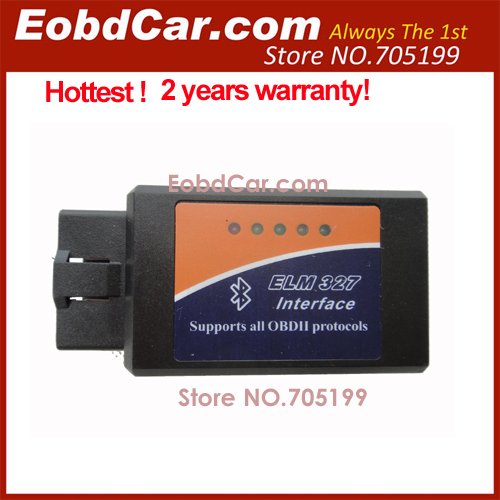

Weekly Promotion Hottest Cheaper ELM 327 Bluetooth OBDII CAN-BUS Diagnostic Interface Scanner obd 2 US$ 271.00/lot 20 pieces / lot
