15pcs/lot 18W tube with 1650LM, directly replacement of 36W fluorescent tube, PF:0.98 1200mm LED T8 tube,AC100-277V milk cover

Product Description

T8 18W LED Tube Light

Types: BTK-G1312-018W Tube

Features:

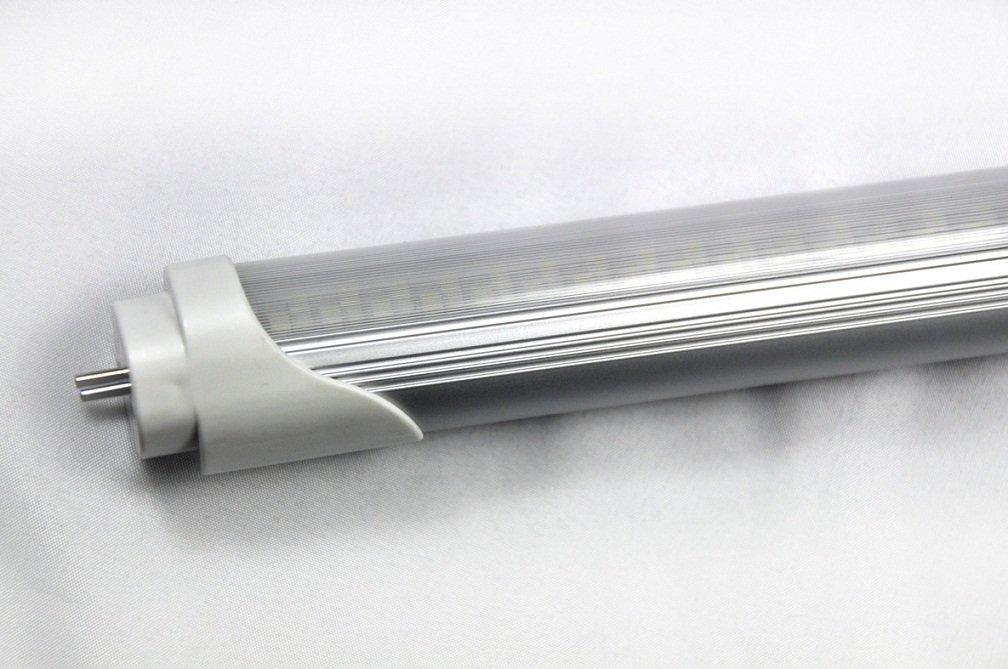

18W tube front side

18W tube with milk cover

• LED quantity: 324 (110V) and 328 (230V)
• LED viewing angle: 120°
• Luminous flux (typical): 1650lm
• LED forward current: 18mA
• Power factor: >0.9
• Operating lifespan: 50,000 hours
• Total power consumption: 18W
• Equivalent to fluorescent tube: 60W
• Color temperature: 6,500 to 7,000 (white) and 3,500 to 4,100K (warm white)
• Length: 1,200mm
• Diameter: 26.3mm
• Comes in aluminum alloy material with acrylic cover
• Voltage: 100 to 150V/60Hz and 190 to 260V/50Hz (277V version is also available)
• Built-in dedicated LED driver with PWM constant current supply to ensure long operating life and to minimize brightness deterioration due to over-driven, unlike many other designs where only normal rectifier and simple RC circuit is employed
• Any individual LED failure will not cause other LEDs in working condition to black out, this is an added advantage over other designs
• Direct plug-in replacement for conventional T8 fluorescent tube with electrical or magnetic ballast and starter
• Note that it does not need such ballast and starter to operate and normally its performance should not be affected, if left intact
• However, for these models with HB LEDs and higher power factor value, it is recommended to bypass the magnetic ballast if there is negative impact on PF value or blinking
• Not recommended for fixtures with electronic ballast/starter due to much higher voltage
• Internal wiring of such fixture must be reconnected to have the electronic ballast/starter removed
• Brightness can be controller by external dimmer

18W tube backside:

• Applications: rooms, hotels, offices, supermarkets, and commercial buildings

Packaging details:

20pcs/carton; N.W: 15kg/carton; G.W: 16.9kg/carton

Carton size: 16.5* 20.35*153cm; 7480pcs/20ft container
