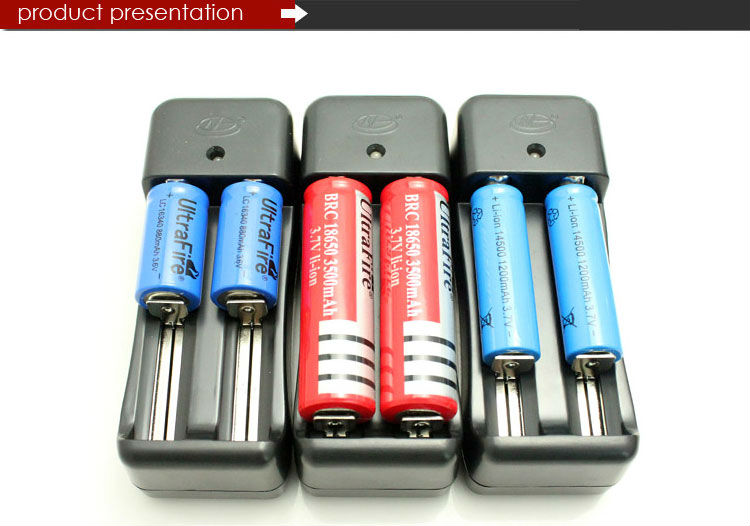

Suitable for various sizes of lithium ion rechargeable battery, 18650/16340, NiMH / NiCd (flat head, convex head can), 2 batteries, 2/3--5/4AA (5 #), 2/3--5 / 4AAA (7 #), 2/3-7/5F6, F8 and other rechargeable batteries.
1, automatic identification and convert various 1.2V/3.6/3.7V various 1.2V lithium-ion and nickel-metal hydride / nickel at the identification, full auto stop charging.
2, the current, Vmax detection, stoped display to protect the battery.
3, charging the red light, full of turns green, automatically stop charging, using a fixed voltage control, high resistance slow charge batteries quickly turn flash, slow flash and other light into both fully charged.
4, a comprehensive protection, battery installed anti shorted for no charge.
* Input voltage :110-240V ,47-63HZ
* Charging current:
1.2V/700mA (NiMH / NiCd) termination voltage 1.41V.
3.6-3.7V/650mA (lithium-ion rechargeable battery) termination voltage of 4.2V, precision control, the error is within 1%.
The battery can be loaded sliding groove dimensions: length 70 mm, diameter 22 mm
1, various nominal 3.6-3.7V lithium-ion rechargeable batteries, such as LIR123A, 18650,10440 and so on.
2, the nominal 1.2-1.25V for every Ni / Ni-MH rechargeable batteries, the 2nd, 2/3-5/4AA (5 #), 2/3-5/4AAA (7 #), 2/3-7 / 5F6, F8 and other rechargeable batteries. Fixed voltage control, high resistance slow charge the battery quickly turn flash, slow flash and other light into both fully charged.
Charging time reference
A charging reference time, two times doubled, high resistance into slow charge, the time will be extended for many
3.7V rechargeable battery: 18650 about 4 hours, about 0.8 hours 1044, 1450 about 1 hour
1.2V rechargeable battery: 1000MAH4 hours, 2500MAH8 hours
