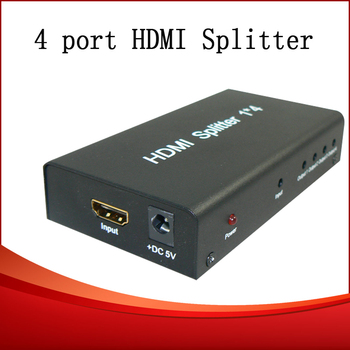

 1x4 HDMI Splitter / MINI HDMI Splitter 1x4 Splitter

Free Shipping

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Our series of HDMI Converters.switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient ,more comfortable, more productive and more cost-efficient.

The 1x4 HDMI Splitter use a single HDMI source accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

l One HDMI 1.3b input signal split to four HDMI 1.3b sink devices

l HDCP 1.2 protocol compliant

l Support 3D

l Support CEC

l Support deep color 30bit, 36bit

l Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

l Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

l Support signal retiming

l Support input up to 15metres AWG26 HDMI 1.3 standard cable length,

output up to 25metres AWG26 cable length

l No loss of quality

l Installs in minutes

l Need DC5V/1A power supply

SPECIFICATIONS:       HDSP0104M

HDMI version---------------------- HDMI 1.3b

HDCP version-------------------.HDCP1.2

HDMI resolution------------------- ..24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format ----------------------------.24bit/deep color 30bit,36bit

Support audio format..DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth------------------------.225MHz

Max baud rate----------------------6.75Gbps

Input/Output TMDS signal ------------------0.5~1.5Volts p-p(TTL)

Input/Output DDC signal------------------ 5Volts p-p (TTL)

Input cable distance----------------15m AWG26 HDMI 1.3 standard cable

Output cable distance------------------25m AWG26 HDMI 1.3 standard cable

Max working curren------------------.600mA

Power adapter format..Input:--------------------­.AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range-----------------------­ (-15 to +55)

Operating Humidity range-----------------------.5 to 90%RH (No Condensation)

Dimension (L x W x H) --------------------------­115x61x25 (mm)

Weight-------------------190g
