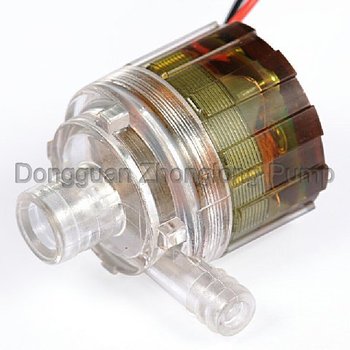

25-02G1 High quality mini brushless DC pump

Product Description

25-02 brushless DC mini water pump
Feature:
1. Life: Expected life span is about 20000 hours.
2. Low noise: ?35dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy duty work for a whole day. Continuous operation.
4. Working conditions: Applying to indoor and outdoor under temperature 40degC.
5.Working temperature: Within 90 degC.
6. It is waterproof and can be submersible.

7. We can offer this item with trasparent color, white color and black color, the transparent color item
and white color item are food grade. The item with black color can offer both food grade and non food
grade items. Please tell us which item you need.
8. This pump is our newest design, it is made of high temperature resistant material, it can work a whole day continuously in boiled water without any damage.This pump is specially designed for hot water system, coffee maker, tea pot, small fountain, aquarium, flowers and plants watering, ect.
We can offer over voltage protection, over current protection, temeprature control, ect. All functions are
custormized according to your request.
9. THE TECHNICAL SPECIFICATIONS BELOW IS ONLY FOR YOUR REFERENCE. IT CAN BE CUSTORMIZED ACCORDING TO YOUR TECHINCAL REQUIREMENTS.

Power supply:
It can be powered directly by Solar panel; DC electric source; battery.

Application:
1. Coffee maker(Food grade item)
2. Tea pot (Food grade item)
3. Electric air pot
4. Water ciculation system
5. Fountain, aquarium
6. Medical divices
7. Water dispenser(Food grade item)
8. Fruit juice mixer(Food grade item )

Specification:
Model Working voltage    Working current    Static lift    Static flowrate     Temp

25-02   4.5VDC                       350mA           0.7 meter        0.8 L/min       ?100degC
            6 VDC                         300mA            1 meter          1 L/min           ?100degC
            9 VDC                         300mA            1.5 meter       1.5 L/min       ?100degC
            12 VDC                       250mA            2meter           2 L/min          ?100degC
The tolerance of technical parameters above is ±10%
Remarks:The technical parameters above are only a few for your reference, we can offer a lot of
different speficiations accroding to your request, for more detailes, please feel free to contact us.

Structure dimensions
Model Dimension(mm) Inlet OD(mm) Outlet OD(mm)                  Remarks
25-02G1  34.8*26.9*36            10.2               7                 Outelt and inlet have anti-slip strips
