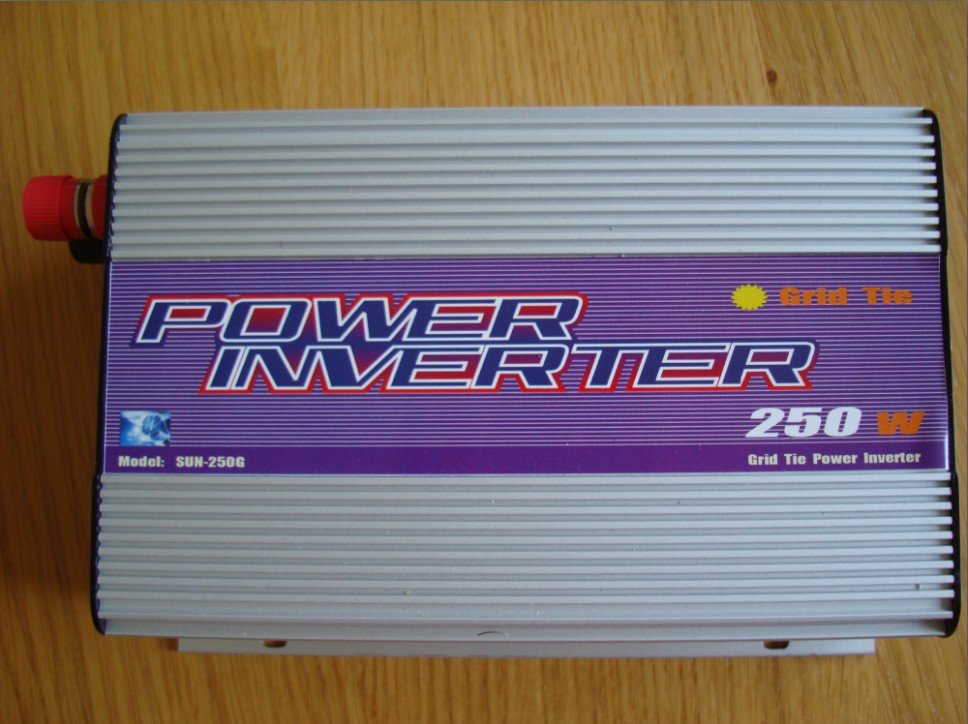

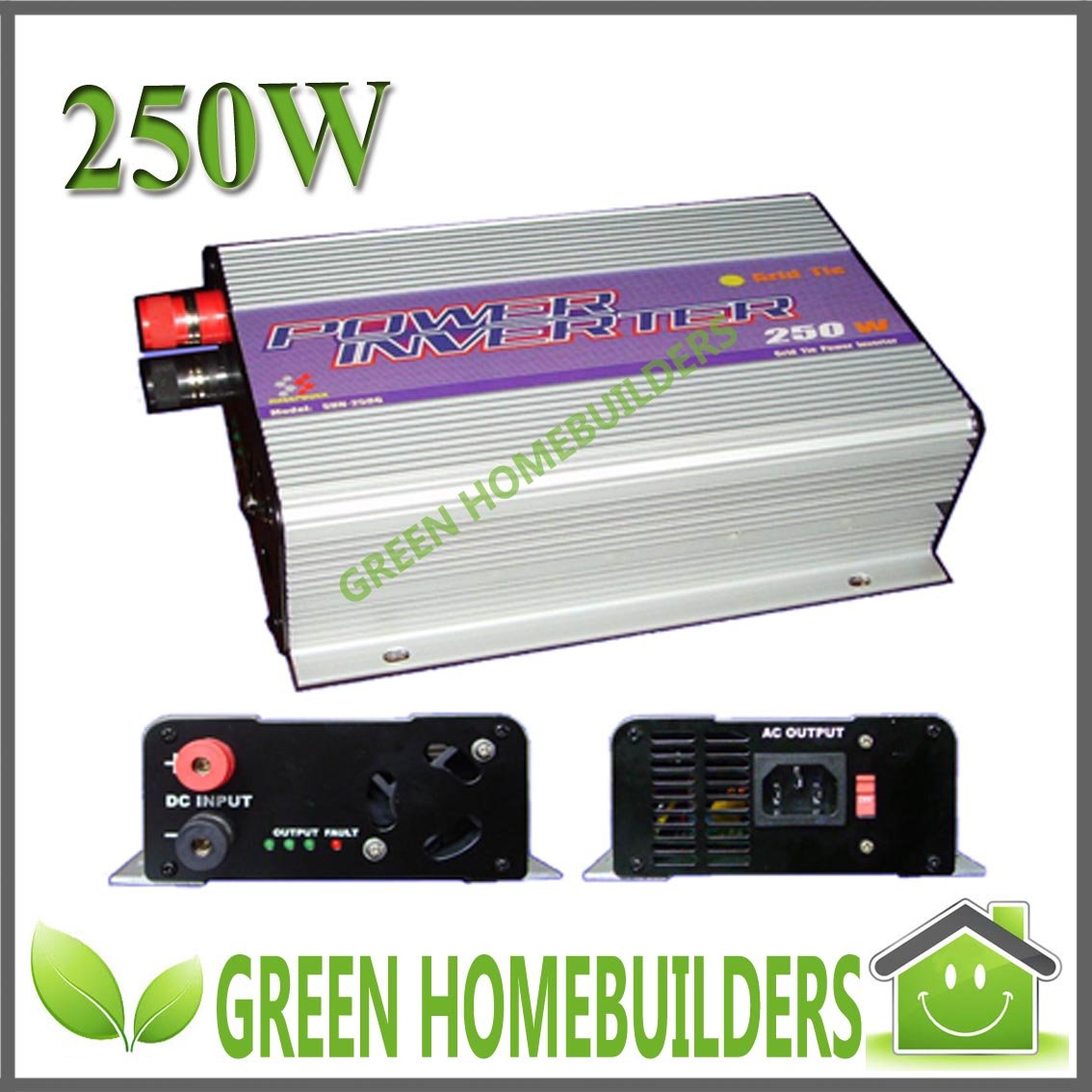

250W Solar Grid Tie Power DC/AC Inverter,optional DC input range 10.8V-30V/14-28V/22-60V,Low cost and easy installation
SGPV can be stackable, and all SGPVs are independent each other. The total power converting to the grid is the total power of all SGPVs. The installation of each SGPV is same. Connecting large quantity of SGPV to the grid, this will construct high-power grid-tie system.
NTRODUCTION: ‘SGPV’ (Small Grid Tie Photovoltaic System)
The only plug and play small grid tie photovoltaic system
The stackable small grid tie photovoltaic system
There are many advantages of SGPV compare with the traditional grid tie system.
1. Low cost and easy installation - SGPV can make full use of all types of buildings’ surface that face to the sun in the city as well as fast and easy installation of solar modules and grid tie inverter. It's very low maintenance costs.
2. Free combination - SGPV can be used as a separate grid tie system and can be setup as a large solar array with many of them. The quantity of SGPV in the array is just according to your desire. If you are planning to install a grid-tie PV system, in a general way, the solar array and inverter need to be carefully matched to ensure that the inverter’s voltage and power limits are not exceeded. When you want to increase more solar panels, and if the total power of the solar panels exceeds the allocation grid inverter, it is necessary to increase the cost of a grid inverter.
3. Combination of SGPV does not interact - The traditional solar grid tie system, they offer units ranging in high power output and these units are modular so you can have multiple units operating in parallel for large solar arrays. Although, the traditional grid inverter has MPPT feature (Maximum Power Point Tracking), but the maximum power point is according to the entire series in terms of solar panels array, if the performance of a piece of solar panels in the system, for some reason, such as leaves, bird droppings, dust, shadow, etc., degrades, the performance of the entire solar power system will decrease.
SGPV has no such disadvantage. If the performance of a piece of solar panels in the system degrades, this just effects this piece itself, will not affect other SGPV in the system.
4. Improving the efficiency of the entire solar power system – In traditional grid tie system, the solar panels are connected in series, so the MPPT of the inverter is according to the total panels in series, not to every panel, but there is difference between every panel, so not every panel is working at the maximum power, this will reduce the total power of these panel in series.
But SGPV has no such disadvantage. Because every inverter of SGPV has MPPT function, so every panel is working at the maximum power, this will increase the efficiency of the entire system.
5. Low power consumption – Most of the parts in the small grid-tie inverter are digital ICs and low power MCU, so the power consumption of it is low, though the quantity of grid tie inverters is increased, but this will not increase the power consumption of the entire system.

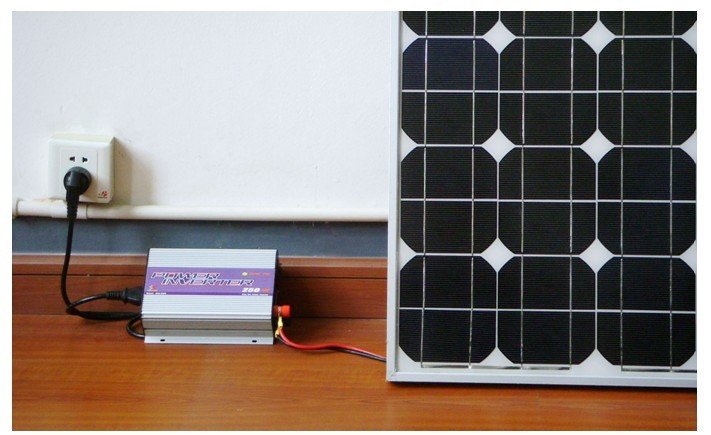

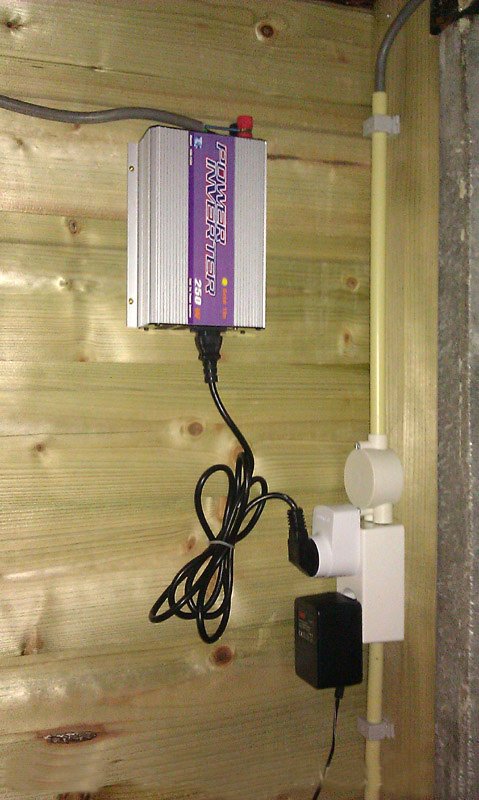

The individual system of SGPV is shown in Figure 1. Installing the solar panel of the SGPV at a suitable location that sunshine can irradiate on it, connecting the cables of the solar panel to the DC input terminals of the small grid tie inverter of the SGPV, inserting the plug of the inverter into the socket of the home grid. After this, when the sun shines, the SGPV will convert the solar energy to the home grid.
Normal AC Output Power
Maximum AC Output Power
AC Output Voltage Range
Switch is at 230V Position
190V ~ 260V
Switch is at 115V Position
90V ~ 130V
AC Output Frequency Range
46Hz ~ 65Hz
Total Harmonic Distortion(THD)
DC Input Voltage Range (Optional)
10.8V~30V ;14V ~ 28V;22V~60V
Peak Inverter Efficiency
Standby Power consumption
Output Current Waveform
Over Current Protection
Over Temperature Protection
Reverse Polarity Protection
Operating Temperature Range
-10 0C ~ 45 0C
