Remote Control Switch System Description:
Auto door, window, lifting equipment, entrance access, up and down controller, alarm system industrial control and security etc. The switch can compatible 2262 /2260/1527/2240 etc chip and several code wireless remote control. So it can meet someone need of choosing the wireless remote control as they like to work with it .
The 2 channel wireless remote control switch with 2 Relays. It can make the equipment turn or reverse .on/off and so on come true. The volume is small and the performance is stable and reliable ,high receive sensitivity.
Jog/Non-Latched /Momentary: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch(receiver) need one buttons remote control (transmitter )
Self -lock/Self-Latched/Toggle : press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch(receiver) need one buttons remote control (transmitter)
Inter-lock /Latched: press A button 1ch is working/ON ,press B button 1ch is stop/OFF 2CH is ON . ( 2 channel switch( receiver )need 2 buttons remote control (transmitter )
Please notice that :
here is the 2CH receiver and 2 buttons transmitter /remote control .you can choose the all the working way that you can choose ,
Please tell us the working way that you want after you buy it , if you are not the professional person, we would set the working way as your requirement before we ship .if you have't tell us we will ship to by to make it at the Self-Lock/Self-Latched/Toggle ,you can change it when you get it .
Learning and remove method
1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control ,the indicator flash 2 times and off .it mean you learn it successfully .
2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control
3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off , it means the information that you keep have been removed successfully .
| || |
| ||315/433MHz can be choose, if is has been make work together you do not have to care about the frequency. |

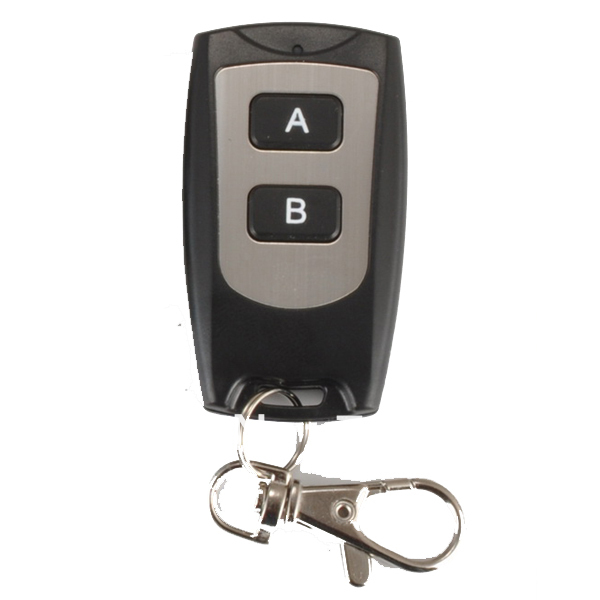

| ||Remote control transmitter |
| || |
| ||58 x 39 x 14mm / 2.29 x 1.54 x 0.55in(L x W x H) |
Package Contains :
- 4 x transmitter
- 1 x receiver (include cover)
