Product Description

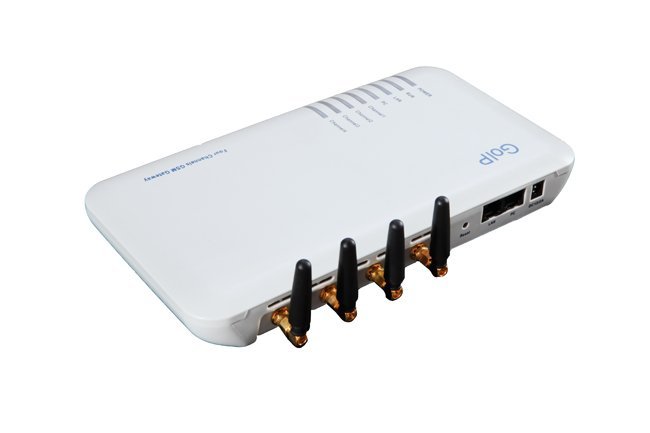

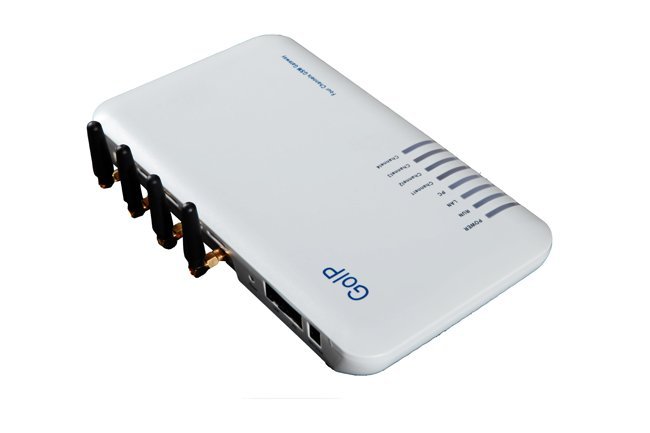

4 SIM Card VoIP GSM Gateway with 4 SIM Cards GOIP-4
4 ports GSM GoIP Gateway,Unlocked phone Description
The 4 channels GSM VoIP gateway is a 4 SIM Card Broadband Phone Gateway that had been developed by SKYLINE LTD. GOIP_4 SIM Card Broadband Phone Gateway is a new product that connect the GSM and the VOIPseamlessly. To GOIP_4 what is installed on the Mobile SIM Card, you register the GSM telephone on the VOIP Softswitch.SIP and H.323 agreement are built in the GOIP_4 and configured flexible. Caller ID be seen by using SIP. Flexible routing meet the need of all kinds of call forwarding; even more special is that GOIP_4 support multi-device group, it be easily combined into arbitrary number of channels of Large Gateway Group.
Key Features
- Multiple GoIP4 grouping mode
- Provide four cellular channels for IP-PBX
- Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
- Single or Multiple Server Registrations
- Two 10/100 Ethernet circuits connect to the LAN and an additional device
- GSM module for making GSM calls
- Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
- VLAN and QoS support
- NAT Transversal and Router functions
- Voice prompts, HTTP Web, Auto Provision support for configuration and updates
- Highly stable embedded Linux operating system in high performance ARM 9 Processor
|
Basic Features
- LEDs for Power, Ready, Status, WAN, PC, GSM
- Call forward from GSM to VoIP and VoIP to GSM
- Dial in mode or dial out mode only
- Dial Plan
- Password protection for both GSM dial in or dial out
- Retransmit GSM Caller ID to VoIP terminal
|
Enhanced Features
- Dynamic selection of codec
- Advanced jitter buffer
- Automatic traversal of NAT and firewall
- VLAN / Qos
- Router
- Echo cancellation for Speakerphone
- Comfort noise CNG)
- Voice activity detection (VAD)
- Auto provisioning (requires auto provisioning server)
- On line firmware upgrade
- Multi-language support: English and Chinese
|
Hardware Specifications
- Processor: ARM9E 133MHz
- DSP: VPDSP101 196MHz
- Memory: RAM 16MB/ Flash 4MB
- GSM Module: Type: 850MHz, 900MHz, 1800MHz, 1900MHz
- Power: Input AC100V ~ 240V, output DC12V/2A +-10%
- Power consumption: 12W maximum
- Network card: 100/10Base-T x2
- LED: Operation and lines light
- GSM Passway:four
- Operating temperature: 10°C to 40°C (32°F to 104°F)
- Storage temperature: 0°C to 50°C (32°F to 122°F)
- Working Humidity: 40% ~ 90% Not congealed
- Weight: 450 g (1 lb) (Including AC/DC Adapter)
- Warranty: one year
|
Supported Standards
- ITU: H.323 V4, H.225, H.235, H.245, H.450
- RFC 1889 - RTP/RTCP
- RFC 2327 SDP
- RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
- RFC 2976 SIP INFO Method
- RFC 3261 SIP
- RFC 3264 Offer/Answer model with SDP
- RFC 3515 SIP REFER Method
- RFC 3842 A Message Summary and Message Waiting Indicator
- RFC 3489 Simple Traversal of User Datagram Protocol (UDP) Through Network Address Translators (NATs)
- RFC 3891 SIP Replaces Header
- RFC 3892 SIP Referred-By Mechanism
- draft-ietf-sipping-cc-transfer-04 Session Initiation Protocol Call Control - Transfer
- Codec: G.711 (A/µ law), G.729A/B, G.723.1
- DTMF: RFC 2833, In-band DTMF, SIP INFO
|
Example:
peer to peer:it is a new function that you use our voip without platform,what is more,it is free roaming for international call.you just pay the local call
ModelS:
Common function:
1 PSTN to VoIP
Description:using the GoIP to connect with VoIP
2 VoIP to PSTN
Description: using the GoIP to connect with PSTN
3 Calling forward
Description:If you are in china but your main business is in Malaysia, you only put a Malaysia SIM card into the GoIP.In this condition,all calling the SIM number connect your Phone number in China directly.

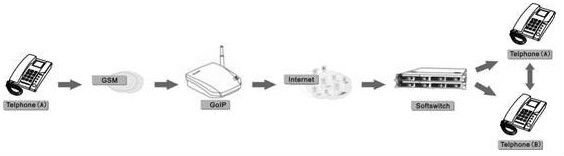

4 calling back
Description:When you are using the telephone, and you are want to get preferential from VoIP Phone anytime and anywhere.You just call the SIM card number which in GoIP,the calling number would send to Server by GoIP,then the server receive the calling number and establish the new calling.Then you will receive the new calling,you just accept the calling,Now you are calling with your customer by server
