Product Description












Product Description
* Wide frequency range 400-470
Professional machine rare whole paragraph broadband, coupled with the vast majority of machines to talk to the market, compatibility high.
* LED flashlight
Humane and practical design, but fit the actual use of the environment.
* Mute analog or digital mute (CTCSS / DCS)
Dual mute audio settings, to effectively prevent other radio signals, players and other user interference, in order to achieve the best use of results.
* FM radio available for leisure
* Voice prompt in English
Professional female voice channel reported, the operation more convenient, the use of more intimate.
SPECIFICATION
Frequency range 400-470MHZ
Rated voltage DC3.7V (rechargeable lithium-ion battery)
Memory channels 16 channels
Antenna impedance 50 ;
Work the same frequency or different frequency simplex simplex
FM mode-line access required to write the computer to write the frequency band
Size 97mm × 57mm × 30mm
Transmitter:
Output Power 3W
Maximum frequency deviation (wide / narrow) <5K / <2.5KHz
Spurious radiation <7uW
Pre-emphasis feature 6dB / octave increments every
Emission current ≤ 1.3A
Modulation sensitivity of 12mV
Modulation Distortion ≤ 5%
Receiving part:
Reference Sensitivity-12dBm (12dB SINAD)
Modulation receive broadband 5KHz
0.3W audio power
Audio Distortion <10%
Obstruction ≥ 85dB
Intermodulation (wide / narrow) ≥ 60dB ≥ 55dB
Spurious Rejection ≥ 65dB
PACKAGE LIST

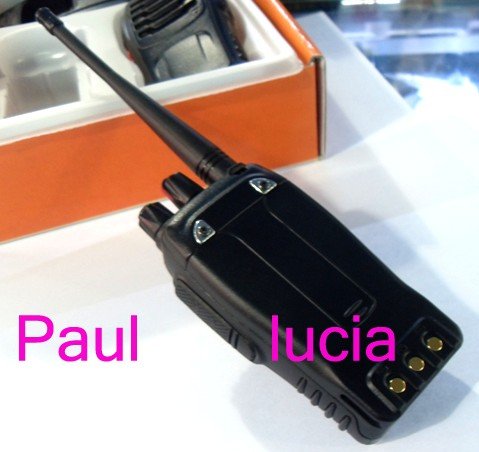

One Hnadheld unit
One antenna
One clip
One 1500MAH lithium battery
One charger
One manual
