Product Description

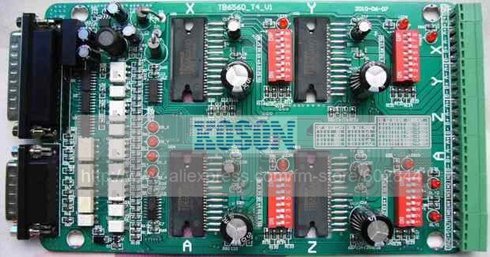

Aluminum case 4 Axis CNC Router 3.5A TB6560 stepper motor driver
2. Use the new chips imported Toshiba TB6560AHQ
Product parameters:

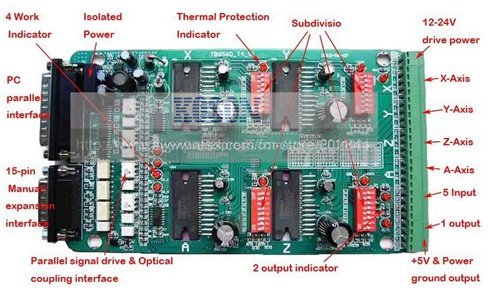

1. Very easy to use, all of use are marked on the board

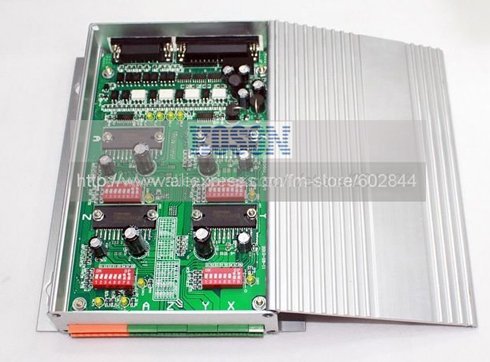

3. With large aluminum heat sink housing to ensure good heat dissipation
4. Input signal high-speed optocoupler isolation, guarantee not losing steps
5. With automatic semi-flow feature, and adjustable semi-flow mode, semi-flow of current is also adjustable, with multiple semi-flow model and semi-flow current setting function
6. Attenuation model adjusted for all the motors can be locked when no noise
Rated Voltage: DC 12V-36V
Maximum current: 3.5A
Adjustable operating current (Current):
Operating current can be set to a variety of modes, relative to the actual operation of the maximum current can be set to the maximum current the current 20%, 50%, 75%, 100%
Subdivision adjustable (Mode):
1,2,8,16
Attenuation adjustable (Decay):
0 %---- no decay mode
--- 25% of the slow decay mode
--- 50% of the normal mode
100% - Fast Decay mode
----- Decay mode of regulation by different motors to match impedance, thereby eliminating the noise when locked stepper motor and motor movement in the shake.

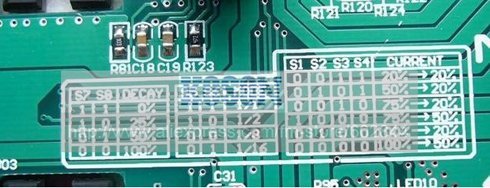

Automatic half current setting (Torque Settings):
%---- No pulse when the current 20 to normal operating current of 20%
50 %---- no pulse current 50% to normal operating current
75 %---- no pulse current 75% to normal operating current
100% --- no pulse when the current 100% to normal operating current
Can be achieved by S1, S2, S3, S4 of the adjustment will lock the motor running current size and current size of the matching options to do with automatic half current function, half the current size of the adjustable flow can be a very good compatibility with different applications.

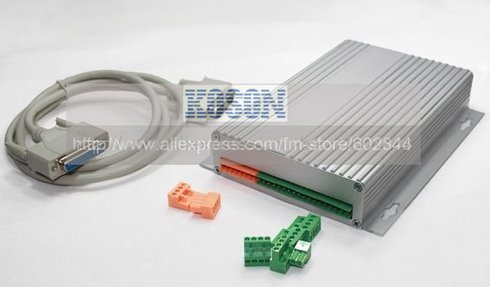

packing list:
1 * 3Axis TB6560 Stepper Motor Driver 7 * Wire connectors 1 * Cable
