Introduction:

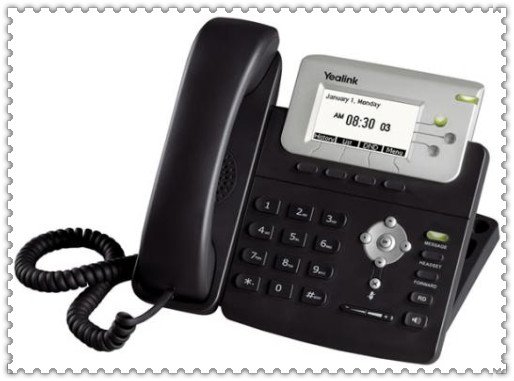

Yealink SIP-T22P features intuitive user interface and enhanced functionality which make it easy for people to interact and maximize productivity.
With TI leading VoIP voice engine, it enables enhanced high-fidelity audio,outsourced management options, flexible deployment and third-party communications applications.
As a cost effective IP solution, it helps users to streamline business processes, delivering a powerful and consistent communications experience for small and large offices environment.

Highlights:
3 Lines
It supports up to 3 VoIP accounts, each with a standalone configuration.
HD Voice Quality
It supports advanced wideband voice codec G.722 and full-duplex hands-free speakerphone with enhanced AEC, delivering superior voice clarity.
Business Professional Phone
3 programmable function keys and 4 soft keys, XML Phonebook, which increase working efficiency.
T22P is the ideal IP business phone to equip the office for reliable, intensive telephone based business without incurring extravagant expense. Productivity driven, this best selling mid range phone is a robust, hard working favourite.

Network Features
SIP v1(RFC2543), v2(RFC3261)
3 User accounts
NAT Transverse: STUN mode
IP Assignment: Static/DHCP/PPPoE
In-Band DTMF, Out-of-Band DTMF, SIPInfo
Proxy mode and Peer-to-peer SIP linkmode
TFTP/DHCP/PPPoE client
Telnet/HTTP server
DNS client
NAT/DHCP server
Support VLAN, QoS
PoE(powered over Ethernet)

Voice Features
Wideband Codec: G.722, voice
spectrum between 50-7000Hz
Narrowband Codecs: G.711, G.726,
G.723.1/iLBC, G.729AB and GSM
VAD, CNG, AEC, PLC, AJB, AGC
Full-duplex hands-free speakerphone
Telephony Features
Call Hold, Call Waiting, Call Transfer, Call Forward
Caller ID, Call List, DND, Redial, Flash
3-way Conference, Speed Dial
Personal Ring Tone, Voicemail
Volume Adjustment, Mute, Speakerphone

IP PBX System Integration
Dial Plan, Dial-now, Paging
Downloadable enterprise phonebook
Call Park, Call Pickup, Distinctive Ringtone
Auto-answer, intercom
Config, Upgrade and Usage
Language Customization Support
Firmware Upgrade: TFTP/Console/Autoprovision
Auto-provision: TR069 Optional
Direct IP call without SIP proxy
Dial number via SIP server
Dial URL via SIP server
Security
Secure RTP
Digest authentication using MD5/MD5-sess
Secure configuration file via AES encryption

Physical Features
TI Titan Chipset
LCD: 132x64 with blue backlit
3 programmable keys, 4 text-sensitive keys
23 hard keys, 2 indication LEDs
Headset port: RJ9
Network Interface: 2xRJ45 10/100Mports
Dimension: 275 x 220 x105 mm
Net Weight: 1.22 kg
Power adapter: Input: AC 100~240V
Output: DC 5V/1A
Operating humidity: 10~95%
Storage temperature: up to 60°c
Please note what kind of power adapter do you need, thanks a lot!
