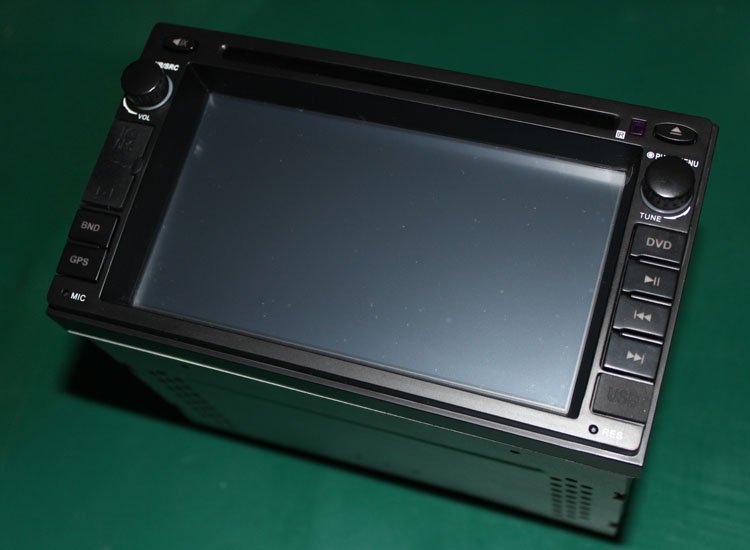

Car DVD for Tiida/Livina/Qashqai/ Sylphy/Geniss/X-trail with GPS+TV(Optional)+RDS+IPOD+USB+SD

Product Description

Car DVD for NISSAN GENISS

This item with---

Free 2GB SD Card.

Free IPOD.

Free RDS.

GPS,Bluetooth are basic functions.

Connectioncables special for this car.

If needing Analog TV,Please select Analog TV in the option list.

If needing DigitalDVB-T TV,Please select DVB-T in the option list.

If needing Digital ISDB-T TV,Pls select ISDB-T in the option

SIZE:

===========================

Main Features:

800*480 HD digital TFT,.In-dash Motorized front panel

DVD/DVD+-R/DVD+-RW/MP3/MP4/DIVX/XVID/CD/CD-RW

/VCD/SVCD support

Built-in GPS navigation function

Interface : IPOD,USB, SD slot, A/V input, A/V output

Built-in high sensitive AM /FM tuner,RDS

Built-in Bluetooth: support hand-free call system

Buit-in 4x45W hi-fi amplifier

Support reverse camera input

Support original steering wheel button control

Treble/Bass/Balance/Fader/Volume controlamera input

DVB-T/ISDB-T or Analog TV

Detailed information--------

Screen:
Screen Size: 6.2 inch digital screen.

Resolution: 800*480

Touch Screen Function

Image Brightness/Contrast/Saturation adjustable

Amplifier parameters:
Testing voltage 13.8V

Maximum power output: 4*45w

Speaker impedance 4 ohm (4-8 ohm acceptable)

Input and Output:
1*Radio Antenna input

1*TV Antenna Input

1*IPOD Input

RCA Video Output*2/Black Sight Video Input/AUX Video Input

RCA Audio FR/FL/RR/RL output*2 and AUX Audio R/L Input

Radio:
FM Frequency: 87.5-108 MHZ (Europe), Increment: 0.05Mhz

AM Frequency: 522-1620khz, Increment: 9KHZ.

Can select Europe/USA/Japan/Russia radio frequency

Tune method PLL frequency complex tune

Storage quantity FM radio: 18channels, AM radio:12 channels

Search method Automatic/manual

Built-in RDS Radio Receiver Function (Optional)

TV:
Built-in Analog Television or DVB-T Digital TV(Optional)

• Analog Television:

  Input Frequency range: 48.25MHz-863.25MHz

True-synchronous vision IF demodulator (PLL)

Demodulated video output, AF sound output

• DVB-T or ISDB-T:

  Fully DVB-T or ISDB-T /SD MPEG-2 compliant, FTA model

Input Frequency Range: 174 MHz-858MHz

TV system: PAL/NTSC/SECAM auto-conversion

Input impedance: 75ohm

USB/SD:
Built-in USB Port, SD/MMC Card Slot

USB Port: Can support USB flash device or MP3 player with maximum 16Gcompatibility

Can’t support portable hard disk

SD Card Port: Can support SDHC Card of maximum 16G compatibility

IPOD:

Support iPod Input (when iPod is connected, it can be charged)

Support iPod Model: iPod CLASSIC/iPod NANO/iPod Touch/Phone

(Notice: it doesn’t support I-phone 3G/Iphone 3GS)

Bluetooth:

Built-in Microphone in the control panel

Support Bluetooth Music Play Function

Attention: This function can be only used with the mobile phone which supports the Blue Audio Output.

GPS Navigation System:
Operation system: WINCE 5.0 CORE

Support map: Horizon, COSMIC, IGO, Route66, SYGIC, N-drive.

CPU: Samsung ARM9 S3C2416XH-40

EMS Memory: 128/256MB NAND Flash

Display output: ATHEROS-AR1511

EMS Memory: 128MB DDR2 SDRAM

Storage device: 128/256MB NAND Flash

Display output: CVBS, RGB, @YPb-Pr output (Resolution: 800(RGB)*480pixes)

GPS Chipset: ATHEROS-AR1511, Frequency: 1.575MMZ, Channel Number. 12 channels

Navigation path: Storage Card, Number Port=COM2, baud rate=9600

Hot start time: Average 3s, Warm Start time: Average 38s, Cold start time: Average 45s

Accessories:
1*English User’s Manual

1*Remote Controller.

1*Power plus Speaker cable

1*AV Cable

1*USD Cable

1*GPS Antenna

1*iPod Cable (Optional)

1*Stylus

Other necessary Accessories.
Packing and Shipping:

4PCS/CTN
Carton size:59.5*33*46cm
Unit packing(G.W):5.0kg
Export carton(G.W):23kg
20'/40'/40'HQ:1250/2500/3050pcs

------------------------------------------------

NOTES:

Every buyer should know about the their Country's Customs. we are experienced seller, will do best to prevent any troubles in Customs, but if your country's Customs are very hard, the responsibilityies are not on our party if the goods are blocked by your Country's Customs.

Return/Warranty Policy:

• All the items we're selling are brand new and include a full 1year warranty and offer full suport.
• All the items sold have been tested before dispatch.
• If you received any faulty or damaged item, please keep all the package materials, take photos and contact us immediately via email for claims against the courier. Any faulty items must be notified within 3 days for the delivery.
• In case of returning, products, please email us for confirmation.The buyer should be responsible for all the returning shipping cost.
• The items warranty become void:

1. If damaged is caused by undue wear or tear, misused, dirt, improper installation or operation, neglect accident.
2. If the warranty seal is removed or damaged.
3. If the item was opened, removed any parts of the item or repaired by unauthorized person.

Payment:

you can pay by Paypal, bank transfer, Money book, VISA, MoneyCard and so on. If have any doubt, please feel free to contact us.

Shipment:

• EMS usually takes 6-15days, more or less. If for remote region, it will be a little longer time. If for buyer's Customs reason, It will be a longer time.
• DHL,UPS,Fedex usually take 4-6days, more or less. If for remote region, it will be a little longer time. If for buyer's Customs reason, It will be a longer time.
• HongKong Post usually takes 11-25days, more or less. If for remote region, it will be a little longer time. If for buyer's Customs reason, It will be a longer time.

We usually ship the buyer's item in a lower value, in order to avoid the buyer's tax. However, the tax is determined by buyer's customs, not by us. Different country have differnt tax rate. So if any tax, the buyer should undertake.

If due to the buyer's reason including" refuse to sign for the package" or "refuse to pay the tax" or the buyer's country's post reason and so on. The buyer have to undertake all the lose. We are in charge of the responsibility keep the goods left China smoothly, once the goods leave China, then the buyer will be in charge of all the responsibility.
