Product Description
DLE55 50cc fuel engine for RC airplane free shipping
BEYOND YOUR DREAM

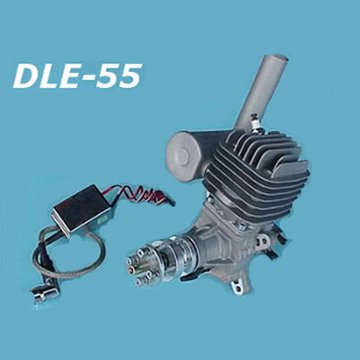

DLE55 50CC RC Aircraft Gas Engine is specially designed for the model airplane. With large horsepower and excellent stabilization, this engine is a kind of light and ideal power equipment for the TOC model airplane. DLE55 55cc engine, Lighter and with more power! Static thrust: 13.6kg
( 30 pounds )
Includes |
- 1 X DL55cc engine
- Version 2.0 Electronic (Auto Advancing) Ignition and Spiral Cable Wraps
- Walbro Pump Carburettor and Composite Throttle Arm Extension
- Spark Plug and Spark Plug Cap Grounding Spring
- Muffler, Gasket and Bolts
- Machined Engine Mounting Standoffs(68mm long) and Bolts
- User Manual
|
Performance |
- Output Power : 5.5 HP at 7500 rpm
- Idle Speed: 1350 rpm
- Maximum Speed: 9000 rpm
- Static Thrust: 14.2kg at 100M (328ft) Altitude, 12.5kg at 1800M (5900ft) Altitude
|
Dimensions |
- Displacement: 55.6 cc
- Bore and Stroke: 45 x 35 mm
- Compression Ratio: 7.6:1
|
Weight |
- Engine: 1310g
- Exhaust: 100g
- Ignition: 120g
|
Requirement |
- Fuel: 2C regular gasoline mixed 30:1-45:1(Mineral based for break in, synthetic thereafter)
- Propeller: 22x8; 22x10; 23x8; 23x10
- Ignition Battery: 4.8 to 6.0 volts(max) >= 1200Mah
- Spark plug: NGK CM6 or Equivalent
- Spark plug gap: 0.018" to 0.020"
- Installation Torque: 7 to 8 ft-lbs
|
