Product Description

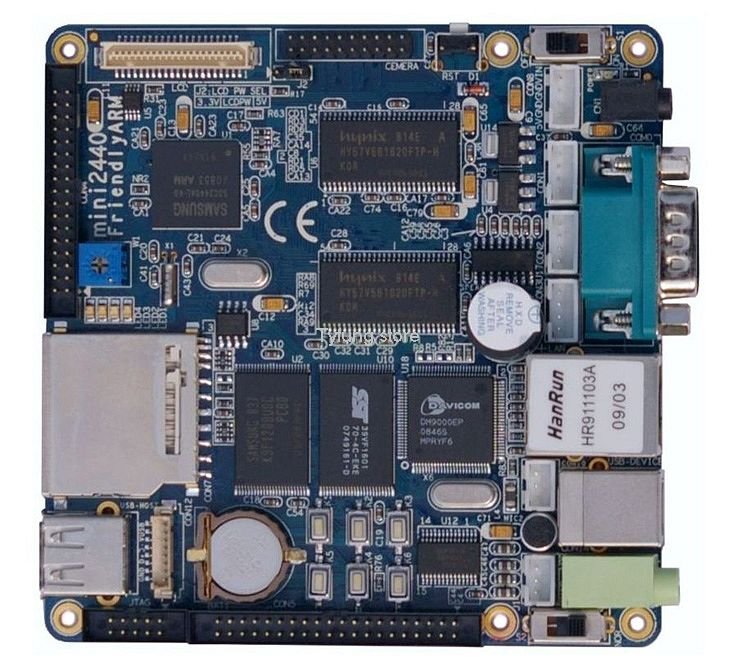

Mini2440 | S3C2440 ARM9 Board
FriendlyARM Mini 2440 SBC (Single-Board Computer) with 400 MHz S3C2440 ARM9 processor. The board measures 10 cm x 10 cm, ideal for learning about ARM systems.

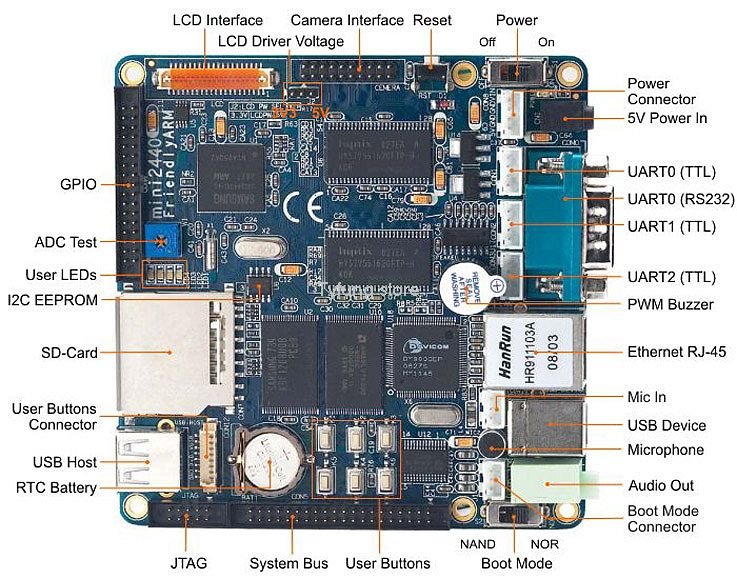

Specification
- Dimension: 100 x 100 mm
- CPU: 400 MHz Samsung S3C2440A ARM920T (max freq. 533 MHz)
- RAM: 64 MB SDRAM, 32 bit Bus
- Flash: 64 MB / 128 MB / 256 MB / 1GB NAND Flash and 2 MB NOR Flash with BIOS
- EEPROM: 1024 Byte (I2C)
- Ext. Memory: SD-Card socket
- Serial Ports: 1x DB9 connector (RS232), total: 3x serial port connectors
- USB: 1x USB-A Host 1.1, 1x USB-B Device 1.1
- Audio Output: 3.5 mm stereo jack
- Audio Input: Connector + Condenser microphone
- Ethernet: RJ-45 10/100M (DM9000)
- RTC: Real Time Clock with battery
- Beeper: PWM buzzer
- Camera: 20 pin Camera interface (2.0 mm)
- LCD Interface
- STN Displays
- TFT Displays

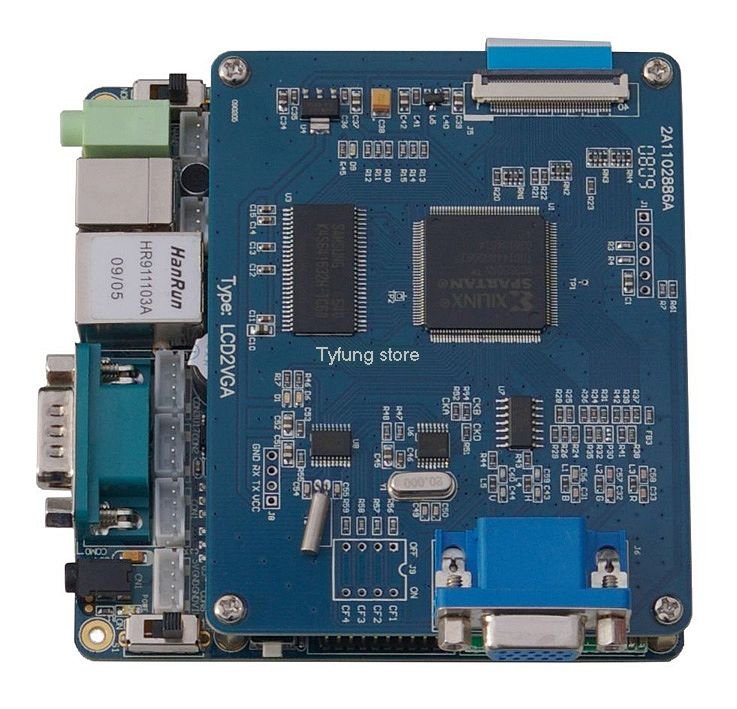

- 41 pin connector for FriendlyARM Displays (3.5" and 7") and VGA Board
- Touch Panel: 4 wire resistive
- User Inputs: 6x push buttons and 1x A/D pot
- User Outputs: 4x LEDs
- Expansion: 40 pin System Bus, 34 pin GPIO, 10 pin Buttons (2.0 mm)
- Debug: 10 pin JTAG (2.0 mm)
- Power: regulated 5V (DC-Plug: 1.35mm inner x 3.5mm outer diameter)
- Power Consumption: Mini2440: 0.3 A, Mini2440 + 3.5" LCD: 0.6 A, Mini2440 + 7" LCD: 1 A
- OS Support
- Windows CE 5 and 6
- Linux 2.6
- Android
Packing List:
1.mini2440 Learning Development Board 256M NandFlash (128M/256M/1GNandFlash optional)
2.Power adapter (+5 V)
3.DB9 directly connected serial Cable
4.Crossover cable
5.USB Cable
6.Summary JTAG small plates + JTAG download cable (available with H-JTAG debugging single-step simulation)

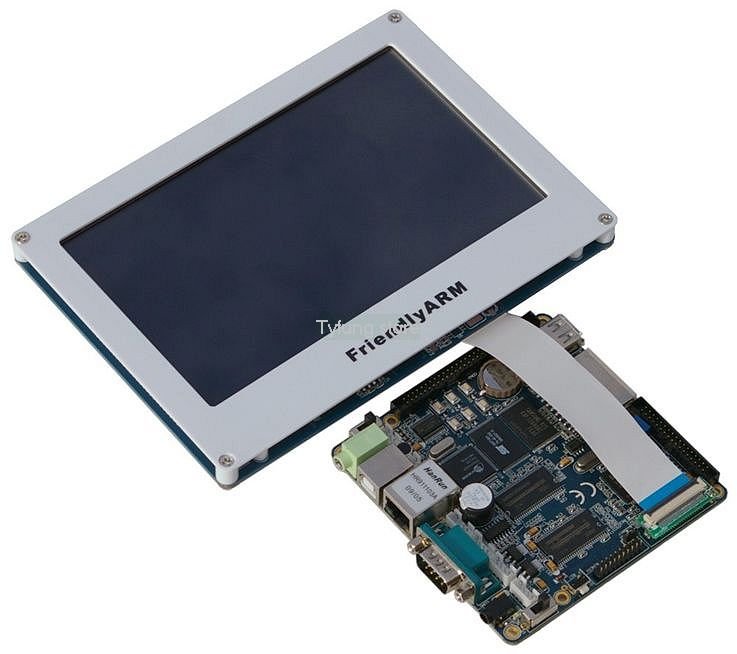

7.7-inch touch screen (with exquisite touch screen panel, presented the touch pen)
8.Development DVD
9.Beautifully packaged box
