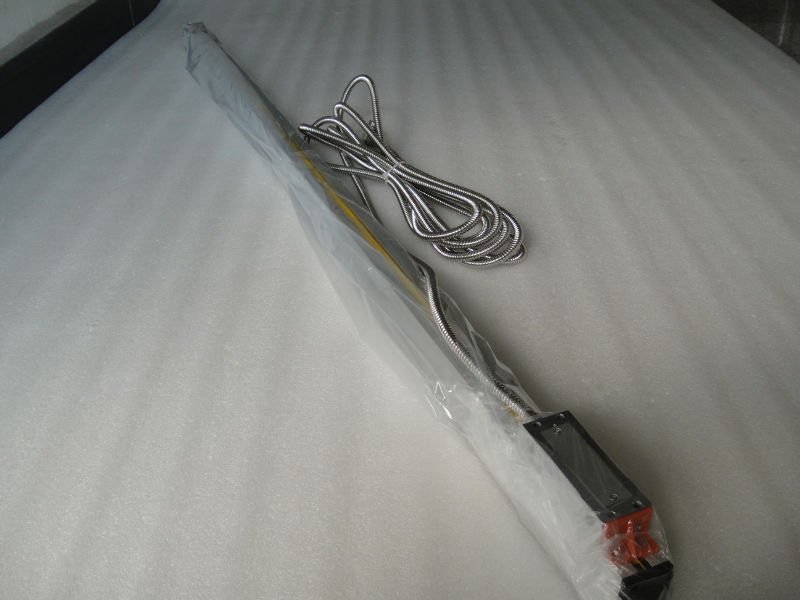

FREE SHIPPING Linear glass scale DC20 measuring length1001-1100mm
- Processing Time:
- Shiping out within 3 days
China (Mainland) (Sichuan)
Item specifics
- Place of Origin:
- Sichuan China (Mainland)
- is_customized:
- Yes
- Brand Name:
- DITRON
- Model Number:
- DC20
- outward:
- nice
- trial period:
- durable
- technology:
- The most advanced technology
- feature:
- easy to carry
- quality:
- reliable
- price:
- reasonable(discount for large order)
Product Description
Linear Scale
MODEL:DC10/DC11/DC20
Optical grating pitch:20um(0.020mm),10um(0.010mm)
Optical grating measurement systerm:
Transmission infrared optical measurement system,infrared wave length:880nm
Numberical reading head rolling systern :
DC10 DC11 vertical five bearing roller systerm DC20 45 five bearing roller systerm
Resolution :1um,5um
Maximum working speed:20m/min(1um) `60m/min(5um)
Output singnal :TTL,EIA-422-A(RS422),~1Vpp
feature:
Linear Scale when used in conjunction with our counter is designed for manual machine tools or other equipment having linear movements, for example cut off saws. Alternatively the scale output can be used for automatic positioning control of machine tools or similar equipment via CNC or PLC units.The scales may also be fitted to co-ordinate measurement or other measurement equipment used for high accuracy inspection & measurement. Our company is the earliest national professional producer of optical grating sensors in China and offers a comprehensive range of products. We are able to quote on special scales on request.
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 4.500kg
- Package Size:
- 130cm x 11cm x 13cm
