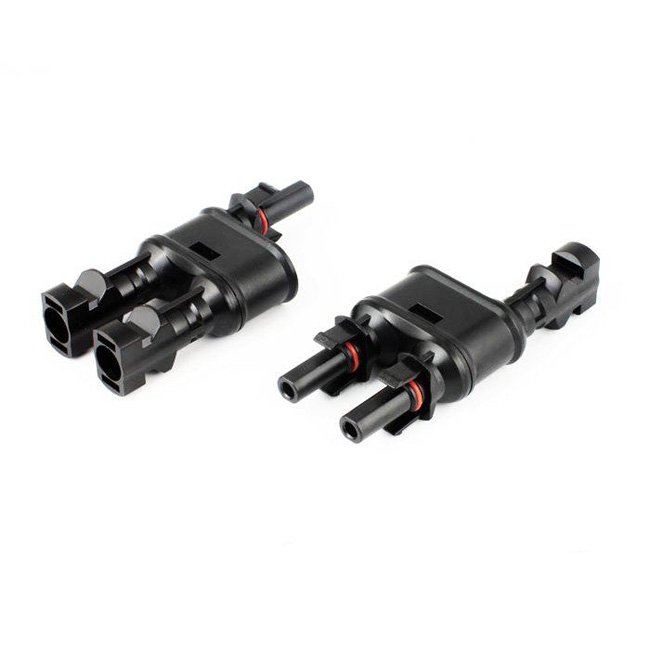

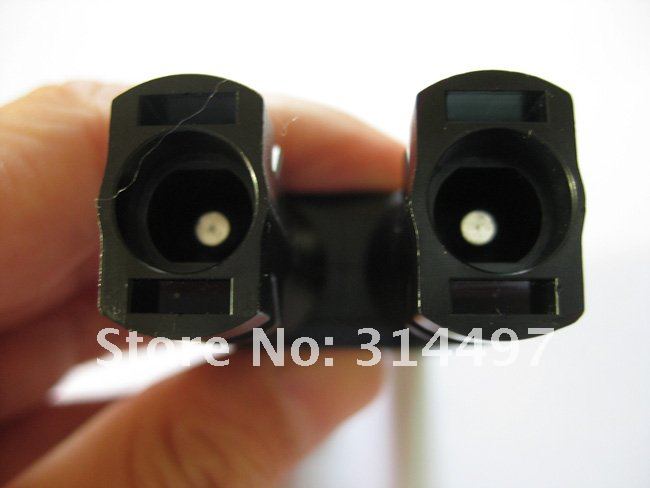

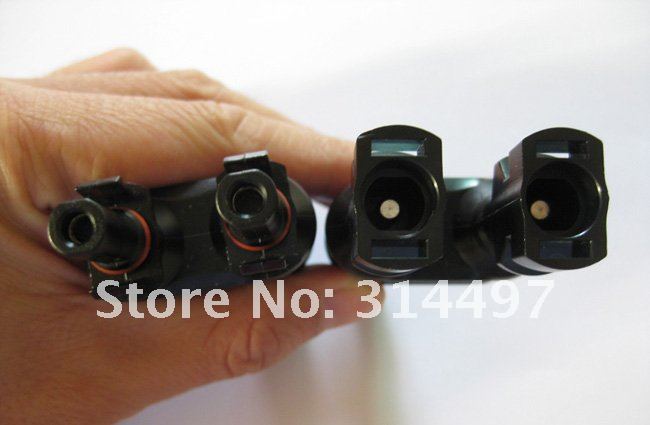

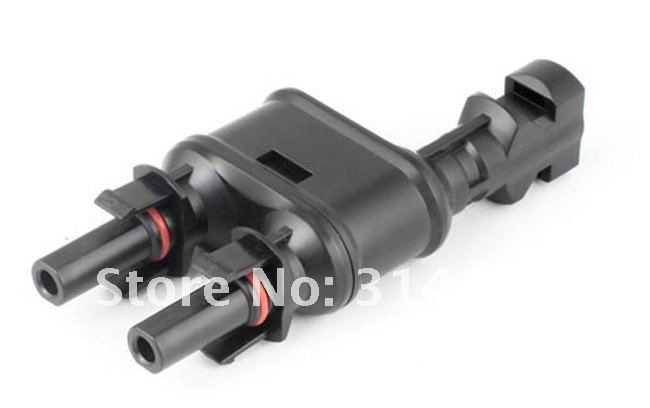

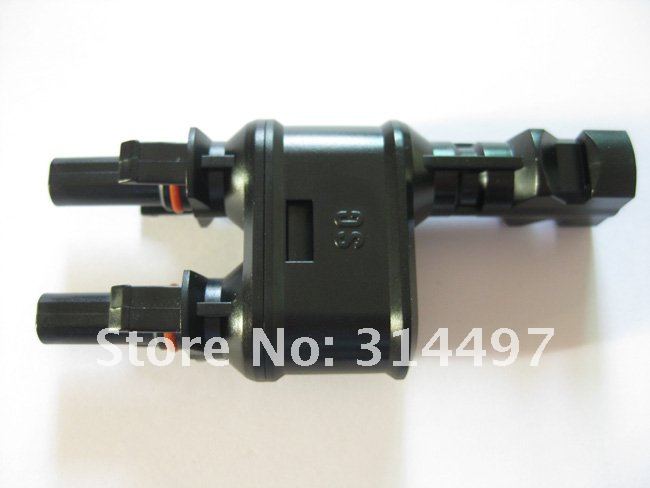

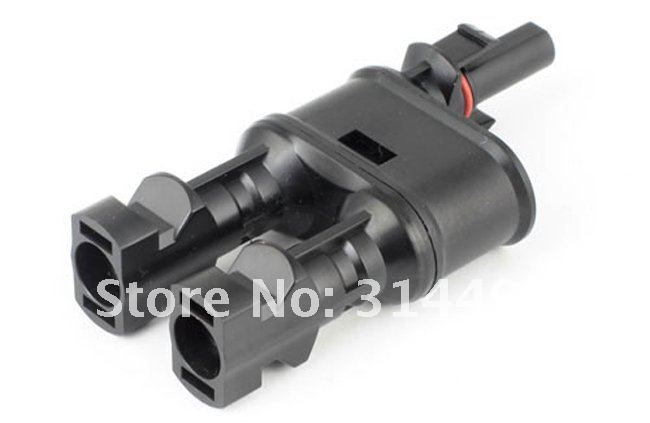

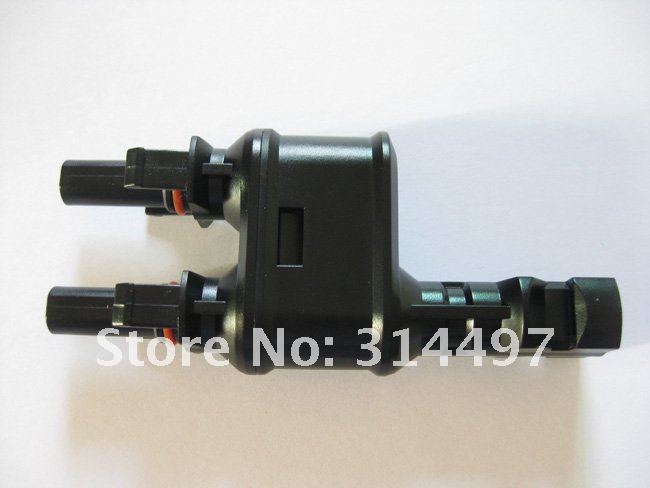

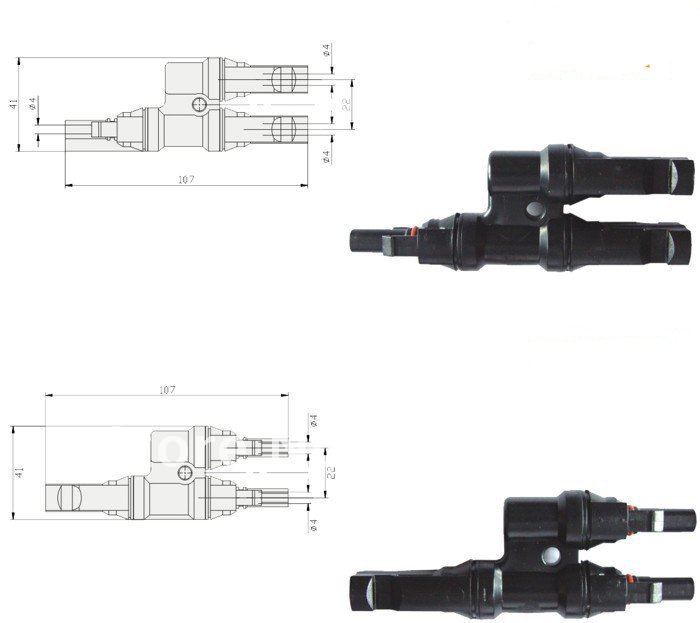

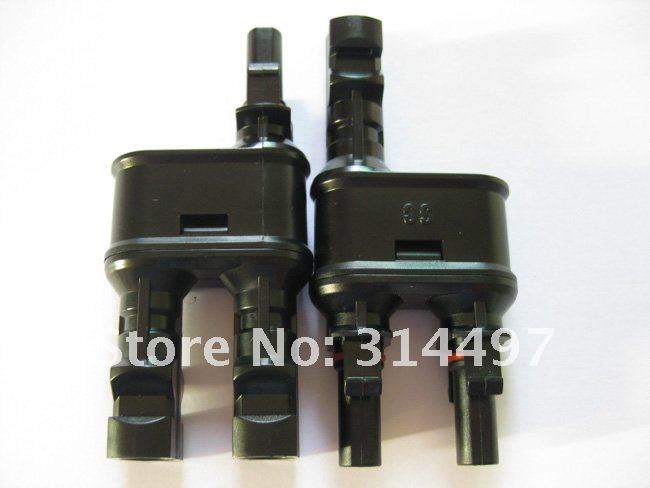

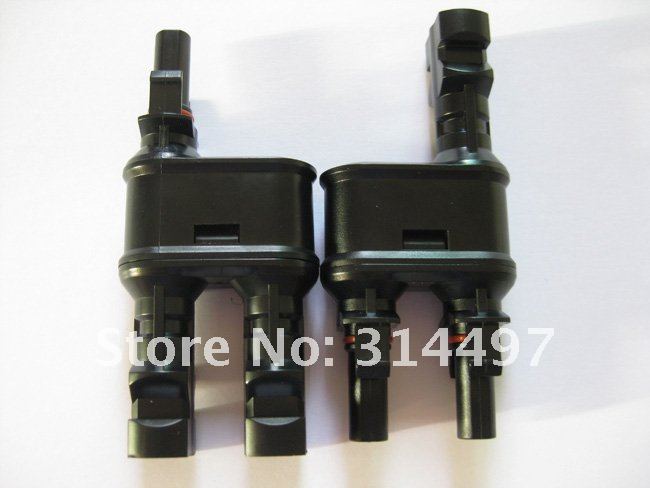

MC4 T Branch Connection
Solar Branch Use for Solar Panel

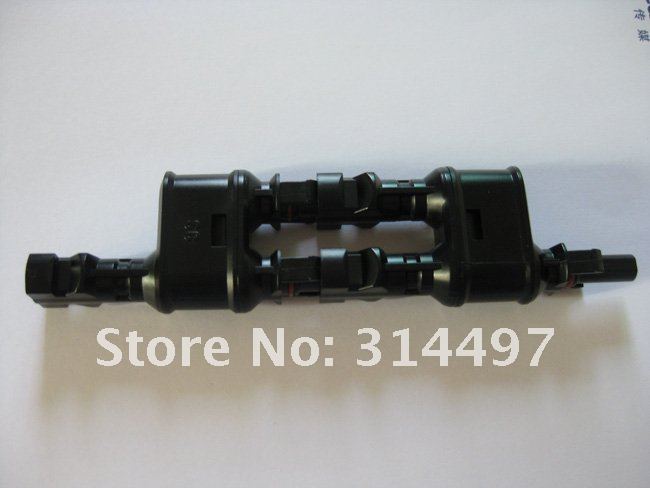

- Solar branch for safe and simple parallel or series-parallel connection of PV-modules.
- Due to highly robustness,UV-Resistance,the touch protection a high grade connection is guaranteed for many years.
- Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.
Housing color Black
Contacts Copper.tin plated
Rated current 30A
Rated voltage 1000V(TUV)600V(UL)
Test voltage 6KV(TUV50HZ,1min)
Contact resistance 0.4m
Degree of protection IP67
Temperature range -40 C~+90C
Flame class UL94-V0
Safety class II
Pin dimensions 4mm
