The series DVR is designed specially for security and defence field which is an outstanding digital surveillance product. This DVR introduces embedded LINUX operating system which is more stable. This DVR introduces standard H.264mp video compressed format and G.711A audio compressed format which insures the high quality image, low error coding ratio and single frame playing. It introduces TCP / IP network technology which achieves the strong network communication ability and telecommunication ability.
The series DVR can be used individually or online applied as a part of a safety surveillance network. With the professional network video surveillance software, it achieves the strong network communication ability and telecommunication ability. The series DVR can be applied in the bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy and so on.
The length of AV cables is optional, you can select 20M, 25M, 30M, 40M, 50M (0.2 USD / meter). Of course, you can choose a bundle of AV cable whose length is 400 meters, and we supply 8 sets of AV connectors. Please choose the cables according to your needs, and we will meet your demands, Thank you.
If you don't specify, we default the accessories.
- DVR Specifications:
- 8 channel DVR system
- NTSC / PAL
- Display resolution:
- NTSC: 720 x 480
- PAL: 720 x 576
- Main processor: High performance embedded microprocessor
- Operation system: Embedded LINUX operation system
- System resource: Synchronous multi-channel recording, Synchronous multi-channel sub-code stream, Synchronous multi-channel playback,Synchronous network operation
- Operation interface: 16 bit true color graphical menu interface, mouse operation supportive
- Display: 1 / 4 image display, 1 / 4 / 8 / 9 image display, 1 / 4 / 8 / 9 / 16 image display
- Video standard:
- PAL: 625 string, 50 f/s
- NTSC: 525 line, 60 f/s
- Video surveillance image quality: PAL, D1 (704 x 576), CIF (352 x 288)
- Video playback image quality: PAL, D1 (704 x 576), CIF (352 x 288)
- Video receording speed (D1 / HD1 / CIF / QCIF): PAL
- 100fps overall
- 200fps overall
- 400fps overall
- Compression: H.264mp
- Image control: 6 options
- Image motion: 396 (22 x 18) detection areas, multiple sensitivity
- Compression: G711A
- Bidirectional talk: Support
- Recording and playback:
- Recording mode: Manual, Alarm, Motion detect, Timing
- Local playback: 1ch playback, multiple channels playback
- Recording look-up mode: Time searching, calendar searching, affair searching, channel searching, information searching
- Storage and backup:
- Recording storage: Hard disk, Network
- Backup mode: Network, USB
- Hard disk capability for each channel: (Audio)28.8 Mbytes per hour, (Video)25 ~ 450 Mbytes per hour

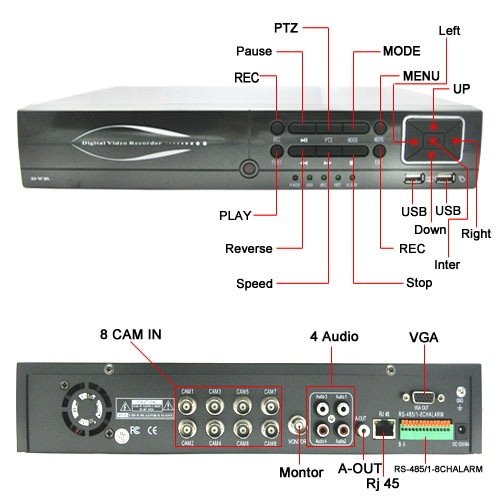

- Video input
- Video output
- Audio input
- Audio output
- Alarm input
- Alarm output
- Network port
- PTZ control port
- USB port
- Hard disk port
- Power supply: 12V / 4A external power supply
- Power comsume: 20W (without hard disk)
- Working temperature: 5 ~ 50 degrees Celsius
- Working humidity: 10% ~ 90%
- Air pressure: 86 ~ 106 kpa
- Installation: Frame installation
- Size ( L x W x H): 315 x 225 x 50 mm
- Surveillance Camera Specifications:
- Image Device: 1/3 Inch SONY CCD
- TV system:
- PAL: 500 x 582
- NTSC: 510 x 492
- Support Waterproof
- Minimum Illumination: 0Lux f=4mm
- Scan area: PAL- 5.18x4.19mm NTSC 4.69x3.45
- Horizontal Definition: 420TV Lines
- Angular Field of View: 52 deg
- Scan frequency:
- PAL: 50Hz
- NTSC: 60Hz
- Connection: RCA
- Power Adapter: DC 12V
- White Balance: Auto
- Incldued Camera Stand
- Recommended Max Range for Objects: 7 Meters at Night, 15 Meters at Day
- S/N Ratio: < 48dB
- Operation Temperature: -10 ~ 40 degrees Celsius
- Color: Silver
- Dimension: With Stand- 150 x 65 x 90mm
- Approve and Warranty
- Approved: CE / FCC
- After sales service: 1 year warranty
- 8 x Surveillance Cameras
- 8 x Power Adapters for Camera
- 8 x 30m Length AV Cable
- 1 x 500G HDD
- 1 x Power Adapter for DVR
- 1 x Remote Controller
- 1 x User Manual
- 1 x Drive Disk
- 8 x Screws
- 1 x Mouse
- 2 x AAA Battery
