Free Shipping wholesale Lowest Price High Resolution 0.008Lux Night Vision 520TVL Mini Hidden Camera
Seller Promise:

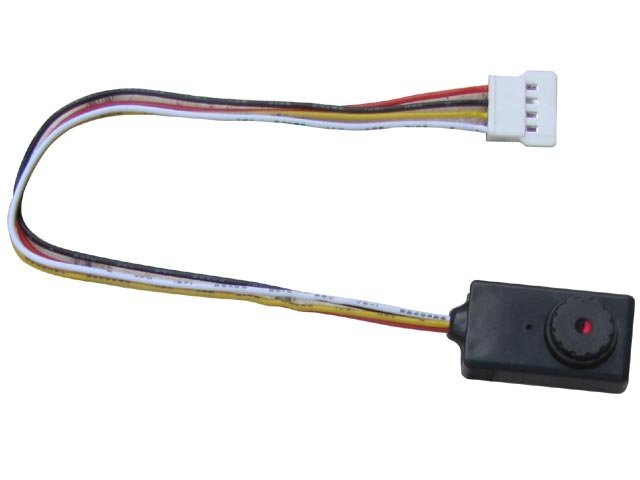

High Resolution 0.008Lux Night Vision 520TVL Mini Hidden Camera
|
PICK UP ELEMENT
|
Single chip 1/3 CMOS
|
|
|
SYSTEM
|
NTSC
|
PAL
|
|
NUMBER OF PIXEL
|
NTSC:656(H)×492(V)
|
PAL:786(H)×576(V)
|
|
SENSOR DIMENSION
|
4.75mm(H)×3.55mm(V)
|
|
|
HORIZONTAL RESOLUTION
|
Approximately 520TV Lines
|
|
|
SENSITIVITY
|
0.008Lux/F1.2
|
|
|
LENS & VIEW ANGLE
|
0.5mm F2.0 / 55°
|
|
|
S/N RATIO
|
48dB
|
|
|
AUTO GAIN CONTROL
|
OUT
|
|
|
WHITE BALANCE CONTROL
|
OUT
|
|
|
BACK LIGHT COMPENSATION
|
OUT
|
|
|
VIDEO OUT
|
1.0V p-p/75ohm
|
|
|
AUDIO OUT
|
1.0V p-p/1Kohm
|
|
|
SIZE (L x W x H)
|
22.5mm x 12mm x 10.5mm
|
|
|
WEIGHT
|
2g
|
|
|
WORK CURRENT
|
75mA
|
|
|
POWER REQUIREMENT
|
DC 3.6V-5V
|
|
|
OPERATING TEMPERATURE
|
- 10° C ~ +50°C ,less than 90% RH
|
|
|
Connection
|
PIN1à Red DC5V PIN2à Black GND PIN3à Yellow VIDEO OUT PIN4à White AUDIO OUT
|
|
