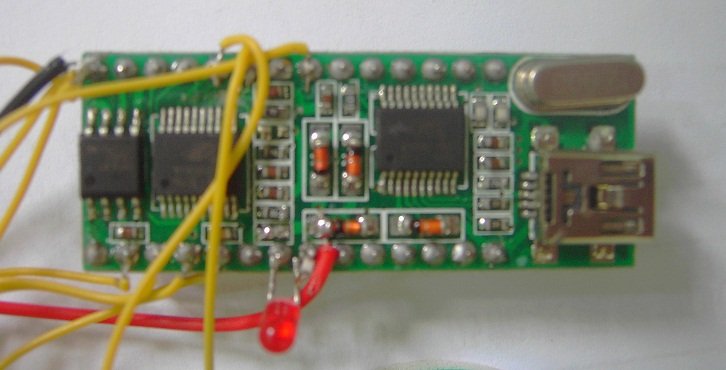

WT588D-U Reprogrammable USB Sound Module
1.download the sound files from PC by mini USB
2.with WT588D Voice Chip PC Software
1. Module with 28pin.
2. Can obtain different voice-stored time by changing memory.
3. Support 2M ~32M bit SPI-FLASH.
4. Embedded voice processor in order to make good sound quality.
5. Buit-in 13Bit/DA converter and 12Bit/PWM audio processor for high-quality audio output
6. Support audio sampling rate from 6KHz to 22KHz.
7. Support DAC output and PWM output.
8. PWM output can drive 0.5W/8Ω speaker directly.
9. Support for loading WAV audio format( 8 Bit , 16Bit , mono)
10. Control mode: key control , one-line serial control, three-line serial control.
11. A variety of IO trigger ways can be setted under key control mode.
12. Download the sound files by Mini USB with our PC software (free)
13. Operating voltage: DC5V.
14. Standby current less than 10uA
15. Strong anti-jam capability, can be used in industrious fileds
16. Equipped with WT588D VoiceChip Upper Computer Software, used conveniently.
1. Voice for anti-theft alarm,reversing radar,GPS Navigator,dongle,central Locking
2. Intelligent home system ,Home Burglar Alarm,Medical Devices
3. Household Appliance( Induction Cooker,RiceCooker,microwave oven)
4. Entertainment facilities(Gaming Console)
5. Learning Model (Early Learning Machine,Children's audiobook)
6. Intelligent Transportation equipment(Toll Station,parking lot)
7. Communications device( telephone exchange, telephone)
8. Industry control field(elevator,industrial equipment), toy and so on.
Typical Application Circuit
