Product Description
Description:

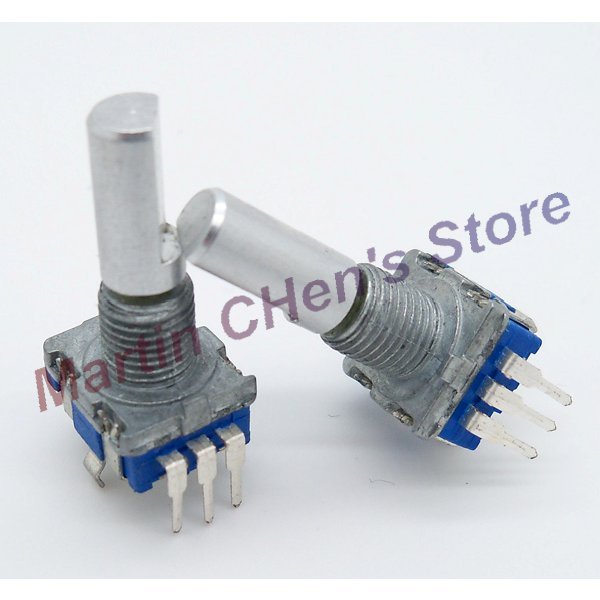

- These are continuous rotary encoder switch
- With built in push button switch (push to operate)
- Can be used for data entry as with modern in car CD players, for volume & on/off control or data selection via LED or LCD display
- Perfect for use with PIC or ATMEL microcontrollers
Specifications:
- Rotary Shaft Length: Approx. 12mm
- Shaft Full Length: Approx. 20mm
- Shaft Diameter: Approx. 6mm
- Size (L x W): Approx. 15 x 11mm
- Position: 20
- Pulse: 20
- Output: 2-bit gray code
- Closed Circuit Resistance: 3 ohms maximums
- Max. Rating: 10 mA @ 5 VDC
- Operating Temperature Range: -30 to 70 degrees celsius
- Storage Temperature Range: -40 to 85 degrees celsius
- Rotational Life: 30000 cycles minimum
- Switch Life: 20000 cycles minimum

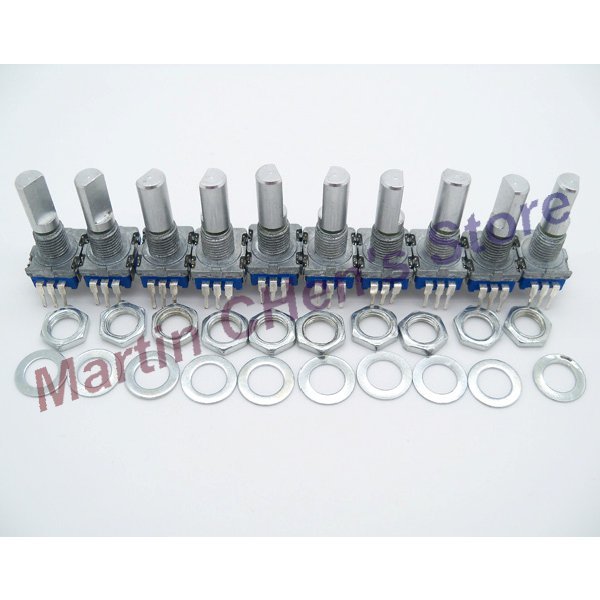

Package Included:
- 20 x encoder switch
- 20 x nut
- 20 x gasket
