200 pairs of MC4 socket connector free shipping solar connector UL and TUV certification

Product Description

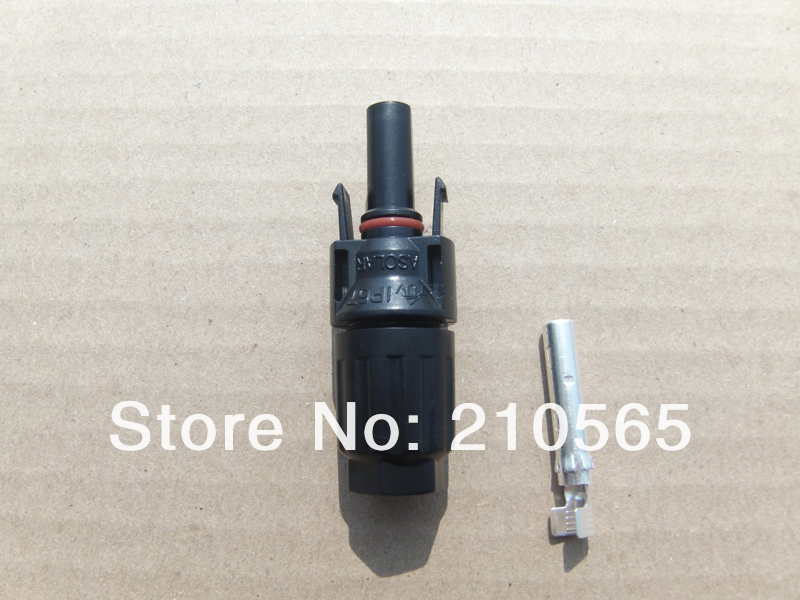

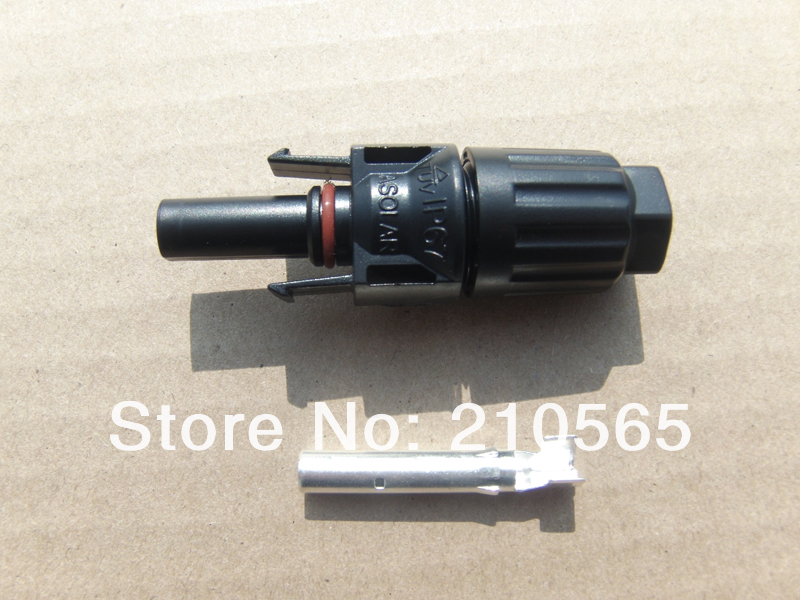

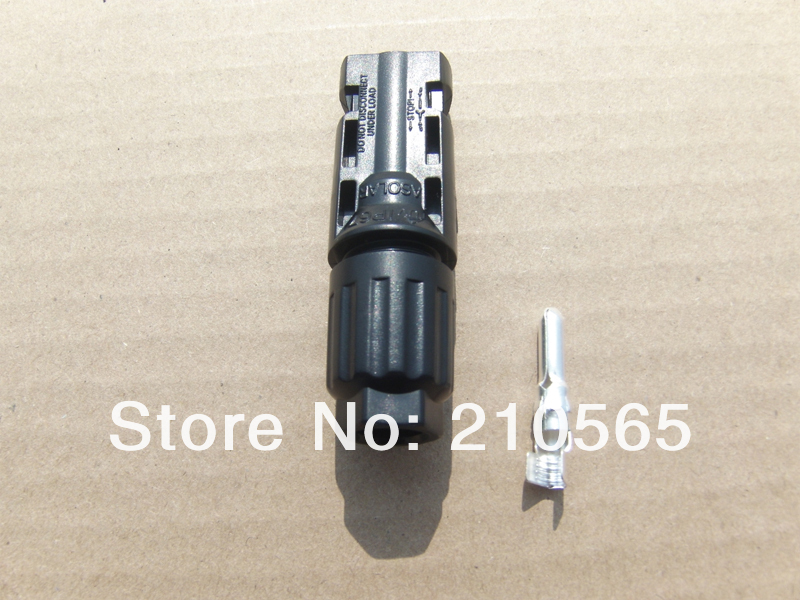

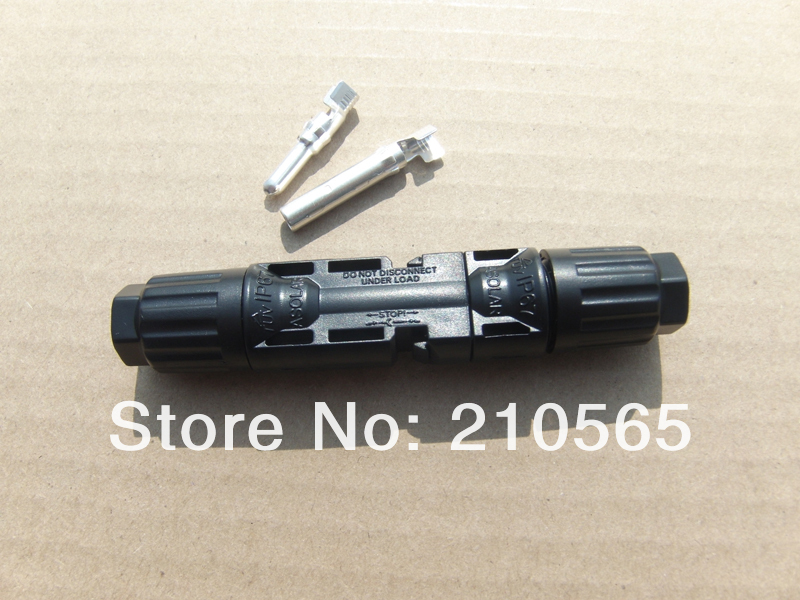

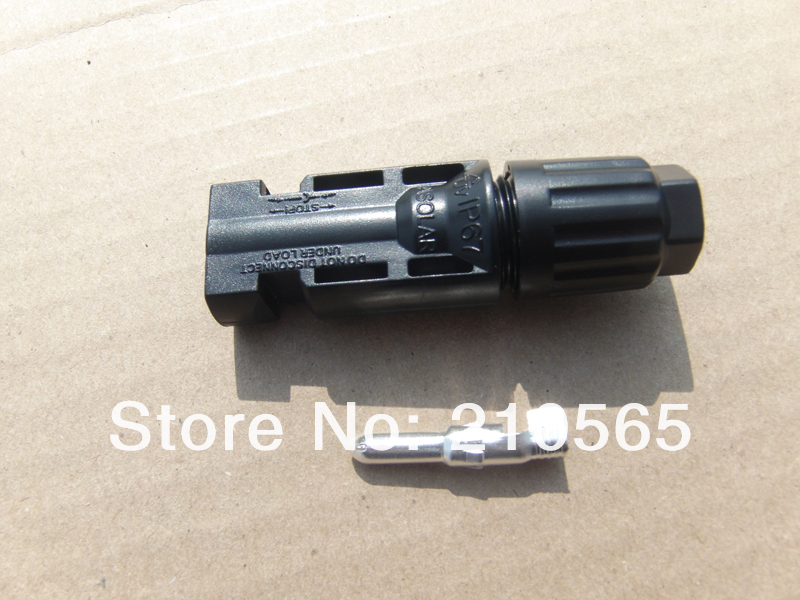

              200 pairs of MC4 socket connector(TUV )

Before you have a solar PV system installed Check you have a suitable location for panels

Solar PV panels produce most power when they are pointed directly at the sun. In Australia, solar modules should face north for optimum electricity production.

Solar PV panels should ideally be in full sun from at least 9am to 3pm. They should not be placed in shaded areas. Even a small amount of shade - from things like trees, roof ventilators or antennas - will have a large impact on the output of a panel, as it changes the flow of electricity through the panel. Shading on just one of the cells in a solar panel results in a loss of power from many cells, not just the one that is shaded.

1. Are cables secure?

Ensure that all cables associated with the system are secure and properly enclosed to protect them from mechanical and environmental damage. Unprotected cables, for example laying loose across your roof, could easily become damaged and present a safety risk.

Solar array cables that are not secured or protected

Solar array cables that are not secured or protected

Solar array with correctly secured and protected cables

Materialas:

Housing:PPO

Contacts:Copper ,tin plated

Electrical datas:

Rated current:30A

Rate voltage: DC 1000V(TUV)600V(UL)

Contact resistance:0.4 mΩ

Wire size range:2.5-4.0mm²AWG14/12

Test voltage:6KV(TUV50HZ,1min)

Environmental:

Degree of protection:IP67

Standards:TUV

Temperature range:-40 ~+90 Celsius degree

Safety class: II

Pin dimensions :Φ4mm

Flame retardant grade :UL94-V0

Advantages of Solar Connector
1.Simple,quick,safe and effective filed assembly
2.Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly
3.High mechanical endurance.High current and voltage carrying30A,1000DC
Low transition resistance
4.Innovative sealed,waterproof,dust resistance designIP67
5.Excellent plastic material ,UL 94-V0,wide temperature range-40°c to 90°c,weather and UV resistant for long-time outdoor application
6.Approved by TUV
