Gurantee qulality,factory direct wholesale and retail NEW RGB 24keys infrared Led IR controller,DC 12V ,free shipping

Product Description

In order to offer a better service and keep you updated with the latest promotions and products, please subscribe to my store:

http://www.aliexpress.com/fm-store/104035

Any problem of subscribing,please refer to:

http://help.aliexpress.com/alert_subscribe.html

Guarantee Quality !

Welcome Wholesale and Retail

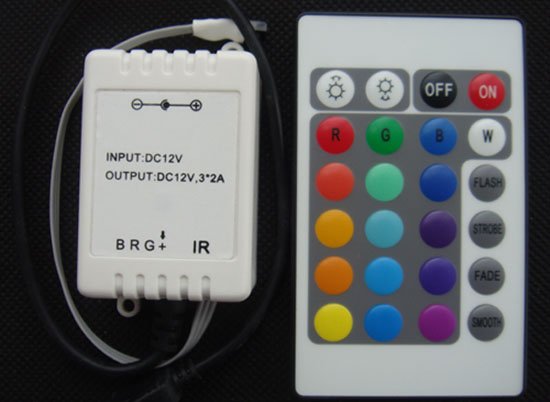

NEW RGB 24keys infrared Led IR controller,DC 12V

        24-key infrared controller adopts the advanced micro control unit ,it ia used for controlling a variety of lamp,whose source of light is LED.For instance,point source of light,flexible strip,wall washer lamp,glass curtain wall light and so on;if has many advantages such as low price,easy connection and simplicity to use.Meanwhile,you could adjust brightnes,static color choices and various dynamic changes in lighting effects through infrared remote control.

Specifications:

• working temperature: -20-60 degree,
• supply voltage: DC 12V
• Product Size:L63 x W35 x H22mm
• connection mode: common anode
• output current: <2A( each color )
• Connecting Mode: Common anod
• Net weight:50g
• Gross weight:70g
• Output: Three CMOS drain-open output

Control Method:

• The Key-press functions are shown in the table below(in accordance with the key position order):

• Brightness rise	Brightness drop	Off	On
  Static red	Static green	Static Blue	Static white
  Static orange	Static pea green	Static dark Blue	7 color jumpy changing
  Static dark yellow	Static cyan	Static brown	All fade out & fade in
  Static yellow	Static light blue	Static pink	7 color fade changing
  Static straw yellow	Static sky blue	Static purple	3 color jumpy changing

Safety Information:

• Supply voltage of this product is DC-12V,never connect to DC-24V or AC-220V.
• Never connect two wires directly in case of short circuit.
• Lead wire should be connected correctly according to colors that connecting diagram offers.

 Package Includes:

• 1x DC 12V RGB Infrared Controller
• 1x user manual
