H.264 4ch video recording D1 realtime CCTV dvr recorder/alarm/PTZ/VGA/mouse,support(iphone\ Blackberry\Android)watch,dvr to pc

Price:: US $122.11 / piece

Bulk Price:: US $ 122.11 / piece
2% off (4 pieces or more)

Sorry, this item is no longer available!

Click to view more CCTV DVRs products

: +Add to Wish List

Processing Time:: Shiping out within 4 days

$H.264 4ch video recording D1 realtime CCTV dvr recorder/alarm/PTZ/VGA/mouse,support(iphone\ Blackberry\Android)watch,dvr to pc$

Mouse over to zoom in

Product ID: 494568368 H.264 4ch video recording D1 realtime CCTV dvr recorder/alarm/PTZ/VGA/mouse,support(iphone\ Blackberry\Android)watch,dvr to pc Picture

Chiheng industry(shenzhen) Co.,Ltd

China (Mainland) (Guangdong)

Positive feedback

View my store

This Seller's Categories

Report item

Item specifics

Place of Origin:: Guangdong China (Mainland)

is_customized:: Yes

Brand Name:: OEM

Model Number:: DVR-9114LV

Video Compression::: H.264

Resolution::: PAL:704*576 NTSC:720*480

RS-485 port::: PTZ control

Recording::: 4ch Full D1 Recording

View::: Windows CE\Symbian\Iphone\ Blackberry\ Android

Language::: Turkish Portuguese Russian Italian French Spanish Polish Dutch German

Warranty::: 2 years lifetime support

Advanced function:: 1 2 4 8 Playback Network TV VGA USB Mouse Mobile Phone

Output:: VGA

Package:: Neutral; Welcome OEM

Product Description

H.264 4ch Full D1 Recording with PTZ

3G mobile phone monitoring/Mouse

25 Languages available with VGA output

True full-duplex function, video, playback can work at the same time

DVR Connection Diagram:

Model

DVR-9114LV 4 channel video / 1 channel audio / VGA output/ RS485 for PTZ control

H.264 compression algorithm ideal for standalone DVR
Real-time live display for D1, Real-time live recording with each channel for D1 : 30FPS
Support 4ch Full D1 realtime recording resolution,ahead to D1 High-Definition period.
Pentaplex function: live display, recording, playback, backup & remote access
4CH Video input,1CH Video output;1ch audio-in,1ch audio-out .
Support Multiple channel playback simultaneously,to facilitate comparison the different channels of recording(Support 4CH playback simultaneously,and each channel can be enlarge to full screen).
Super Network function:one IE browser centralized monitoring and CMS Software for multiple DVR (up to control 255 DVR simultaneously).
Display Frame Rate:NTSC:120fps/ PAL:100fps,Recording Frame Rate:NTSC:120fps / PAL:100fps.
Multiple control methods: Front panel, remote controller, USB mouse, network controller.
Multiple recording modes: manual recording, schedule recording, alarm recording, motion detection recording, time recording, and pre-recording.
Support one SATA HDD,unlimited for the capacity
Support PTZ control via built-in RS-485 port
Ethernet interface is provided for realizing remote monitoring, remote playback, acoustic monitoring, remote setting and remote software upgrading through network browser.
Alarm triggering screen message, buzzer, PTZ preset, E-mail, sensor output, multiple channel recording.
Easy backup methods: USB devices, network downloads.
Support all channel playback at the same time, and searching according to time or event(alarm, movement and sensory alarm)
Multi-Language selectable:

English, Spanish, Italian, French, Finnish, Russian, Vietnamese, German, Persian, Japanese, Chinese, Traditional Chinese, Polish, Greek, Turkish, Romanian, Hungarian, Thai, Portuguese, Ukrainian

Support remote view with Mobile Phone(Windows CE\Symbian\Iphone\ Blackberry\ Android)

DVR Main Menu:

Web Network Control

34343[1]

Mobile View

Remote Control

4ch video/1ch audio with PTZ control D1 DVR Frount Panel:

(1) recording search button 7(2) PTZ control button 8 (3) recording button/0

(4) shift function button (5) cancel button (6) menu & confirm button

(7) up button (8) play previous file/1 (9) play next file/ 2

(10) slow play/ 3 (11) fast play (12) playback or pause / 5

(13) play or pause /6 (14) left button (15) down button

(16) right button (17) IR remoter receiver (18) hard disk indicator light

(19) power indicator light (20) power switch (21)hard disk information

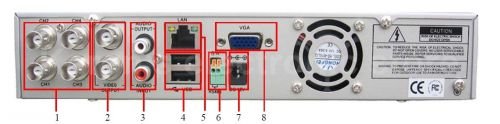

4CH video& 1ch audio D1 DVR Rear Panel:

(1) video input (2) video output (3) audio input /output

(4) USB interface (5) network interface (6) RS-485 interface video

(7) power jack (8) VGA output (9) Alarm input&output

	Type	DVR-9114LV
System	Main processor	Industry level embedded microprocessor
	Operation system	Embedded LINUX operation system
	System resource	synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation
Interface	Operation interface	16 bit true color graphical menu interface, mouse operation supportive
Interface	display	1/4image display
Video	Surveillance image quality	PAL: 704576 NTSC:720480
	Recording image quality	CIF PAL: 352288 NTSC:360240 D1 PAL: 704576 NTSC:720480
	Image compression	H.264
	Image control	6 options
	Recording frame rate with each channel	PAL NTSC CIF: 25fps 30fps D1: 25fps 30fps
	Image motion detect	396(22*18) detection areas, multiple sensitivity
Audio	Audio compression	G711A
Audio	Talk-back	supportive
Recording And Playback	Recording mode	manual >alarm>motion detect>timing
	Local playback	Single channel playback, All channels playback
	Recording look-up mode	Time searching, calendar searching, affair searching, channel searching, information searching
Storage And Backup	Hard disk capability for each channel	Audio: 28.8Mbytes/hour Video:80~250Mbytes/hour
	Recording storage	Hard disk, network
	Backup mode	Network, USB
Port	Video input	4channel BNC
	Video output	2channel BNC, 1channel VGA output
	Audio input	1channel RCA
	Audio output	1channel RCA
	Network port	RJ45 10M/100M adoptive Ethernet network port
	PTZ control port	1 RS485
	USB port	2 USB ports(with USB backup and USB mouse)
	Hard disk port	1 SATA port with 1TB hard disk
Other	Power supply	12V/3A external power supply
	Power consume (without hard disk)	<10W
	Working temperature	0~+55
	Working humidity	10%-90%
	Air pressure	86kpa-106kpa

	Packing size	365105267mm
	Installation	Frame installation, platform installation

Package included:

1 x 4 Channel H.264 DVR
1 x USB Mouse
1 x Remote Control
1 x Installation CD Rom
1 x User Maunal
1 x DC12V AC Adaptor (100V - 240V input)
1 x Power Cord
1 x Adaptor to suit your country (if applicable)

.jpg

Payment:

if you have any problems of payment,please contact us!
If you need to buy more goods, but the price is not very cheap, or did not find in our store, please contact us!

Shipping:

1. Item will be shipped within 1-3 business days.
2. Delivery Time:

We ship the order by the following way:

----DHL: 2-5 working days

----UPS: 3-5 working days
----EMS: 5-7 working days
----Air mail:5-18 working days
The shipping way depends on your address.

3. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply.
4. Buyer responses for (in case) all tax or VAT by the customs of buyer's country.We will do our best to minimum the risk.

Warranty& Return:

1. All products have been checked and packaged in good condition before dispatch.
2. All products have 2 year warranty.
3. if you are not satisfied with our product and service. Please contact us first before giving a non positive feedback or dispute. we will try to our best to solve the problems.

Customer & Service:

1. We guarantee that all our items are "as stated" in their descriptions. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from factory, there is no middle man, no high markup, so we can provide quality items yet very competitive price.
3. If you have any questions please contact us first, most are responded with in 12 business hours.

Payment:

if you have any problems of payment,please contact us!
If you need to buy more goods, but the price is not very cheap, or did not find in our store, please contact us!

Shipping:

1. Item will be shipped within 1-3 business days.
2. Delivery Time:

We ship the order by the following way:

----DHL: 2-5 working days

----UPS:3-5 working days
----EMS: 5-7 working days
----Air mail:5-18 working days
The shipping way depends on your address.

3. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply.
4. Buyer responses for (in case) all tax or VAT by the customs of buyer's country.We will do our best to minimum the risk.

Warranty& Return:

1. All products have been checked and packaged in good condition before dispatch.
2. All products have 2 year warranty.
3. if you are not satisfied with our product and service. Please contact us first before giving a non positive feedback or dispute. we will try to our best to solve the problems.

Customer & Service:

1. We guarantee that all our items are "as stated" in their descriptions. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from factory, there is no middle man, no high markup, so we can provide quality items yet very competitive price.
3. If you have any questions please contact us first, most are responded with in 12 business hours.

4CH Full D1 realtime recording

“Your Safety, Our Objective!”

Packaging Details

Unit Type:: piece

Package Weight:: 3.000kg

Package Size:: 25cm x 45cm x 23cm
