Product Description
FOR BMW E90 3 Series (2005 Onwards) Saloon
FOR BMW E91 3 Series (2005 Onwards) Touring
FOR BMW E92 3 Series (2005 Onwards) Coupe
FOR BMW E93 3 Series (2005 Onwards) Cabriolet
FOR BMW E81 1 Series (2004 Onwards) Door Hatchback
FOR BMW E82 1 Series (2004 Onwards) Coupe
FOR BMW E87 1 Series (2004 Onwards) 5 Door Hatchback
FOR BMW E88 1 Series (2004 Onwards) Convertibl
Model No. WD8607
Item Name 2 Din Car DVD player with GPS/ Blue tooth/I-POD control/USB/SD/Radio/Amplifier
Key Feature:
17 languages "English,German,French,Spanish,Dutch,
Hungarian,Czech,Danish, Norwegian,Swedish,
Portuguese,Italian,Finland,Roumania,Greek,Russian,Poland "
Support Original onboard computer, Support steering wheel control
3D GUI menu, easy to operate
Dual Zone function, listening to Radio/watching GPS image in the same time
Easy to change the opening picture by customer
Display 6.2 inch 16:9
800*480pixes digital TFT
DVD Section:
Disk Compatibility Supports DVD/VCD/CD/MP3/MPEG4/CD-R/WMA/JPEG
Media Compatibility Supports DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD
Built in GPS Navigation:
Operation system :Windows CE6.0
Supported maps Igo, Route66, Tom-Tom, Supports 3D Maps
GPS Baud Rate=9600, Com Port=2
CPU Intel samsung S3C2451 Processor
Main Frequency 533MHZ
SDRAM/FLASH 1GB/128 MB
MAX Memory supported 16G
Orientation presicion <15m
Refurbish frequency 1HZ
Length of antenna 5M
Chipset SiRF STAR III
GPS antenna frequency 1575.52MHZ
Language English/Francais/Polish/Espanol/Deutsch /Italiano/Arabic/Russia
Bluetooth: A2DP
Microphone built-in
Phone book
Port 1 USB port
2 SD card port, 1 for Music/movie, 1 for GPS
TV TUNER: Built-in Analog TV
NTSC, PAL-B/G, PAL-I, PAL-D/K,PAL-M,PAL-N ,SECAM-DK
PLL Frequency Synthesizer System
Built-in ISDB-T / DVB-T (mpeg-4) optional Optional
Radio: "AM Frequency Range:
522-1620 (Europe/China),530-1710 (America)"
"FM Tuning Range:
87.5-108 (Europe/China), 87.5-107.9 (America)"
30 stations storage
Usable Sensitivity 5dBV(S/N=30dB)
Amplifier 4*45 Watts
"Audio & Video
Input/Output:" Aux Video Input 1
Aux Audio input 1
Video Outout 2
Audio Output 4 ( FR/FL/RR/RL)
Camera input 1 (Auto rear view)
Radio Aerial input 1
TV Antenna input 1
I-POD Input 1
Audio Section: 1) Rated Output 4ch*3W
2) Maximum Power Output 4ch*50W
3) Rated Speaker Impedance 4
4) Pre-AMP Output Voltage 2Vrms
5) Pre-AMP Output Impedance <220
7) Video 1 Vp-p(75)
8) Audio 500mVrms
Support Audio type MP3/PCM/WMA
Support Video Type ASF/AVI /WMV /DIVX
Can bus with CAN BUS

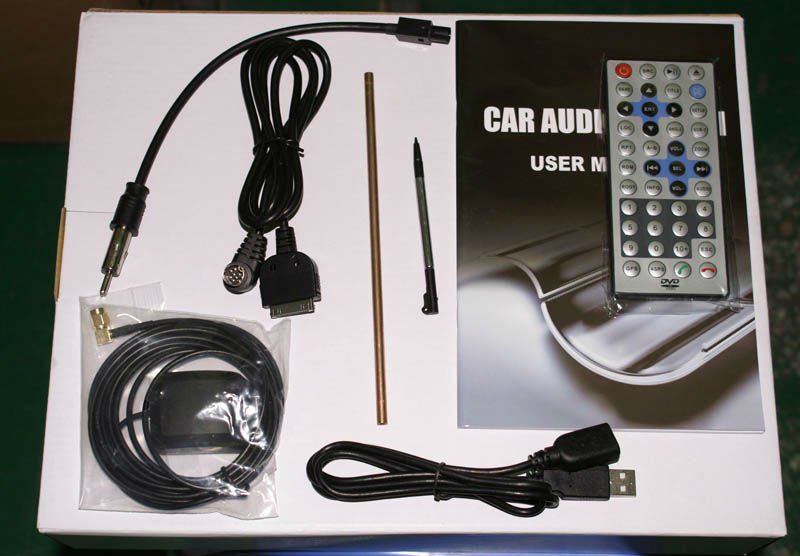

Package: 1 x Multimedia DVD Player
1 x User Manual ( english )
1 x GPS antenna ( GPS function )
1 x I-Pod wire ( I-POD function )
1 x USB wire ( USB function )
1 x Remote control

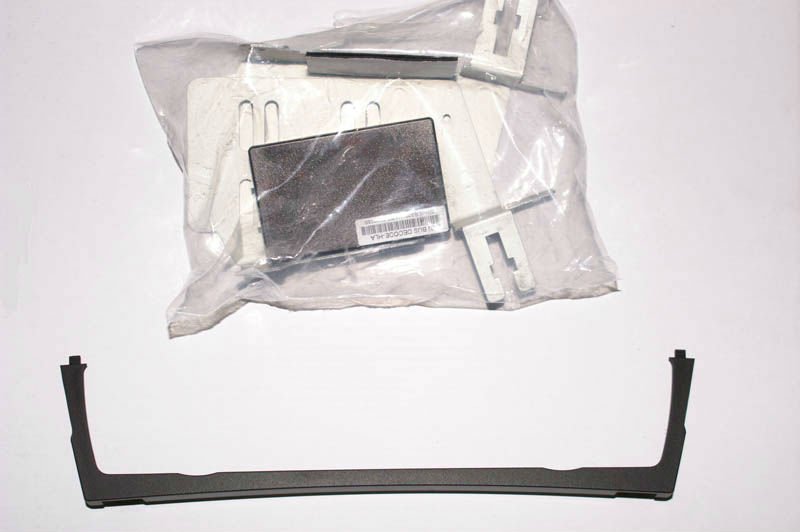

1 x Install tool
Optional: 1, ISDB-T or DVB-T (mpeg2 or mpeg4)
2, SD card with newest map
3, Rearview camera
