Product Description
Smart design, popular appearance

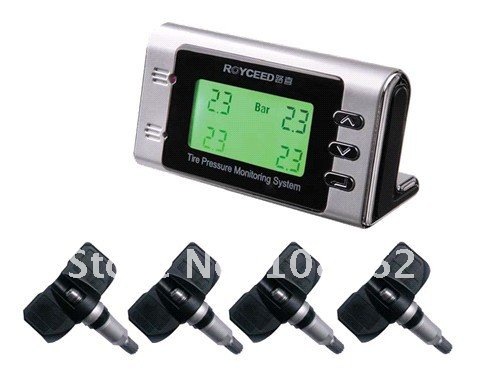

1. TPMS Model CCT-TPMS2 components:
2.Functions and Features
Product Features
(1) Real time monitoring tire pressure and temperature.
(2) Display show pressure of 4 tires on screen.
(3) Display show which tire is abnormal.
(4) Powerful function include low pressure, high pressure, leakage, high temperature alam. (5) Alarm with beep sound and display screen red light flashing.
(6) Sensor battery life can be used more than 6 years.
(7) Display powered by vehicle battery.
Alarm Function
(1) Leakage alarm: The pressure decrease over 0.2Bar in 20 seconds
(2) Low pressure alarm: The pressure is lower than standard about 25%
(3) High Pressure Alarm: The pressure is higher than standard about 40%
(4) High temperature alarm: The temperature of tire is over the threshold (5) Low power of sensor alarm: The power of any sensor is less than 2.4v (6) No signal alarm: Missing some sensors?message over 25 minutes after it start to work
Operating Functions
(1) Pressure Unit setting: change Bar to PSI (pre-set unit is bar) (2) Temperature Unit setting : change ?C to ?F(pre-set unit is ?C)
(3) Standard pressure setting: increase or decrease (pre-set value is cold tire pressure 2.4 Bar) (4) High temperature alarm threshold setting: pre-set threshold is 80?C
(5) Set up sensor: learn new sensor ID code when replace sensor
(6) Exchange tires position: when mismatch sensor to tires, change position on display
3.Technical Parameter
Display
Input Voltage: 12?V
Static Currency: <6mA
Operative Temperature: -40?C~+85
LCD: -30? ∼+80o C
Operative Humidity: 5∼98%
Sensor
Pressure Range: 100Kpa ~ 450Kpa / 1Bar ~ 4.5Bar
Battery Life: >6 years
Static Currency: < 0.8μA
Operating Currency: < 12mA
Operative Temperature: -40o C ~ +125o C
Pressure Error: ?0kpa / ?.1Bar
Temperature Reading Accuracy: ? oC
Operative Humidity: 5∼98%
