With this Qi standard wireless power charger, you can charge all your Qi-enabled devices without the bother of messy cables. It is ultra-thin, convenient and universal, just drop and charge.
1.The wireless charger can be used for all Qi-abled device.
2.Some mobiles phones must be eqquiped a Qi receiver to be charged wirelessly.(Please read the discription carefully)
The new portable Qi-abled wireless charger pad can be used for QI standard receiver.For Qi-marked devices,you just need to put them on the wireless charger pad,it will work well,and for some other without Qi mark,you need a wireless charge reciver for you phone.
1. Input:5V, 2A
2. Output:5V, 1A
3. Transmission distance:Vertical 5mm
4. Item Weight:220g
5. Charging efficiency:≥70%
6. Executive Standard:QI wireless charging standard
Power Adapters are not included
Input: 5V 2A
Output: 5V 1A
Product size: 83 * 153 * 10mm
1 x A Wireless charger transmitter pad for all Qi-abled devices.
1 x USB charging cable.

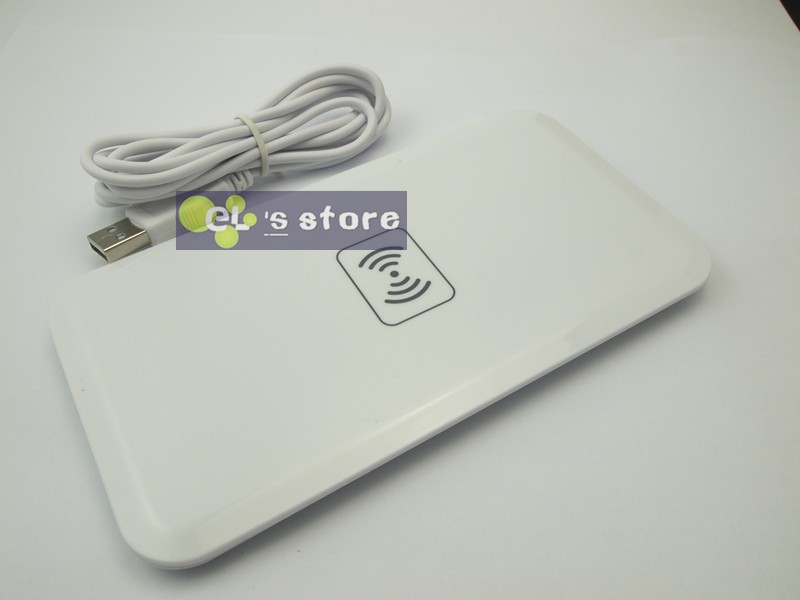

Wireless charger face side

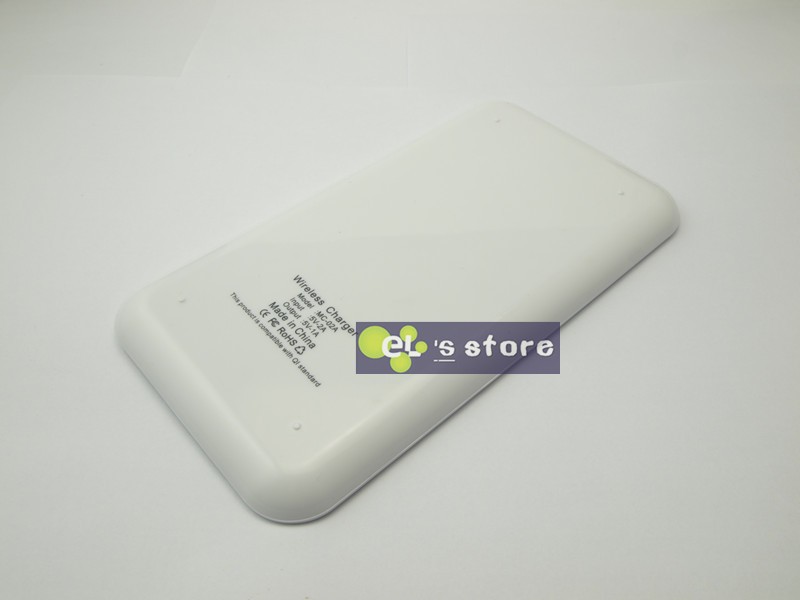

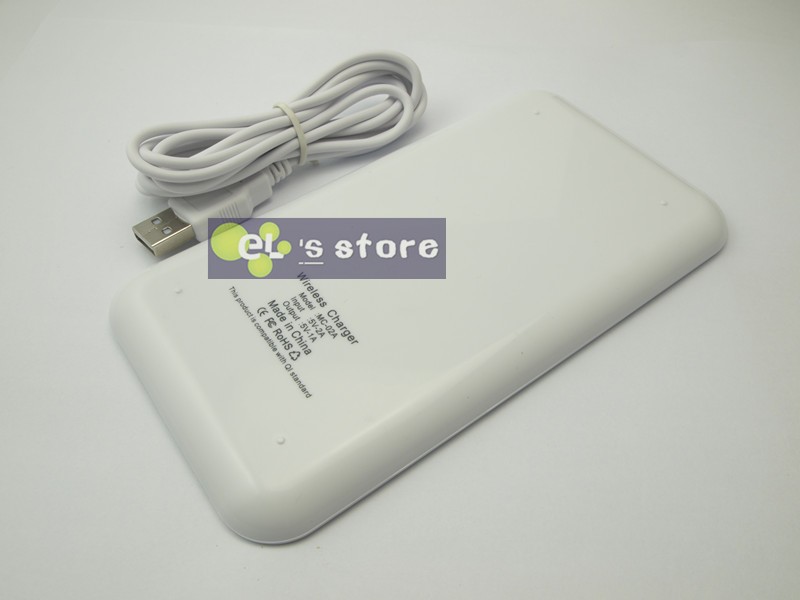

Wireless charger back side

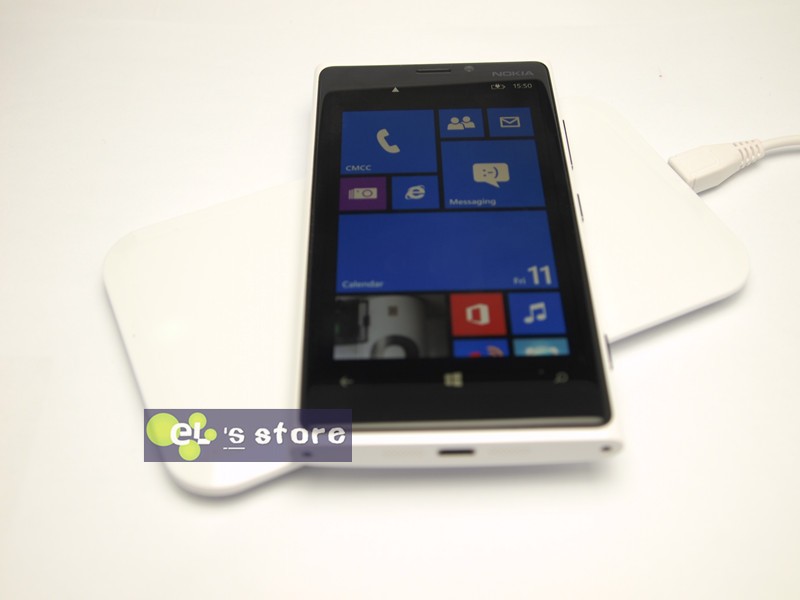

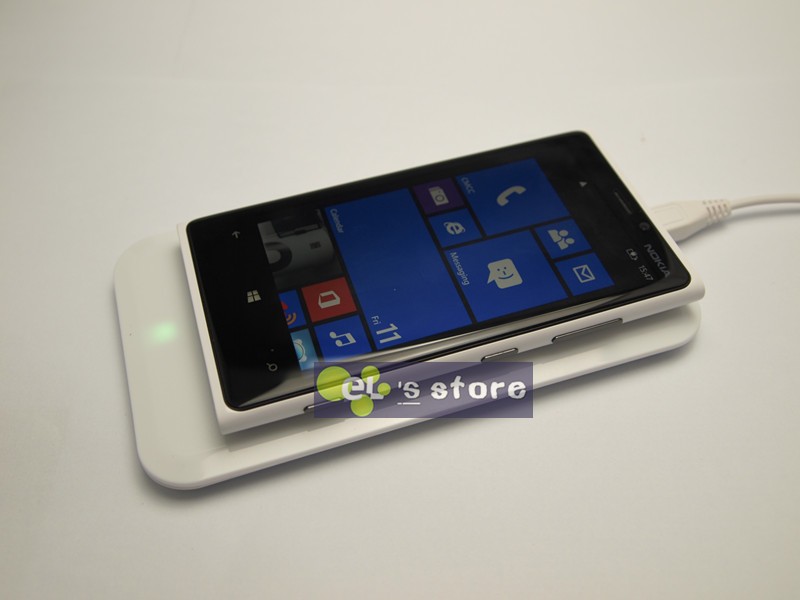

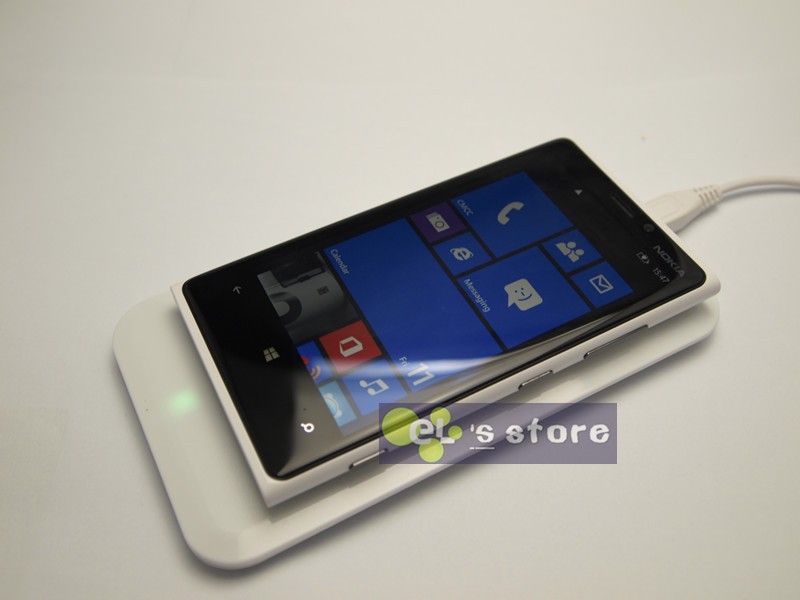

NOKIA lumia920 mobile phone charging effect
Samsung mobile phone charging effect
Supported phone models
Qi Wireless Charger
for iPhone 5 --- External(need to install the Qi receiver back case)
for iPhone 4/4S --- External(need to install the Qi receiver back case)

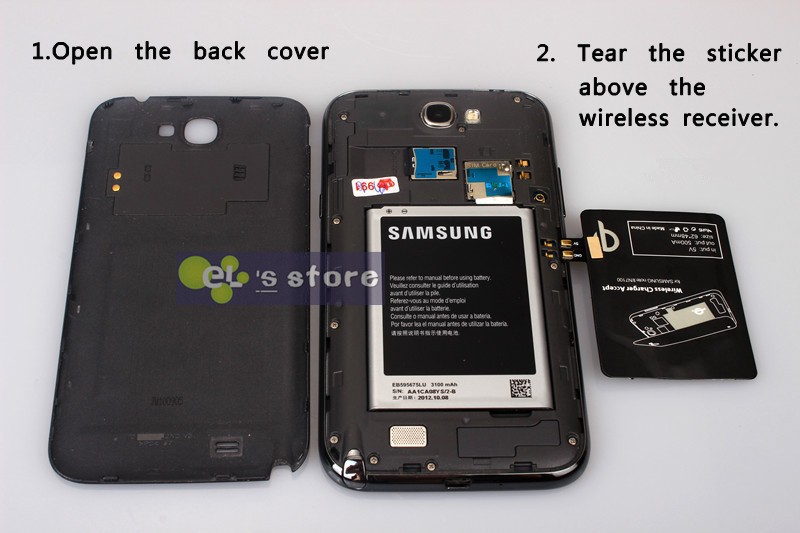

S3(9300/9308) --- External(reserved interface,need to install the Qi receiver)
Note 2 (7100/7102) --- External(reserved interface,need to install the Qi receiver)
S4 --- External(reserved interface,need to install the Qi receiver)
920 --- Qi receiver built-in
928 --- Qi receiver built-in
925 --- External(reserved interface,need to install the Qi receiver)
720 --- External(reserved interface,need to install the Qi receiver)
820 --- Built-in(need to replace the battery cover)
Droid DNA --- Built-in
Butterfly --- Built-in
Inceredible 4G LTE --- Built-in
8X --- Built-in
Nexus 4 --- Built-in
D1L --- Built-in
LTE2 --- Built-in
Q: wireless charging radiation is harmful?
A: CK-QI02 wireless charging pad conforms Qi wireless charging standard using a harmless low-frequency non-ionizing frequency (110-205kHz). The transmission distance of a few millimeters up to 5 watts of energy, and a low impact on the surrounding. And the Qi standard equipment with non-compatible object detection function, so only compatible with Qi standard equipment on the top will trigger charge, and once filled the stop. Any other objects (whether metal or coil) put up will not trigger the charge. In addition, CK-QI02 charging plate with temperature detection function, if it is found that the temperature exceeds the standard stop charging. Users may need to worry. In addition, the use of technology in the water purifier 10 years, security has been verified in dozens of countries. In China, the Ministry of Industry under the EMC testing of (electromagnetic compatibility Communication Quality Supervision and Testing Center) is Qi participants.
Q: wireless charging will affect other wireless devices?
A: No, because the wireless charging frequency used (110-205kHz) and most wireless devices are not a frequency.
Q: wireless charging will cause a great amount of heat it?
A: Under normal use, the charging plate temperature below body temperature. Sometimes the actual use of the temperature will be slightly higher temperature occasionally.
Q: whether frequent charging will shorten battery life?
A: In addition to overcharge the absolute wrong way to charge outside the large number of "charging under different conditions affecting cycle life of lithium batteries," The results show that "used with the charge / discharge shallow charge and shallow" and "run out and then charge / deep charge deep discharge "compared to the former battery cycle life to be longer. That is not to wait until the batteries are exhausted to go charging, rest assured and take full advantage of fragments of time to charge the phone now.
