Wholesale 3 Gang 500M Distance Remote Touch Wall Switch System,LCD Display,Voltage AC100~250V power lamp switch,Free Shipping

Product Description

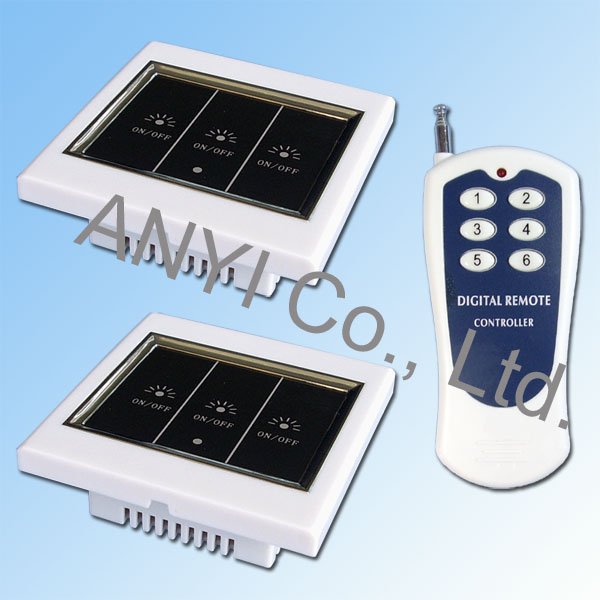

Package Include:

• 2 x Wall Switch(HCS-3)
• 1 x Remote control (CV-6)

Feature:

• Wireless control + LCD Touch sensitive control
• Easy to install.
• Control lamps, fans or other appliances with voltage AC100~250V.
• Suitable for Incandescent lamps, Halogen lamps, Fluorescent lamps, and Energy saving lamps.
• You can turn on/ off the lamp with remote control from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
• Reliable control: The remote control (Encoding) and wall switch (Decoding) use an 8-bit code.
• One/ several remote controls can control one/ several wall switches simultaneously.
• If you use two or more wall switches in same place, you can set them with different codes.
• Transmitting Frequency: 315MHz

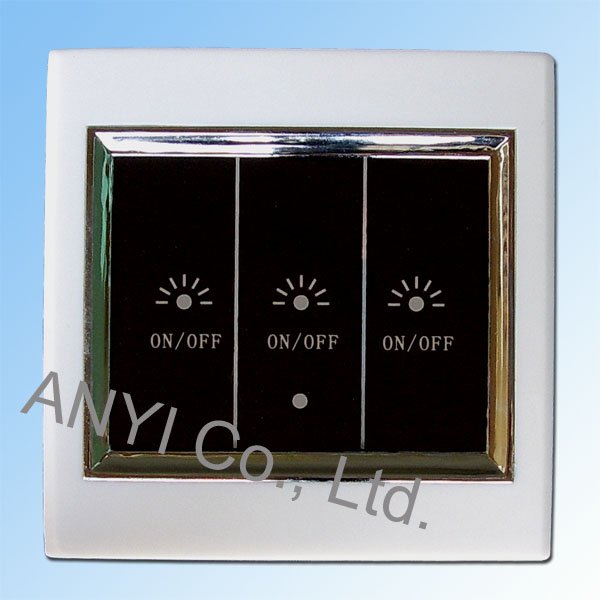

Wall Switch:

• Model No.: HCS-3
• Channel: 3 CH
• Decode: Learning code
• Working Voltage: AC 100~250V (50/60Hz)
• Size: 86mm x 86mm x 35mm
• Static Current: <40uA (<0.008W)
• Maximum Power: Incandescent lamps or Halogen lamps: 800W/220V, 400W/110V
                                 Energy saving lamps or Fluorescent lamps: 150W/220V, 100W/110V
• Mount box should be standard "86" style and the dimensions at least 75mmx75mmx35mm. We also can offer this mount box.

Remote Control:

• Model No.: CV-6
• Channel: 6 CH
• Remote Control Distance: 500m / 1500ft (theoretically)
• Encode: Fixed code by Soldering
• Size: 110mm x 50mm x 18mm
• Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

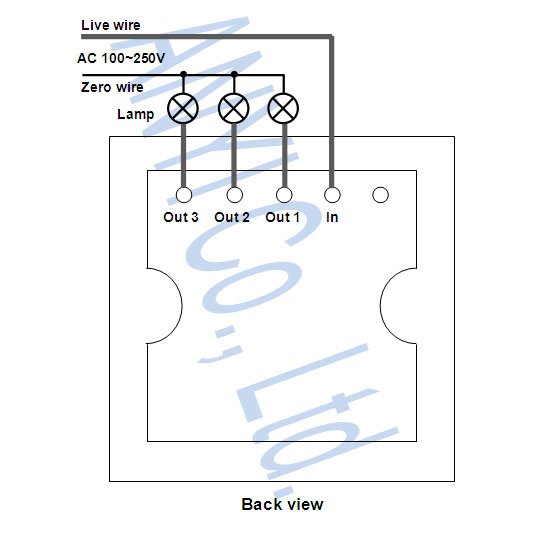

Installation:

Usage of Wall Switch:

• Touch LCD 1, turn on the lamp 1; Touch LCD 1 again, turn off the lamp 1.
• Touch LCD 2, turn on the lamp 2; Touch LCD 2 again, turn off the lamp 2.
• Touch LCD 3, turn on the lamp 3; Touch LCD 3 again, turn off the lamp 3.
  ... ...

Usage of Remote Control:

• Press button 1, turn on the lamp 1; Press button 1 again, turn off the lamp 1.
• Press button 2, turn on the lamp 2; Press button 2 again, turn off the lamp 2.
• Press button 3, turn on the lamp 3; Press button 3 again, turn off the lamp 3.
  ... ...
