PS2 Heavy Duty Scanner
Universal truck scanner with Bluetooth wireless
As manufacturer, our purpose is to offer the best product quality, the quickest data update and the most perfect service
100% Unconditional Satisfaction Guaranteed!
Ships within 24 hours of payment, Guaranteed!
Full 1 Year Warranty with all products!
2 Years Free Online Update Service!
Website Support: xtooltech official website
What is PS2 heavy duty scanner:
PS2 heavy duty scanner is an universal truck scanner developed by Xtooltech Co., Ltd which located in Shenzhen of China. It’s the best heavy duty truck scanner you can find on the market so far. It’s a standard tool for automotive mechanic, garage, service center, auto repair shop and truck drivers.
What are the main functions?
l Read System Information.
l Read Trouble codes.
l Erase Fault Cods.
l Read Datastream.
l Freeze Frame.
l Actuation Test.
l Injector data.
l Vehicle Design.
l Function test.
l Read Chassis No.
l Read Engine No.
Many functions, to different model of truck , the functions are different. Not all the functions can apply to all the trucks.
Which trucks can it work on?
Working truck list:
Volvo, Scania, Man, Mer-cedes Bens, Isuzu, Mack, Cummins, HINO, HYUNDAI, Iveco, FUSO, ERF, Astra, Bremach etc.
Nissan UD, Renault, SINOTRUCK, DAF, coming soon…
For detailed truck list and function list, please contact us.
How about the software updating?
We provide 2 years software free updating on official website of PS2.
You don’t need to send the machine back. Just login to the download website with user name and password of the machine. Then you can download the updating software. Then load the software to the software card will be ok. Very easy to update.

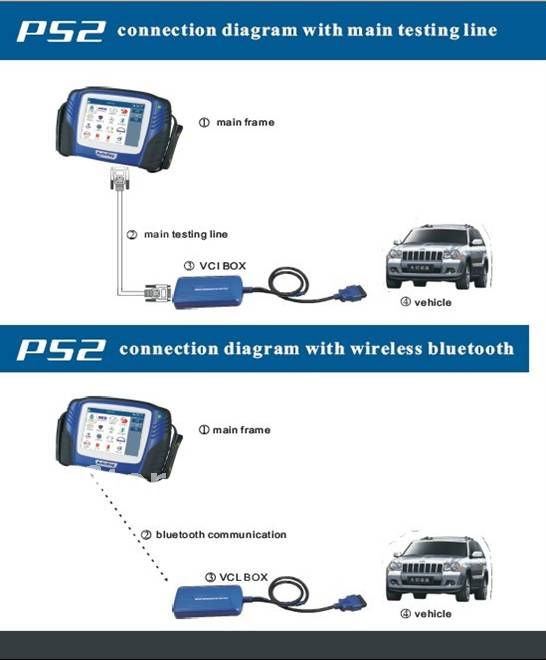

How to connect to the truck?
By testing line & Bluetooth wireless connection:

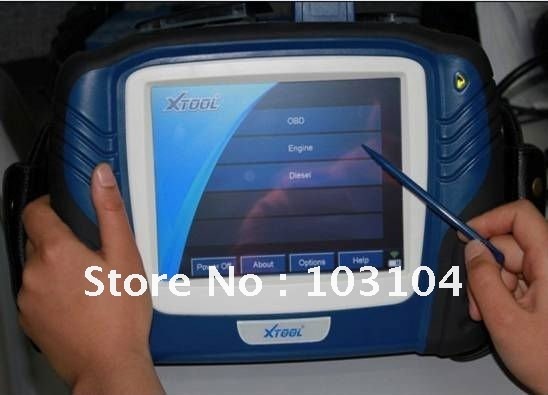

Illustration of PS2 main unit:

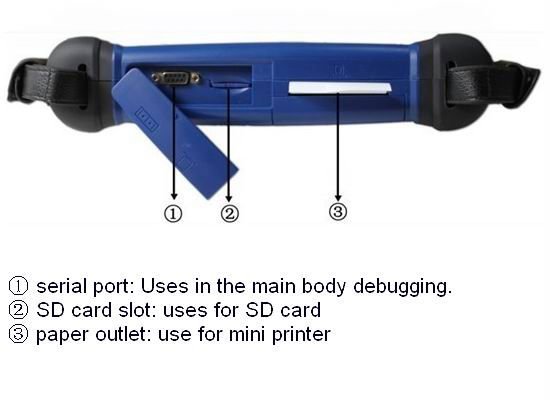

Illustration of the various connect points on top of the main:
Illustration of the various connect points on bottom of the main unit:
Function of VCI diagnostic box:
The VCI box communicates with PS2 mainframe and vehicle. It is also called lower-position machine box. This diagnostic box has two connections: DB15 and OBD II. The main testing line connects PS2 mainframe with DB15. The OBDII connection could link with the testing adapter (vehicle with OBDII adaptor could directly link with PS2 mainframe)
PS2 mainframe with no main testing line also can do diagnosis as the bluetooth communication module has been installed into the VCI diagnosis box. Please change the setting from “on-line diagnosis” to the “wireless diagnosis” on the menu if you are wondering to use it with wireless!

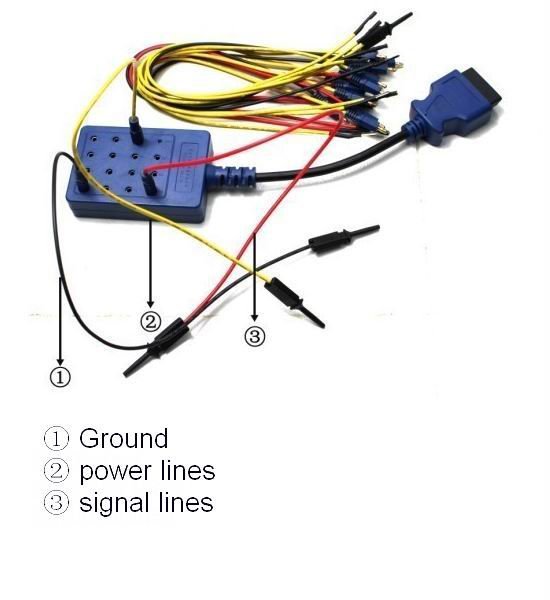

The multi-jumper box with cables:
Tip: If you use the OBD testing connectors for direct connection, can only detect the standard diagnostic connector pin out on the connected system (pin 7 for ISO diagnosis, pins 2 and 10 for SAE diagnosis, 6 and 14 pins for the CAN diagnosis). This is usually the engine control system, some cases may find other systems. All diagnostic criteria did not take out the plug pins on the OBD system must use the test connection with the ‘million a jumper box’to the jumper connection test. In the use of ‘million a jumper box’to the jumper connection test, check on that connection as follows:

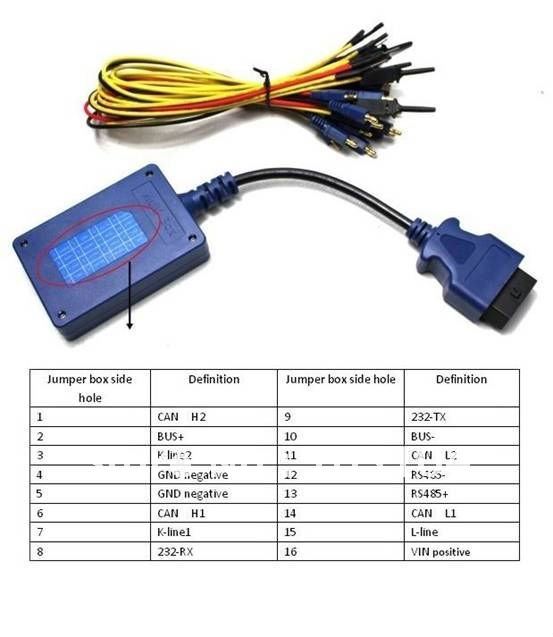

note of the side hole on multi-jumper box , it is visible on the label place of the box back
PS2 technical parameters:
WINCE 5.0 operating platforms
SAMSUNG 32 bits processors, basic frequency is 400MHZ
supports SD card slot-in and slot-out
mainframe power supply
Mini high-speed thermal sensitive printer
8’ real-color touch-screens, 800×600 with LED back-light

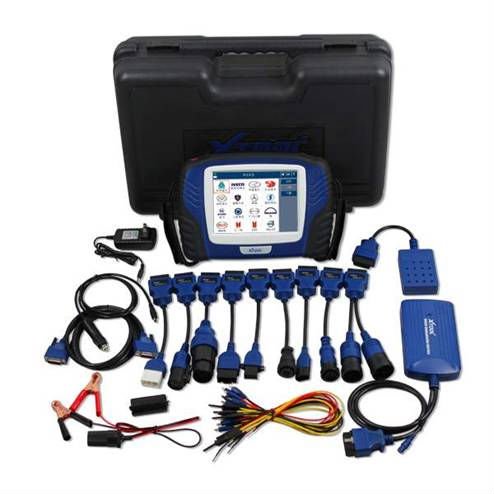

mainframe, testing adapter, group of lines, manual and outside box
rechargeable battery 3500m/Ah
Remark: Every product has been tested before sending to our customers for making sure it can be operated in good condition!
