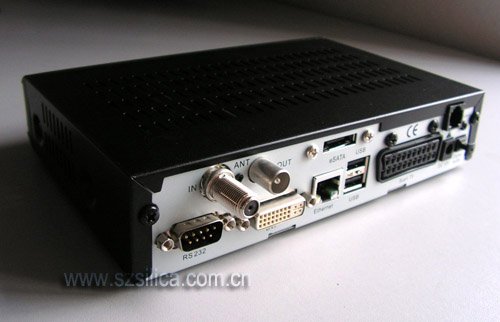

dm800c dvb-c hd cable tv receiver

Product Description

300 MHz MIPS Processor
-Linux Operating System
-OLED - Display
-MPEG-2 / H.264 Hardware decoding
-Tuner: DVB-C

-Tuner Module, Plug&Play
-1 x Smartcard-Reader

-V.24/RS232 Interface
-10/100Mbit Ethernet Interface
-1 x Scart (RGB, FBAS or S-Video)
-1 x DVI
-2 x USB 2.0
-analog modem
-S/PDIF Interface for digital bit stream out (AC-3)
-64 MByte Flash, 256 MByte RAM
-SATA
-For use either as internal SATA HDD 2,5
-Or to use for extern eSATA
-Unlimited channel lists for TV/Radio
-Channel-change time < 1 second
-Automatic service scan
-Directly bouquet-lists
-EPG (electronic program guide)
-Multiple LNB-Switching control (supports DiSEqC)
-OSD in many languages and skin-support
-Videotext Decoder
-Extern 12V power supply

DBS-Tuner mit DVB-S2:
Frequency Range 950.... 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 31 Mbaud/s (8PSK) , 10 30 Mbaud/s (QPSK)
Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Devices
Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB
Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink
Ausgang Video:
Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm
Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart:
Output: FBAS, RGB, S-Video
Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware
Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware
Analoge modem:
analoge modem for Internet connection
SATA Interface:
- for use either as internal HDD 2,5 or eSATAor internal 2,5" HDD
2 x USB 2.0 Host
LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control
Power consumption:
< 15W at 12V
External PSU
Input:
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 3,0A

Package include:
1x dm800c dvb-c cable tv receiver
1x remote control
1x power supply
1x dvi to hdmi cable
1x av cable
1x scart to av connector
