Detail product description
SAS807WHB-0 the room controller type SAS807 is apply to electrical heating system or water boiler floor heating .
1.Big knob easy for user operation
2.power indicator available
3.flame-retarded and modified engineering plastics
4.service life more than 100000 tines
5.install :wall mount
Temp. Control Scope
Operating Temp. Difference
<1.5 at 20
Flame-retarded and modified engineering plastics
10A/16A 250Vmax. 50/60Hz ?
Above 100M ? megohm meter at DC500V
For 1 min. no breakdown at AC 1500
More than 100,000 times
Terminal holds wire of max.2.5mm2, unistrand wire of 2mm2 is recommended
Installation Notice for SAS807WHB-0 series thermostat
1. Vertically fix the thermostat to wall, approx. 1.5 meter from the ground, in order to ensure receiving adequate air
flow and accurately controlling room temperature.
2. Put the thermostat away from doors or windows which have direct sunlight and keep it away from any cooking appliance or other heat sources.
3. Remove the cover by pushing fastener connecting the base and the cover. (Note: must not take down the temperature-regulating knob).
4. Thread the connection wire through the square hole in the base and connect the wire to integrated terminal according to the wiring diagram on the cover.
5. Use the screws supplied fix the base in the junction box.
6. Put the cover back to the base and fix them together.
7. The power switch is at the bottom of the thermostat, and the regulating knob just has the function of temperature regulating.
8. For customers choice, we also furnish with many other models of thermostats without power switch.
Europe standard programmable floor heating room thermostatUS$ 20.00/piece
hot sale wireless thermostatUS$ 28.00/piece
Floor heating room thermostat with 2-pole isolate switchUS$ 20.00/piece
hot sales water Radiant heating room thermostatUS$ 15.00/piece

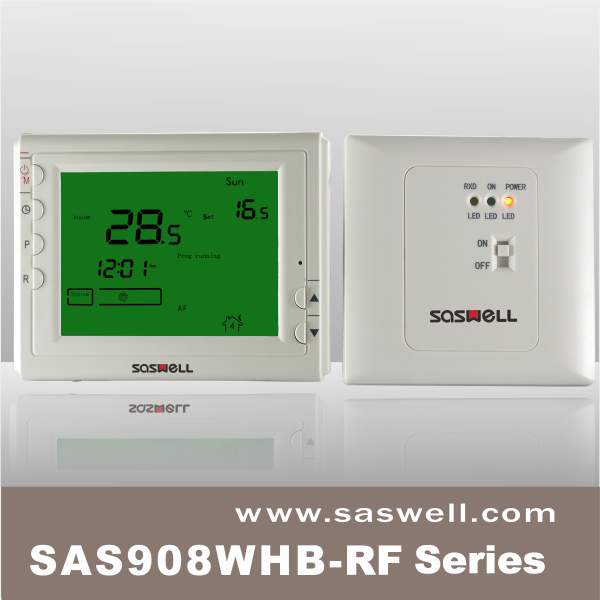

weekly programmable wireless thermostatUS$ 32.00/piece
