Product Description
Description:

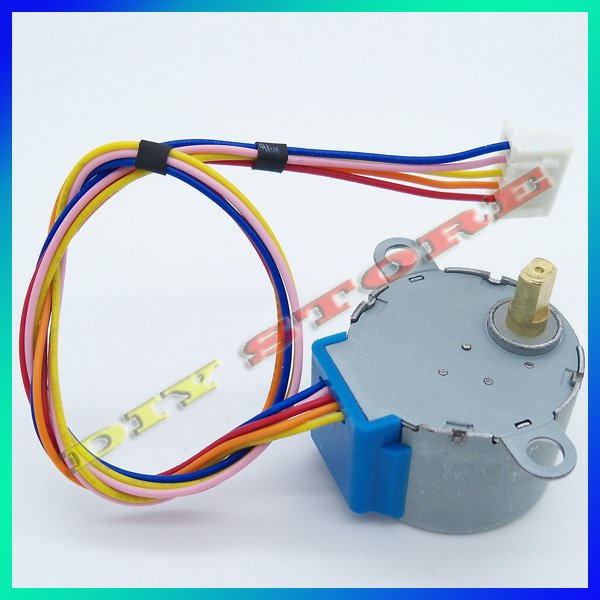

5V 4-Phase 5-Wire Stepper Motor+Driver Board
- Rated Voltage: DC5V
- 4-phase
- Reduction Ratio: 1/64
- Step Torque Angle: 5.625/64
- DC Resistance: 200Ω±7% (25Degrees Celsius)
- Insulation Resistance: >10MΩ (500V)
- Dielectric Strength: 600V AC / 1mA / 1s
- Insulation Grade: A
- No-load Pull in Frequency: >600Hz
- No-load Pull out Frequency: >1000Hz
- Pull in Torque: >34.3mN.m
- Detent Torque: >34.3mN.m
- Temperature Rise: <40K(120Hz)
- Noise: <40dB (120Hz, No load, 10cm)
- Board Size: Approx. 29 ×21 mm
Package Includes:
- 1 x Stepper motor with driver board
