8 Channel Surveillance DVR 8pcs CMOS 480TVLSecurity Camera CCTV System
Item specifics
- Place of Origin:
- China (Mainland)
Product Description







Introduction

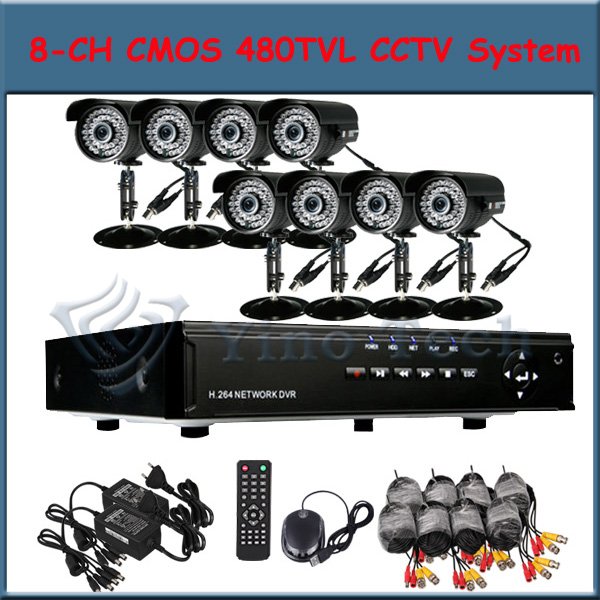

The CCTV Systems includes a 8CH H.264 Real-time Recording Network DVR and 8pcs 480TVL CMOS indoor/outdoor Weatherproof IR Day&Night surveillance Cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.
The DVR is a 8 channel, fully integrated, real time, and hardware based standalone digital video recorder. This standalone DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation. With network access, VGA video output, and USB2.0 backup, this DVR is perfect for the home or small business. The DVR also features the most updated 3G mobile live! Preview via mobile phone.
The cameras included in the kit are 1/3 inch CMOS 480TV Line,3.6mm Lens(Wide Angle) 36PCS IR Led Outdoor Camera. All cables and power supplies are included.
The CCTV Systems Protect your Home or small Business, Safe Life - So easy!
DVR Features:
* video compression format is the second-generation H.264 (Main Profile);
* Support Up to 1x 2TB;
* support the six operation working simultaneously, recording, playback, network transmission, backup, mobile phone surveillance and interface operating;
* Support Window Mobile, Symbian, Android, iPhone, BlackBerry;
* come with a dynamic domain name, don't need to apply for it. Automatically through the router, do not need to manually map the ports.

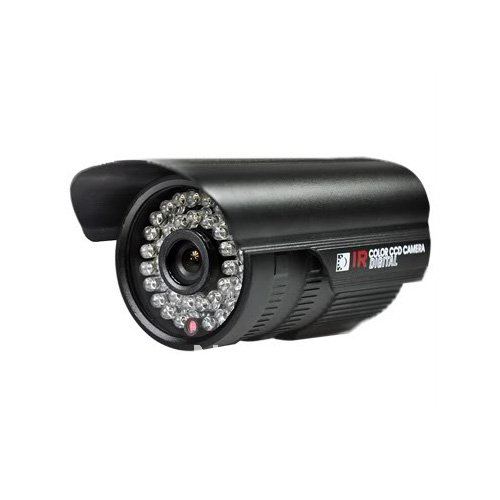

Camera Features:
* 1/3inch color CMOS Chip
* 480 TV Lines Horizontal Resolution
* 3.6mm Lens (Wide Angle)
* 36PCS IR Leds
* IP66 IP Rate
DVR Specification | |
Video Compression | H.264(Main Profile) |
Picture Standard | PAL: 720 x 576 / NTSC: 720 x 480 |
Resolution Encoded | CIF |
Video Input | BNC x 8, 1.0Vp-p/75? |
Video Output | BNC x 1,VGA x 1 |
Recording Frame Rate | PAL:200FPS, NTSC:240FPS |
Audio Input | RCA x 1 |
Audio Output | RCA |
Audio encoded standard | ADPCM |
Audio encoded Rate | 32kbps |
Record Mode | Manual record, motionrecord and externa alarm record |
Mult Mode | Record, Play, Internet |
Playback | 8CH playback simultaneously |
Network Port | RJ45 10M/100M |
PTZ Port | RS485 |
Hard Disk Port | 1 SATA up to 2TB |
USB Port | 2 x USB port, Support Mouse, U disk and USB portable hard drive disk |
VGA Port | 1 x VGA port, Surpport up to 1024*768/60Hz Resolution |
Power Supply | 12V/3A DC |
Operational Temperature | 0 Degree C~+60 Degree C |
Operational Humidity | 10%~90% |
|
|
Camera Specification | |
Image Sensor | 1/3 inch Color SONY CCD |
Effective Pixels | PAL: 628(H) x 582(V) |
Horizontal Resolution | 600 TV Lines |
Lens | 3.6mm |
Min. Illumination | 0.0 Lux |
IR Led | 36PCS |
BL/WB/AGC | Auto |
IP Rate | IP66 |
S/N Ratio | > 45.6dB |
Shutter Speed | 1/50(1/60)~1/1000.000s |
++ Package included ++
1 x 8CH H.264 Network Digital Video Recorder
8 x 480TVL 36IR Leds Weatherproof Cameras
8 x 20M Power Video Plug and Play Cable for CCTV Camera
2 x 12V/2000mA 4 Port Power Supply for CCTV Camera
1 x Mouse for DVR
1 x Remote Control for DVR
1 x DC12V Power Adapter for DVR
8 x Weatherproof Bracket for CCTV Camera
1 x User manual
1 x CD
In original package
* Hard drive is not included
