Card Type Multimeters APPA iMeter 5 5pcs/lot +Free Shipping

Price:
US $245.00 / lot
5 pieces / lot , US $49.00 / piece
Bulk Price
5% off (10 lots or more)
Shipping:
Delivery: days (ships out within 5 business days)
Quantity:
lot (999 lots available)
Purchases are limited to 999 lots
Total Price:
Depends on the product properties you select
US $ (Approximately )

This product can't be shipped to the selected country.

Item specifics

Power:
Electronic
Brand Name:
APPA
Model Number:
APPA iMeter 5
Usage:
Other
Color:
Orange & Grey
Place of Origin:
China (Mainland)

Product Description

 .JPG

APPA 5-5

APPA 5-4

APPA 5-2

APPA 5-3

APPA 5-1

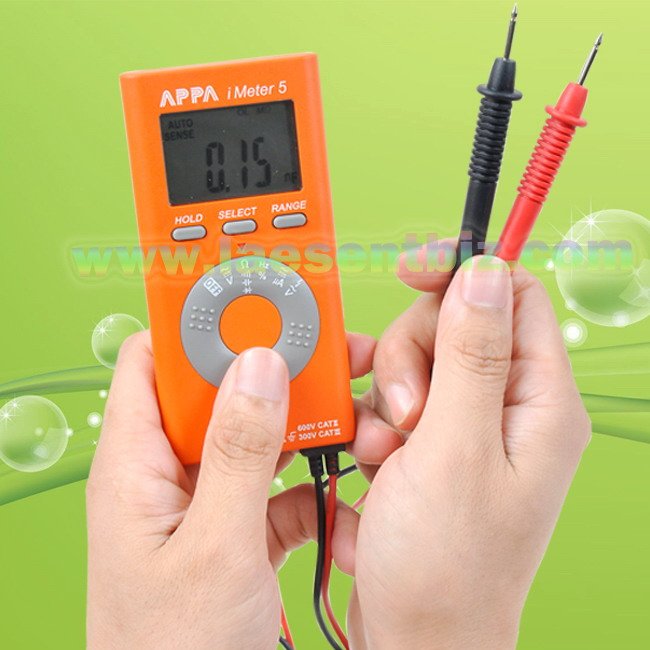

 Card Type Multimeters APPA iMeter 5 5pcs +Free Shipping




 Specifications
 Voltage AC
  APPA iMeter 3 & iMeter 5
  Range:
                                               400.0mV~600V
  Basc Accuracy:                               +/-(0.9%+5d) at 50Hz~500Hz
  Input Impedance:                             10M?//100pF
  Overload Protection                        600V rms
  Conversion Type:                             Average sensing RMS indicating

 Voltage DC
  APPA iMeter 3 & iMeter 5
  Range:
                                               400.0mV~600V
  Basc Accuracy:                               +/-(0.6%+2d)
  Input Impedance:                            10M?
  Overload Protection                       600V DC

 Current AC
  APPA iMeter 5
  Range:
                                               400.0uA, 4000uA
  Resolution:                                       0.1uA
  Basc Accuracy:                               +/-(0.9%+5d) at 50Hz~500Hz
  Input Protection:                              600V rms
  Conversion Type:                             Average sensing RMS indicating

 Current DC
  APPA iMeter 5
  Range:
                                               400.0uA, 4000uA
  Resolution:                                       0.1uA
  Basc Accuracy:                               +/-(0.9%+5d) at 50Hz~500Hz
  Input Protection:                              600V DC

 Resistance
  APPA iMeter 3 & iMeter 5
  Range:
                                               400.0?~40.00M?
  Resolution:                                       0.1
  Basc Accuracy:                               +/-(0.9%+2d)
  Overload Protection:
                       600V rms

 Continuity Beeper
  APPA iMeter 3 & iMeter 5
  <150?, 2k Hz tone buzzer

 Diode Test


  APPA iMeter 3 & iMeter 5
  Open circuit voltage:
                      2V



 Frequency Counter
  APPA iMeter 3
  Range:
                                               5Hz~5MHz
  Resolution:                                       0.001Hz

  APPA iMeter 5
  Range:                                              40Hz~4MHz
  Resolution:                                       1Hz
  Basc Accuracy:                               +/-(0.3%+5d)
  Overload Protection:                      600V rms

 Duty Cycle
  APPA iMeter 3 & iMeter 5
  Range:                                              0.1%~99.9%
  Resolution:                                      0.1%
  Basc Accuracy:                               +/-(0.5%+3d)
  Overload Protection:                      600V rms

 Capacitance


  APPA iMeter 3
  Range:
                                               50nF~100uF

  APPA iMeter 5

  Range:                                               40nF~4mF
  Resolution:                                        0.01nF
  Basc Accuracy:                               +/-(2.9%+5d)
  Overload Protection:                      600V rms


 General Specificatoins
 Sampling Rate:  3 times/sec
 Overload Indication:  "OL", "-OL"
 Low Battery Indication:
 Auto Power Off:  Approx. 30 minutes (iMeter 3), Approx. 20 minutes (iMeter 5)
 Operating Temperature:  -20?~50?, <80% RH
 Storage Temperature:  -20?~60?
 Temperature Coefficient:  0.15(Spec. Acc.)/, <18C or >28C
 Safety:  IEC 61010 and designed to meet UL61010 specifications
  CAT. II600V/CAT. III 300V
 Power Requirement:  LR44 Button Size 1.5V x 2 batteries
 Battery life:
 (In hours button size battery)
 300 (iMeter 3), 100(iMeter 5)
 Size: 56mm(W) x 112mm(L) X 12mm(H)
 Weight: In grams 100

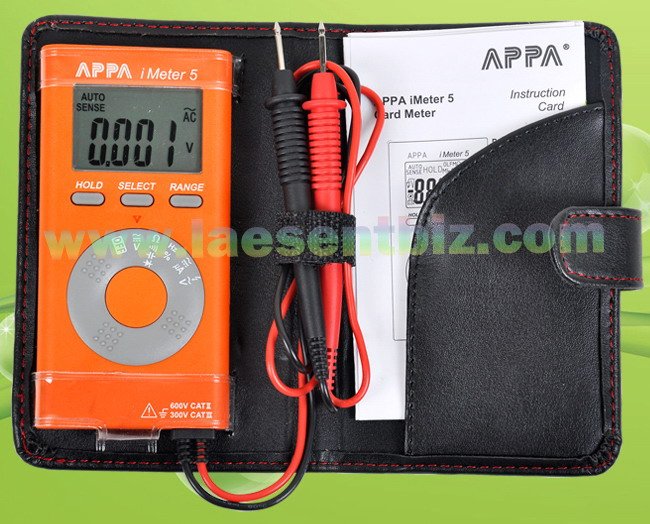

 Included with Instrument: Deluxe carrying wallet and integral safety test leads
 Button size battery (Installed) and manual



Packaging Details

Unit Type:
lot (5 pieces/lot)
Package Weight:
0.500kg (1.10lb.)
Package Size:
24cm x 16cm x 5cm (9.45in x 6.30in x 1.97in)
