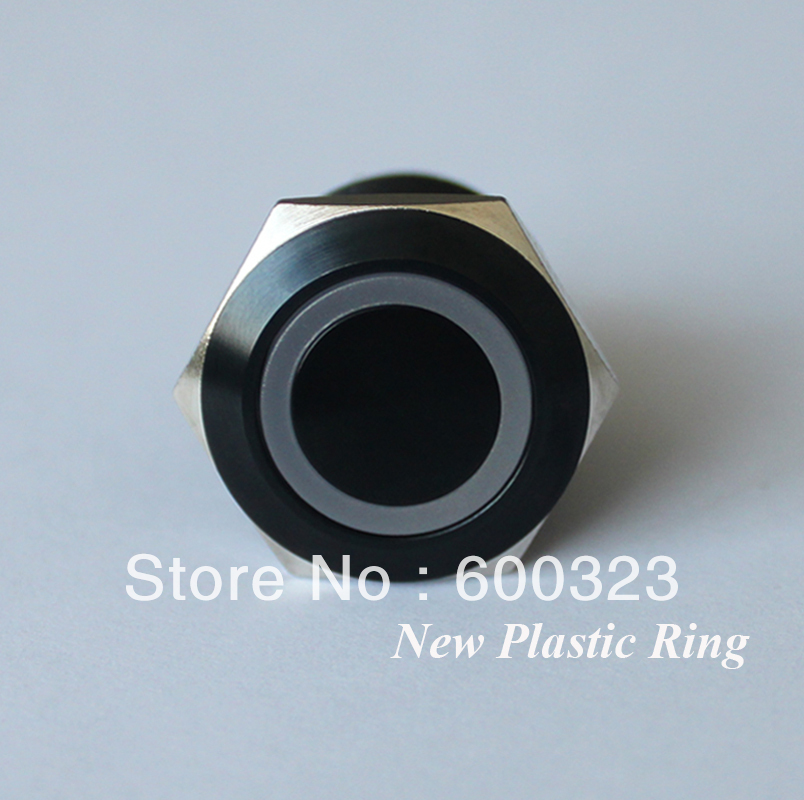

Green Ring illuminated Metal Push Button Switch L19A (dia.19mm) Black Aluminum 1NO1NC
- Processing Time:
- Shiping out within 5 days
Item specifics
- is_customized:
- Yes
- Brand Name:
- Langir
- Max. Voltage:
- 250Vac
- Max. Current:
- 5A
- Protection Level:
- IP65
- Model Number:
- L19AF-Z1-A-R-G-12V
- Material:
- Black Aluminum
- LED color:
- Red, Green, Blue, Yellow, White, Orange
- Place of Origin:
- Zhejiang, China (Mainland)
Product Description
Black Aluminum body Pushbutton Swtich ( Dot & Ring illuminated available )
Φ19mm diameter Front Shape: Flat Round IP Degree: IP65 Z = Latching; M = Momentary | Φ19mm diameter Dot illuminated IP Degree: IP65 Z = Latching; M = Momentary | Φ19mm diameter Non-illuminated IP Degree: IP65 Z = Latching; M = Momentary | |||
| Model | L19AF-◊♦-A-R- | Model | L19AF-◊♦-A-D- | Model | L19AF-◊♦-A |
| Contact Structure | 1NO1NC/2NO2NC | Contact Structure | 1NO1NC/2NO2NC | Contact Structure | 1NO1NC/2NO2NC |
| Front Shape | Flat Round | Front Shape | Flat Round | Front Shape | Flat Round |
| Terminal Type | Pin Terminals(2.8x0.5mm) | Terminal Type | Pin Terminals(2.8x0.5mm) | Terminal Type | Pin Terminals(2.8x0.5mm) |
| Switching | No.3 | Switching | No.3 | Switching | No.3 |
| Max. Switch Rating | 5A/250V AC | Max. Switch Rating | 5A/250V AC | Max. Switch Rating | 5A/250V AC |
| Contact Resistance | ≤50mΩ | Contact Resistance | ≤50mΩ | Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000mΩ | Insulation Resistance | ≥1000mΩ | Insulation Resistance | ≥1000mΩ |
| Dielectric Strengh | 2000VAC | Dielectric Strengh | 2000VAC | Dielectric Strengh | 2000VAC |
| Operation Temp. | -20°c ~ +55°c | Operation Temp. | -20°c ~ +55°c | Operation Temp. | -20°c ~ +55°c |
| Mechanical Life | 1, 000, 000cycles | Mechanical Life | 1, 000, 000cycles | Mechanical Life | 1, 000, 000cycles |
| Electrical Life | 50, 000cycles | Electrical Life | 50, 000cycles | Electrical Life | 50, 000cycles |
| Contact Material | Silver Alloy | Contact Material | Silver Alloy | Contact Material | Silver Alloy |
| Panel Thickness | 1~10mm | Panel Thickness | 1~10mm | Panel Thickness | 1~10mm |
| Torque | 5~14Nm | Torque | 5~14Nm | Torque | 5~14Nm |
| Operation Pressure | 3~5N | Operation Pressure | 3~5N | Operation Pressure | 3~5N |
| IP Degree | IP65 | IP Degree | IP65 | IP Degree | IP65 |
| Material | |||||
| Button | Black Aluminum | Button | Black Aluminum | Button | Black Aluminum |
| Body | Body | Body | |||
| Base | PBT | Base | PBT | Base | PBT |
| LED Spec. | |||||
| Type | Ring Illuminated(LED) | Type | Dot Illuminated(LED) | Type | - |
| Rated Voltage | 6V/12V/24V/110V/220V | Rated Voltage | 6V/12V/24V/110V/220V | Rated Voltage | - |
| Color | Red, Green, Blue, Yellow, White, Orange | Color | Red, Green, Blue, Yellow, White, Orange | Color | - |
| Life | 40, 000hours | Life | 40, 000hours | Life | - |
| RoHS Available | |||||
Terminal Arrangement
Packing: 40pcs as per box
Dimension
Dia.22mm Mounting Hole Available:
Dia.16mm Mounting Hole Available
Dia.19mm Mounting Hole Available
