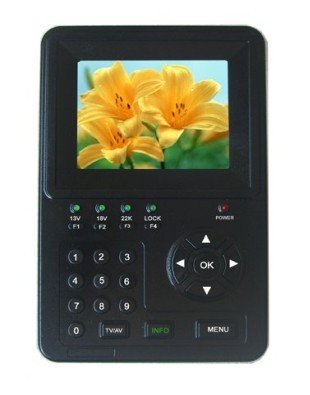

KPT-966(3.5 " LED Handheld Multifunctional Monitor)Satellite Finder

Product Description

Product Description

2012NEW STYLE 3.5 Inch TFT LED Handheld Multifunctional Monitor/Satfinder meter KPT-966

We sincerely want to thank u for your interest in our products. We hope to develop a strong,long-term, mutually beneficial relationship with u by providing u low cost, best service and quick delivery.

Specification

Screen:TFT LED 3.5"(89mm)

Display size:155*89mm

Dots pixels:320*240(230400Pixes)

LNB input: F type female head.

Input impedance: 75 Ω (F)

Frequency range: 950MHz-2150MHz

Signal level:-65dBm~-25dBm

LNB Power supply: 13/18V, max400mA

LNB Switch control: 22 KHz

DiSEqC: 1.2 edition

Demodulation chip: QPSK(SCPC and MCPC compatible)

Symbol rate: 2Mbps~45Mbps

System processor: 32bit processor(200MHz)

SDRAM: 16Mbyte

Threshold: 4.1dB

FLASH: 4Mbyte

Video: MPEG-2 Main Level
Rate: up to 15M bits/s

Image analysis: 720*576,720*480

Voice patterns: single channel

Sampling rate:32,44.1 and 48KHz
Lithium battery:DC 11.1V  2200mAh(built-in)

Input voltage: DC12.5V 1.5A;
Dimensions:110*170*38mm

Weight: 390g (including battery pack)

Features&Functions

It is professional equipment for engineering and technicians to receive satellite TV channels and with AV input/AV Output function, can connect other AV device

Menu Languages:  English, French, Russian, Arab, Persian, Portugal, and Turkey

Built-in 2200mAh Li-lon battery, do not need an external power supply, working time is about 3-4 hours, AV output and input function.

Support PC upgrade via USB-RS232 CABLE

Satellite images and signal quality can be displayed through the LCD screen.

Unique satellite search guidance function, built-in satellite finder management

With high frequency protection circuit head, external short circuit alarm, 13V/18V/22K/Signal lock

indicator, located in machine panel and can be displayed simultaneously.

Accessories

1. 12.5V 1.5A DC adapter

2. Bag

3. LNB (F Quick plug)

4. Car charger (optional)

5. USB Cable (optional)

Built-in Satellite finder management

13V18V/22K/Signal lock instruction

LNB circuit short alarm

If users need to store a satellite name or search again, they only need to check signal quality

directly after the name of satellite turn up.
