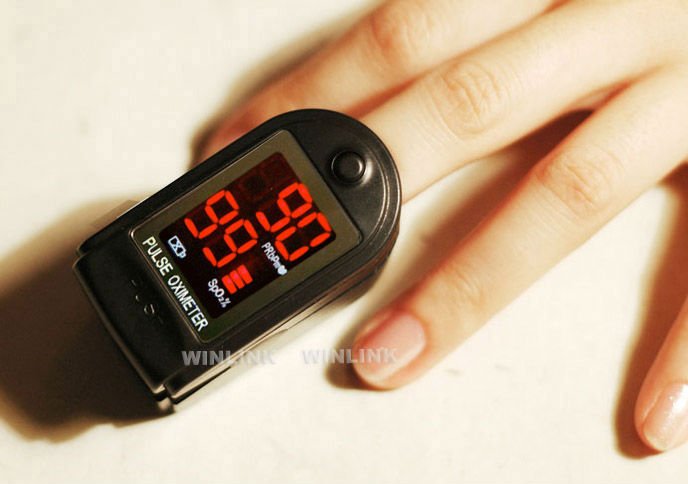

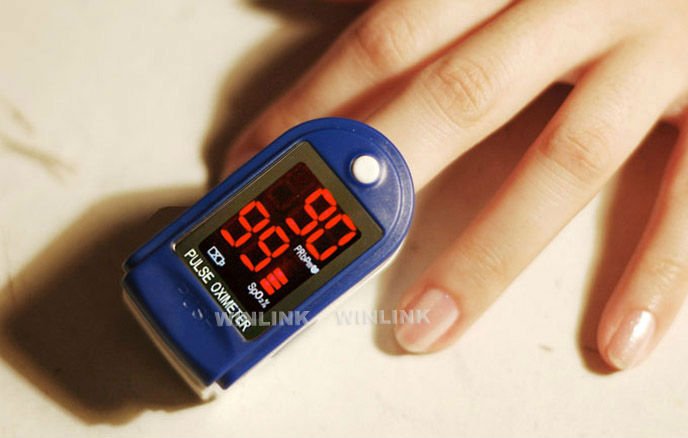

This portable Pulse Oximeter and Heart Rate Monitor is a battery operated pulse oximeter that also displays your heart rate. It measures the saturated level of oxygen in your blood using photoplethysmography, and measures your heart beat per minute by optically obtained plethysmograph which illuminates the skin and measures changes in light absorption.
The Fingertip PulseOximeter is registered on theAustralian Register of Therapeutic Goods (ARTG) with the code 136606, and certified by FDA of United States and CE,TUV of Europe Finger
Pulse Oximeter Blood Oxygen Monitor in Yellow.
A pulse oximeter is a medical device that indirectly measures the oxygen saturation of a patients blood (as opposed to measuring oxygen saturation directly through a blood sample) and changes in blood volume in the skin, producing a photoplethysmograph. It is often attached to a medical monitor so staff can see a patients oxygenation at all times. Portable battery-operated pulse oximeters are also available for home blood-oxygen monitoring.
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.
Operation of the product is simple and convenient Small in volume, light in weight and convenient in carrying High veracity and repetition The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports High measuring accuracy in the condition of weak filling condition and surrounding light.
?Alarm Range:0~100%(merely applied to pulse oximeter with alarm function)
?Measurement Range:25~250 bpm
?Accuracy: ±2% (70%~ 99%), unspecified (<70%) for SPO2, ±2 bpm or ± 2% (select larger)
?Alarm Range:0~254 bpm(merely applied to pulse oximeter with alarm function)
?Display mode: Color OLED Display
?Power Supply:Two 1.5V (AAA size)alkaline battery
?Battery Voltage: DC2.6V~3.6V
?ASpO2, Pulse Rate, Bar Graph
?Low battery capacity indication
?Automatically power off function
?Various color of cover can be selected
Color: Black,yellow Blue (The color is random when delivery)
External Material: Hard Moulded ABS Plastic
Display mode: LED display
SPO2: 35 - 99%
Pulse Ratio: 30 - 250BPM
Resolution: 1% for SPO2, 1BPM for pulse ratio
Accuracy: +/- 2% (70% - 99%), unspecified (<70%) for SPO2, +/- 2BPM or +/- 2% (select larger) for pulse ratio.
Power Requirements: Two AAA alkaline batteries (Not Included)
Battery consumption: Two AAA 1.5V, 600mAh alkaline batteries can be continuously used as long as 30 hours
Optical Sensor: Red Light wavelength 660nm, Infrared wavelength 880nm
Operating Temp: 0-50 Centigrade
Storage Temp: -10 - +60 Centigrade
Storage Humidity: 10% - 95% RH
Dimension: L:58 x W:32 x H: 34 (mm)
Low Battery indication
Can measure SPO2 and PR accurately
Compact size, light, and convenient to carry
SPO2 and PR display, and bar graph display
Power off automatically when no signal after 5 seconds
Integrated with SPO2 probe and processing display module
Interference resistance capacity against ambient light and measurement performance at low perfusion
Note: This finger pulse oximeter will NOT monitor SPO2 during active movement. You must stop your current activity and take the reading while in a stationary position
Pulse Oximeter and Heart Rate Monitor
Carry on bag
User Manual - English
pls leave a message on your order remarks to confirm the color, thanks for your cooperation. color option: Black/ Pink / Blue / White / Yellow.
FAQ - Frequently Asked Questions
What is a photoplethysmograph?
A photoplethysmograph is an optically obtained plethysmograph, which is a volumetric measurement of an organ. This is often obtained by using a pulse oximeter which illuminates the skin and measures changes in light absorption and monitors the perfusion of blood to the dermis and subcutaneous tissue of the skin. (To learn more about the wonders and processes on how photoplethysmography work, please visit
What is a Pulse Oximeter?
A pulse oximeter is a medical device that indirectly measures the oxygen saturation of a patient's blood (as opposed to measuring oxygen saturation directly through a blood sample) and changes in blood volume in the skin, producing a photoplethysmography
