Launch X431 IV Introduction:
X-431 IV is an classic,economical,simple,steady vehicle diagnostic tool newly released by Launch. It follows the open platform of X431 series, also it inherits many advantages of X431 including a wide coverage of vehicle models, powerful testing functions and accurate test data. At the same time,the unique rotatable diagnostic connector design is convenient for use's operating.It's a cost-effective diagnostic product on the market.
Launch X431 IV Feature:
a)Diagnostic functions: trouble diagnosis of automotive ECU's; (Features including: read trouble code, clear trouble code, read data stream and special features), the diagnostic software completely consistent with that of X431, fully inherited the advantages of X431 including wide coverage of vehicle models and high precision test;
b)PDA functions: (handwriting with stylus, personal data management, English-Chinese dictionary, etc.);
c)Optional functions: creation of repair files and access to maintenance data);
d)Mini printer (can be used with X431PCCENTER to connect to the computer for storage of vehicle test data
Launch X431 IV Specification:
Operating system: LINUX operating platform
CF card: 1G
Host power supply: DC12V
Host power: about 9W
Printer: Mini high-speed thermal printer
Display: large 240 320 touch inductive LCD screen, with backlight
Ambient temperature :-10-55
Relative Humidity: <90%
Product Dimension: 198mm 316mm 55.5mm
Demo,Smart diagnostic software,Smart OBDII
America: America Ford,Chrysler,GM,Acrus,INFINITI,Lexus.
Australia: Australia Ford,Holden
Brazil: Brazil GM
India: Indonesia Daihatsu,Indonesia Suzuki,Mahindra,MARUTI,TATA
Japan: Daihatsu,Hon da,JPIsuzu,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota
Europe: Au di,Ben z,BM W, Citroen, Europe Ford,Fiat,Jaguar,Lancia,Landrover,Opel,Peugeot,Porsche,Renault, Romeo, Rover,Saab,Seat,Skoda,Transporter&V-Class,Volkswagen,Volvo
China: Brilliance,BYD,Changan,ChangCheng,Changhe,Chery,GEELY,Gonow,HaFei,JAC,Jiangling, SGMW,Tianjin,Xiamen Golden,XinKai,ZhongShun,Zhongxing,ZOTYE
S.Africa: S.Africa Opel
Thailand: Thailand Isuzu
1, Diagnostic connector (rotatable)
2, SMARTBOX Power indicator
3, Indicator to show SMARTBOX sending data to the main unit
4, Indicator to show SMARTBOX receiving data from the main unit
5, Indicator to show SMARTBOX sending data to ECU
6, Indicator to show SMARTBOX receiving data from ECU
7, Serial port (to connect with PCLINK for extending functions)
8, Touch screen
9, HOTKEY button
10, Power button
11, Printer LF button (paper feed)
12, Printer ready indicator
13, Paper out (printed the data)

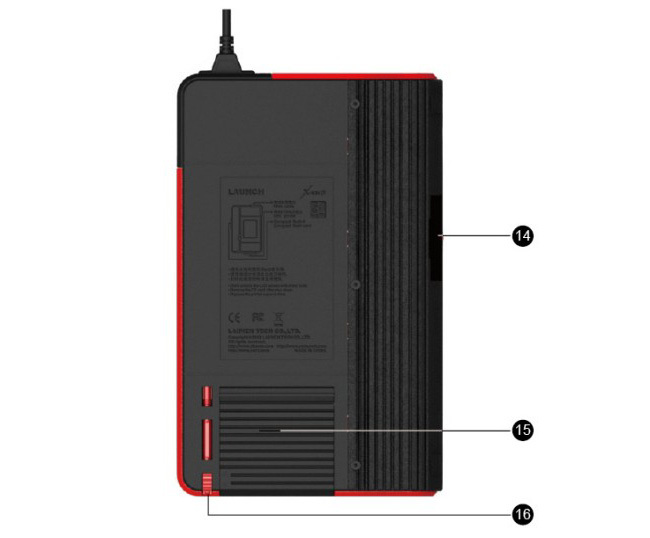

14, CF card slot (to install CF card)
15, Printer cover (to install printing paper)
16, Stylus slot ( to place the stylus)

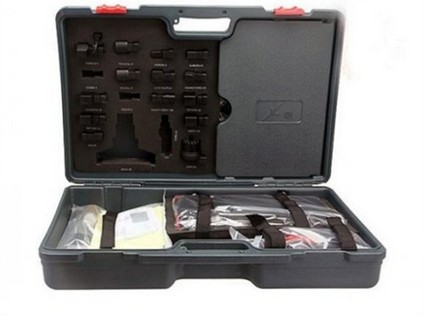

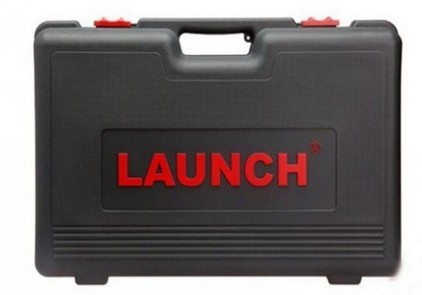

Item picture :
