Quality Guarantee Siamese cable MOQ 300M RG59 Coaxial Cable with Power Cable for CCTV Security Camera Description:
Inner conductor: 20AWG (4.5mm)Copper
Dielectric: 3.7mm Foam PE
Shield: 128*0.12mm 96% Braids Copper
PVC Jacket O.D.: 6.0+4.5mm Black or White
Power Cable 18AWG (20AWG) 2 x7 x0.2mm
Characteristic Impedance:70 ohms
Max. operating voltage:300V
Max. temperature of operation in conductor: 75degree Celsius
PVC can be also meet the UL, CUL, CE, and ROHS
Without any connectors or plugs
Please note: Our RG59 CCTV Security Camera Siamese cable ( Coaxial Cable &Power Cable) promise:
1, Copper, conductor&cords must be copper
2, It must be 300M
3,It must be PVC Jacket
4,It must be 96 Braids
5, It must be PE
6, You can leave the message of the color, we will produce as your demand. But the copper specification must accord with this description because different specification has different price.
7, Or here the more specification to refer, you can contact us if you need.
♦Please contact us if you need the best wholesale price and the cheapest shipping way.

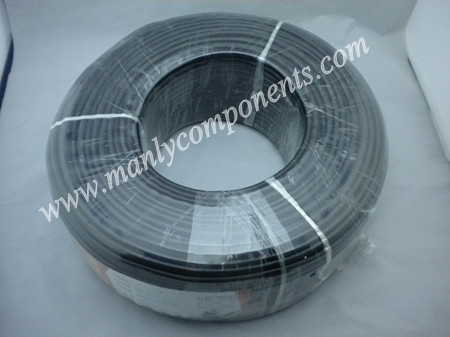

♦Photos are taken by Manly Components Co., Ltd.
Video Cable & Maximum Distance
All professional grade systems use video coax cable to transmit the video from the security camera to the recorder. The maximum distance the security cameras can be from the recorder is a function of the cable rather than the camera itself. Using RG59 coax cable you can extend the camera out to 600 feet. Using RG6 coax cable you can run up to 1,000 feet. Cable is available in 500' boxes or pre-made cables 100', 65', 35' lengths.
Making a BNC Fitting
- Strip away all of the cable and shielding so you have 1/2" of the center conductor exposed.
- Then strip away the black covering so you have 1/4" of the shielding exposed. Do not allow any of the copper shielding to touch the center conductor.
- Insert the cable into the fitting and gently find the hole for the center conductor before you press the fitting on the wire.
- Now just twist the fitting on the wire while firmly pressing down until the fitting has been firmly twisted onto the cable.
Connecting Coax Cables
BNC fittings are used to connect the cable to both the camera and the recorder, multiplexer or monitor. You simply push the fitting on the video port and turn it, it couldn't be easier.
