micro wind grid tie 300W inverter for wind turbine generator system dc12V or 24V 22-60V to 220vac 3 phase

Rated 5.0/5 based on 2 customer reviews 100.0% of buyers enjoyed this product! (2 votes) 1 order
Price:
US $185.68 / piece
Shipping:
Delivery: days (ships out within 21 business days)
Quantity:
piece (999 pieces available)
Purchases are limited to 999 pieces
Total Price:
Depends on the product properties you select
US $ (Approximately )

This product can't be shipped to the selected country.

Item specifics

Output Type:
Single
Output Power:
201 - 300W
is_customized:
Yes
Type:
DC/AC Inverters
Brand Name:
MASSPOWER
Size:
295mm*190mm*100mm
Input Voltage:
10.8V - 30V/22V - 60V
Output Current:
others
Output Voltage:
90V - 130V/190V - 260V
Output Frequency:
46Hz ~ 65Hz
Weight:
1.9KGS
Model Number:
SUN-300G-WAL/WDL
output wave form:
pure sine wave
MPPT function:
yes
Warranty:
1 year
Certificate:
CE
Place of Origin:
Zhejiang, China (Mainland)

Product Description

 300W Wind on Grid Tie Inverter

    AC or DC input to AC output

Attention:

Dear friends, when you order, please leave me a message to tell me your requirements about the input and output voltage and the output frequency of the inverter, you just need to make choices:

input voltage:  AC                    OR     DC

input voltage: 10.8V~30V        OR     22V ~ 60V

output voltage: 120V AC          OR    230V AC

output frequency: 50Hz            OR     60Hz



               Introduction



The grid-tie inverter can transfer wind energy from wind generators directly into the home grid, using no extra equipment. It can be connected to any outlet (conventional network) in the house. The grid-tie inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine-wave and matches that of the grid.
The model of WA has build in bridge rectifier, and the model of WD has input reverse protection. All models have a high voltage protection function: when the wind is too big, the grid tie inverter will disconnect itself from the wind turbine, so it is very safe to be used.

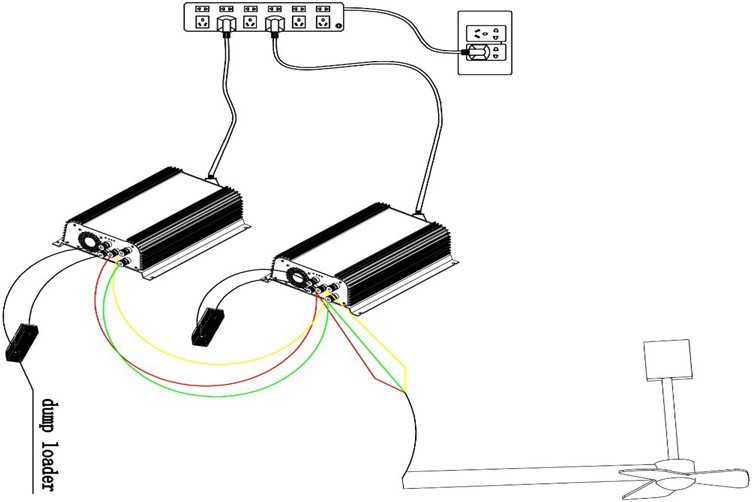

wind GTI connection

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

       Technical Data:SUN-300G-WAL

Model

SUN-300G-WAL

Normal AC Output Power

270W

Maximum AC Output Power

300W

AC Output Voltage Range

220V/230V/240V

190V ~ 260V

110V/120V

90V ~ 130V

AC Output Frequency Range

46Hz ~ 65Hz

Total Harmonic Distortion(THD)

<5%

Power Factor

0.99

AC Input Voltage Range

10.8V~30V   or

22V ~ 60V

Peak Inverter Efficiency

92%

Standby Power consumption

<1.5W

Output Current Waveform

Pure Sine-wave

MPPT Function

Yes

Over Current Protection

Yes

Over Temperature Protection

Yes

Reverse Polarity Protection

Yes

Island Protection

Yes

Stackable

Yes



N.W

      1.7Kg

G.W

      1.9Kg

Dimension

      295mm*190mm*100mm



                 Layout : SUN-300G-WAL



There  are  3 red  terminals will be connected to the three phase output from the wind

turbine.



There are 4 LED indicators,3 green indicators and 1 red indicator, 3 green LED indicators

will start to cycle from left to right when the grid and AC input supply is detected.



This indicates the inverter is operating under normal condition. The rate of the cycling

is according to how much power is being output from the wind turbine.



The bigger the output power is, the faster the rate is. If there is no AC grid detected, the

red LED will be on, the inverter will not put out power, this is called “Island Protection”.















--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



       Technical Data:SUN-300G-WDL

Model

SUN 300G-WDL

Normal AC Output Power

270W

Maximum AC Output Power

300W

AC Output Voltage Range

220V/230V/240V

190V ~ 260V

110V/120V

90V ~ 130V

AC Output Frequency Range

46Hz ~ 65Hz

Total Harmonic Distortion(THD)

<5%

Power Factor

0.99

DC Input Voltage Range

10.8V~30V   or

22V ~ 60V

Peak Inverter Efficiency

92%

Standby Power consumption

<1.5W

Output Current Waveform

Pure Sine-wave

MPPT Function

Yes

Over Current Protection

Yes

Over Temperature Protection

Yes

Reverse Polarity Protection

Yes

Island Protection

Yes

Stackable

Yes

N.W

          1.7Kg

G.W

          1.9Kg

Dimension

          295mm*190mm*100mm



               Layout : SUN-300G-WDL



There  are  4  terminals  on  the  left  side  of  the  inverter, 2 terminals  will  be connected to the DC output from the wind turbine, and 2 black terminals will be

connected to dump load resistors.



There are 4 LED indicators, 3 green indicators and 1 red indicator.

The 3 green LED indicators will start to cycle from left to right when the grid and

AC input supply is detected.  This  indicates  that  the inverter is operating under

normal condition.  The rate cycling is according to how much power is being output from the wind turbine.



The bigger the output power is, the faster the rate is.  If there  is  no  AC  grid

detected, the red LED will be on, the inverter will not put out power,this is called

“Island Protection”.













 5.250w wind GTI .jpg



--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Warranty: 1 year

CE certified



CE 2_.jpg



                Company Profile



Founded in 2003, Ningbo National Hi-Tech Park Sunshine Technology Co., Ltd

specializes in research, design,development, manufacturing and marketing of solar

wind turbine power products and related components.



Having been led by professors and senior engineers for 6 years, nowadays we have

become one of the leading manufacturers and have developed a series of products,

such as off-grid inverters,solar grid tie inverters,wind turbine grid tie inverters,solar

panels, controllers, etc.



Our technical team, by timely following up market trend and studying customers' needs,

is continuously designing and developing new products.

Our quality control team ensures every procedure is under strict quality control.

Our professional marketing team who are dedicated and experienced offer the best

best service to satisfy our customers’ needs.

Our products are very well accepted by our customers from all over the world owning to

our innovation, value and service.

We are good at designing and producing small solar and wind power systems.

We offer the best solutions for home and public electricity generating plan.



We sincerely welcome our friends and customers to cooperate with us.

OEM & ODM orders are also welcomed.

It is our dream and mission to make a "Green world, Clean world".













1.Worldwide

2.Transport time:

  By Express: Generally, about 5-10 working days

    By Airmail:  Generally, about 15-25 working days

    (Note:We will charge extra shipping fee if you location is remote or we will use other delivery way)

3.We ship to Alixpress's address ONLY. Please make sure your address in Alixpress is correct  before you pay.

4. The following is the approximate shipping time to different regions:

 transport time.jpg



Our after sales service will keep tracking it and send messages to you when there is any delay in shipping.







 Remarks:

Dear friends, when you order, please leave me a message to tell me your requirements about the input and output voltage and the output frequency of the inverter, you just need to make choices:

input voltage:  AC                    OR     DC

input voltage: 10.8V~30V        OR     22V ~ 60V

output voltage: 120V AC          OR    230V AC

output frequency: 50Hz            OR     60Hz





Please also leave me a message to let me know the value of the product you want us to declare when you place an order, though we can not guarantee we can declare as you indicate, we will try

our best to satisfy you. And we are not be responsible for the

import tariff,you must pay for the tariff by yourselves.





The customers who are from Brazil please leave CPF number

or CNPJ  number or the number needed for import.





Thank you very much for your cooperation! Jennifer wish you



happy every day!
