What Are Spark Plugs?
Spark plugs are small but vital components in internal combustion engines. They ignite the air-fuel mixture within the engine's combustion chamber by creating an electric spark across a gap at the tip of the plug. This ignition process is what powers the engine and keeps your vehicle running smoothly. There are various types of spark plug tool, including standard copper, iridium, platinum, and double platinum. Each type offers different levels of durability and performance, which can influence the kind of tool needed for installation or removal.
The condition of your spark plugs directly affects engine performance, fuel efficiency, emissions, and even starting capability. Worn or faulty spark plugs can lead to misfires, rough idling, poor acceleration, and increased fuel consumption.
Types of Spark Plug Tools
Basic Hand Tools for Spark Plug Work

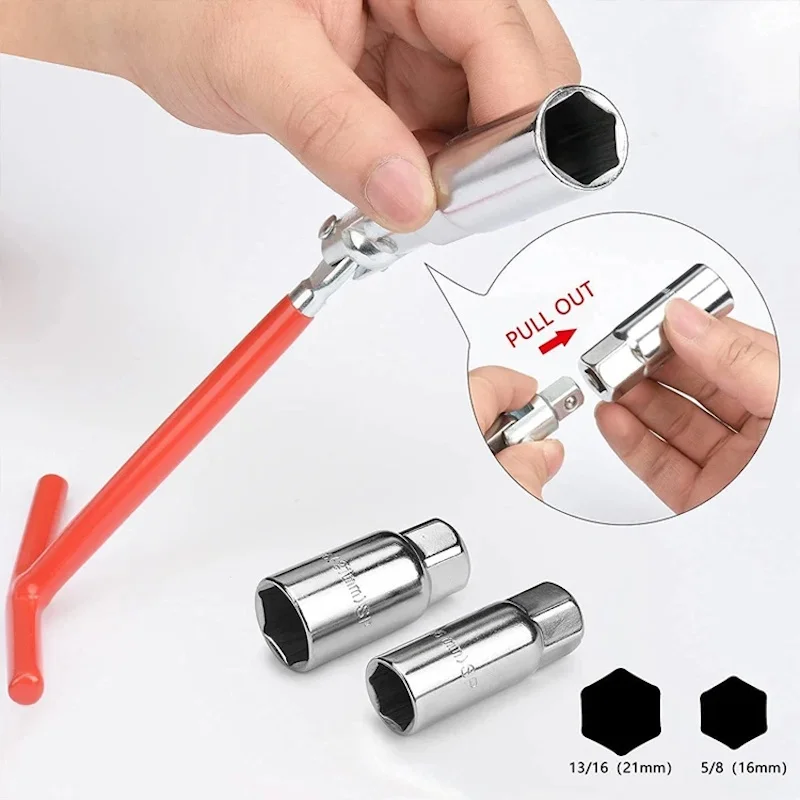

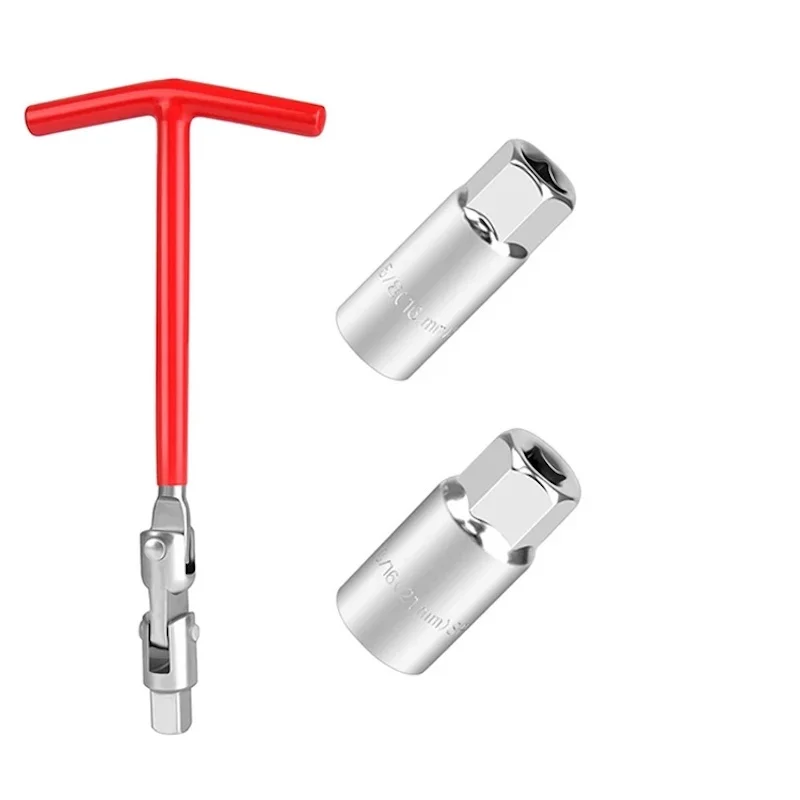

The most common tool used for removing and installing spark plugs is the spark plug socket, typically a deep-well socket with a rubber insert or magnetic base to hold the plug securely. These sockets come in standard sizes such as 5/8 inch (16 mm) and 13/16 inch (21 mm), depending on the vehicle make and model.

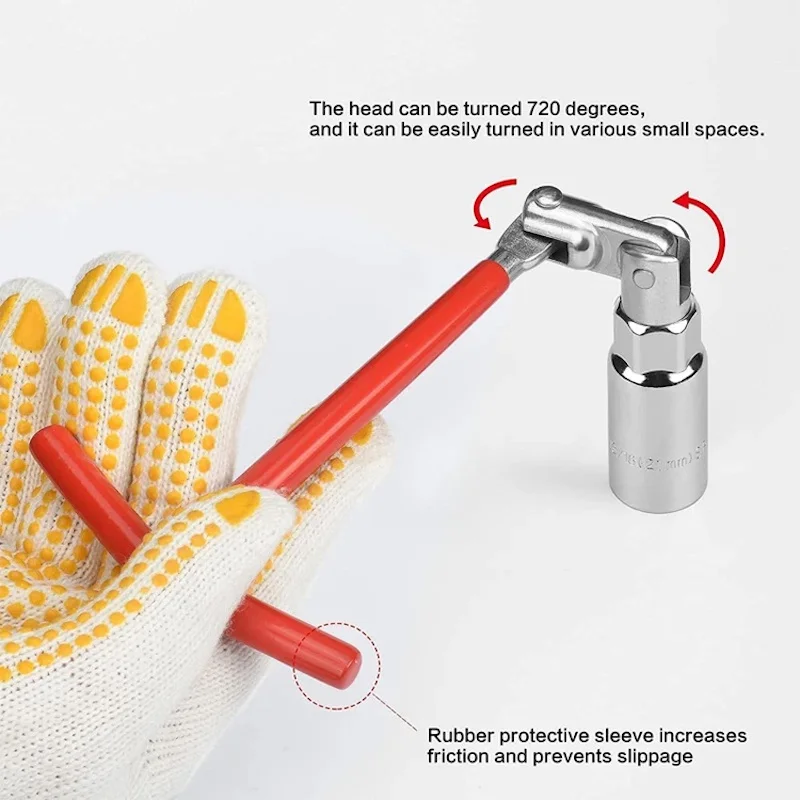

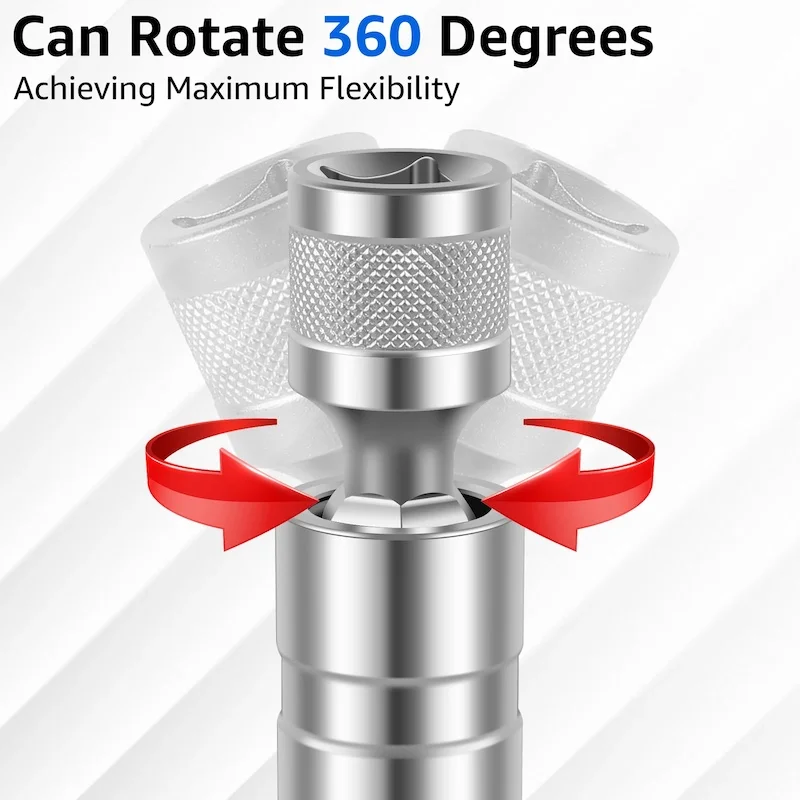

A ratchet and extension bar are often used in conjunction with the spark plug socket to reach plugs located in tight spaces. A universal joint may also be necessary when dealing with awkward angles.
Other basic tools include:
- Spark plug gap gauge: Used to check and adjust the gap between the center and side electrodes.
- Feeler gauge: An alternative method for checking electrode gaps.
- Spark plug wire puller: Prevents damage to ignition wires when disconnecting them from the spark plug.
These hand tools are affordable and widely available, making them ideal for home mechanics and professionals alike.
Specialized and Advanced Spark Plug Tools
For more complex jobs or professional use, there are several specialized tools designed to make spark plug work easier and more efficient.
One such tool is the angle adapter, which allows better access to hard-to-reach spark plugs without damaging surrounding components. Impact-rated spark plug sockets are designed for use with impact wrenches, though caution should be exercised to avoid over-tightening.
Some modern vehicles have coil-on-plug (COP) systems, where a coil boot puller becomes essential to safely remove the ignition coil before accessing the spark plug.
Additionally, anti-seize lubricant and dielectric grease are not tools per se, but they play a critical role in preventing seizing and ensuring smooth future removals. These products are often included in professional spark plug kits.
Investing in high-quality tools made from durable materials like chrome vanadium steel or insulated handles can significantly enhance safety and performance during spark plug maintenance.
Choosing the Right Tool for Your Needs
Factors to Consider When Selecting Tools
Selecting the right spark plug tool depends on several factors, including the type of vehicle, the location of the spark plugs, and the frequency of use.
First, determine the socket size required for your vehicle. Consult your owner’s manual or look up the specifications online to ensure you get the correct fit. Using the wrong size can strip the spark plug or damage the socket.
Next, consider the depth of the plug well. Some engines have deeply recessed spark plugs, requiring longer extensions or flexible universal joints to reach them effectively.

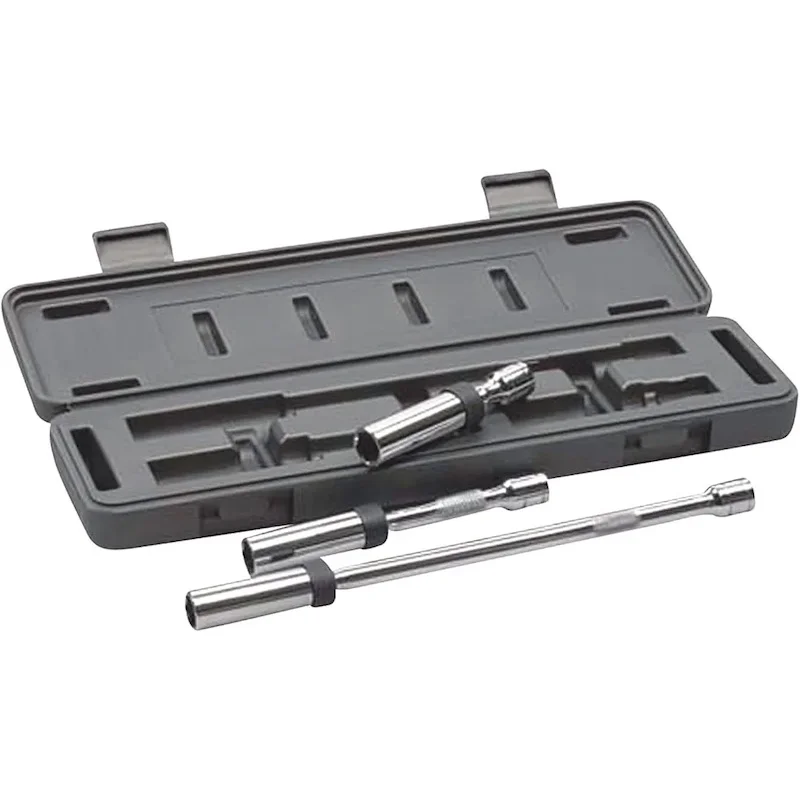

If you’re working on multiple vehicle models or performing frequent maintenance, investing in a multi-piece socket set or a modular tool kit might be more cost-effective than buying individual tools.
Finally, assess whether you need impact-rated tools if you plan to use power tools like an impact wrench. Not all sockets are suitable for this purpose, and using non-impact-rated sockets with an impact driver can result in breakage or injury.
Popular Brands and Where to Buy
When it comes to quality, brands like Craftsman, Snap-on, Mac Tools, Wright Tool, and Lisle are highly recommended for their durability and precision. These brands offer both entry-level and professional-grade tools that cater to different budgets and needs.
You can find spark plug tools at local auto parts stores like AutoZone, O'Reilly Auto Parts, or Advance Auto Parts, as well as online retailers such as Amazon, eBay, and Harbor Freight. For specialty tools like COP pullers or magnetic retrieval tools, it’s worth exploring dedicated automotive tool suppliers or manufacturer websites.
Before purchasing, read reviews and compare prices to ensure you’re getting value for money. Also, check return policies and warranties, especially when buying expensive sets or tools.
Remember, while cheaper tools might seem appealing, they can wear out faster or cause damage to your vehicle if not made from quality materials.
How to Use Tools Effectively
Step-by-Step Guide to Removing Spark Plugs
Proper technique is essential when removing spark plugs to avoid damaging the engine or the plugs themselves. Here's a step-by-step guide:
- Ensure the Engine is Cool: Working on a hot engine can cause burns and increase the risk of stripping threads.
- Disconnect the Battery Ground Cable: This prevents accidental electrical discharge.
- Remove Ignition Coils or Spark Plug Wires: Use a coil boot puller or wire puller to gently twist and lift the connections off the plugs.
- Clean the Area Around the Spark Plug: Use compressed air or a brush to remove dirt and debris to prevent contamination inside the cylinder.
- Attach the Correct Socket and Extension: Fit the appropriate spark plug socket onto a ratchet with an extension long enough to reach the plug.
- Loosen the Spark Plug: Turn counterclockwise to loosen. If the plug is stuck, apply penetrating oil and allow it to sit for a few minutes before trying again.
- Remove the Plug Completely: Once loose, carefully unscrew and extract the plug. Inspect it for signs of wear or damage.
Using the correct tools and following these steps ensures safe and effective removal.
Proper Installation Techniques
Installing new spark plugs requires just as much care as removing the old ones. Follow these steps:
- Check the Gap on New Plugs: Use a spark plug gap gauge to ensure the electrode gap matches your vehicle’s specifications.
- Apply Anti-Seize Compound (Optional): Apply a small amount to the threads to prevent seizing, especially if your engine runs hot or is aluminum.
- Hand-Tighten First: Insert the plug by hand to avoid cross-threading.
- Torque to Specification: Use a torque wrench to tighten the plug to the manufacturer’s recommended torque setting. Over-tightening can damage the cylinder head threads.
- Reattach Ignition Components: Reconnect the coils or wires securely.
- Test the Engine: Start the engine and listen for any misfires or unusual noises.
By following these steps, you’ll ensure a clean, efficient installation that maximizes engine performance and minimizes future issues.
Maintenance and Care of Spark Plug Tools
Proper maintenance of your spark plug tools extends their lifespan and ensures they perform reliably when you need them most.
After each use, wipe down your sockets and extensions with a clean cloth to remove oil, grime, and metal shavings. For stubborn residue, use a mild degreaser and a soft brush. Be sure to dry the tools thoroughly to prevent rusting.
Store your tools in a dry, organized toolbox or drawer. Consider using foam inserts or labeled compartments to keep everything in place and easy to locate. Avoid leaving tools exposed to moisture or extreme temperatures, which can degrade materials over time.
If your tools are magnetic, store them away from sensitive electronics to avoid interference.
Advanced Tips and Common Mistakes to Avoid
Pro Tips for Efficient Spark Plug Work
To make your spark plug maintenance faster and safer, consider these expert tips:
- Use a Magnetic Tray: Keep screws, washers, and plugs organized and easily accessible.
- Label Plug Locations: Before removing multiple plugs, label each wire or coil with its corresponding cylinder number to avoid mix-ups.
- Work One Plug at a Time: This prevents confusion and reduces the chance of incorrect reassembly.
- Use a Torque Wrench: Always follow the manufacturer’s torque specs to avoid under- or over-tightening.
- Keep a Spark Plug Journal: Record plug condition, mileage, and replacement dates for future reference.
These habits can streamline your workflow and help maintain consistent performance.
Common Mistakes and How to Avoid Them
Even experienced mechanics can make mistakes when working with spark plugs. Here are some of the most common errors and how to prevent them:
- Using the Wrong Socket Size: Double-check your vehicle’s specifications before beginning.
- Cross-Threading: Always start threading by hand to ensure alignment.
- Over-Tightening: This is one of the most common causes of damaged cylinder heads.
- Neglecting to Check the Gap: A misadjusted gap can lead to poor performance or engine damage.
- Failing to Clean the Plug Area: Dirt and debris can enter the combustion chamber if not removed beforehand.
- Ignoring Signs of Wear: Don’t wait until plugs fail completely—replace them proactively based on mileage or symptoms.
Avoiding these mistakes not only saves time and money but also protects your engine from unnecessary wear and tear.
Mastering the Art of Spark Plug Tool Use
In conclusion, the spark plug tool is indispensable for anyone involved in engine maintenance, whether professionally or as a DIY project. From understanding the fundamentals of spark plugs to selecting the right tools, mastering proper usage techniques, and avoiding common pitfalls, this guide has equipped you with the knowledge needed to tackle spark plug tasks confidently.
Remember, the key to successful spark plug maintenance lies in preparation, precision, and practice. By investing in quality tools, learning proper techniques, and staying vigilant about maintenance, you can ensure your engine runs efficiently and lasts longer.
Whether you're changing your own spark plugs or guiding others through the process, always prioritize safety, accuracy, and care. With the right approach, spark plug work doesn’t have to be daunting—it can be a satisfying and rewarding part of vehicle upkeep.
