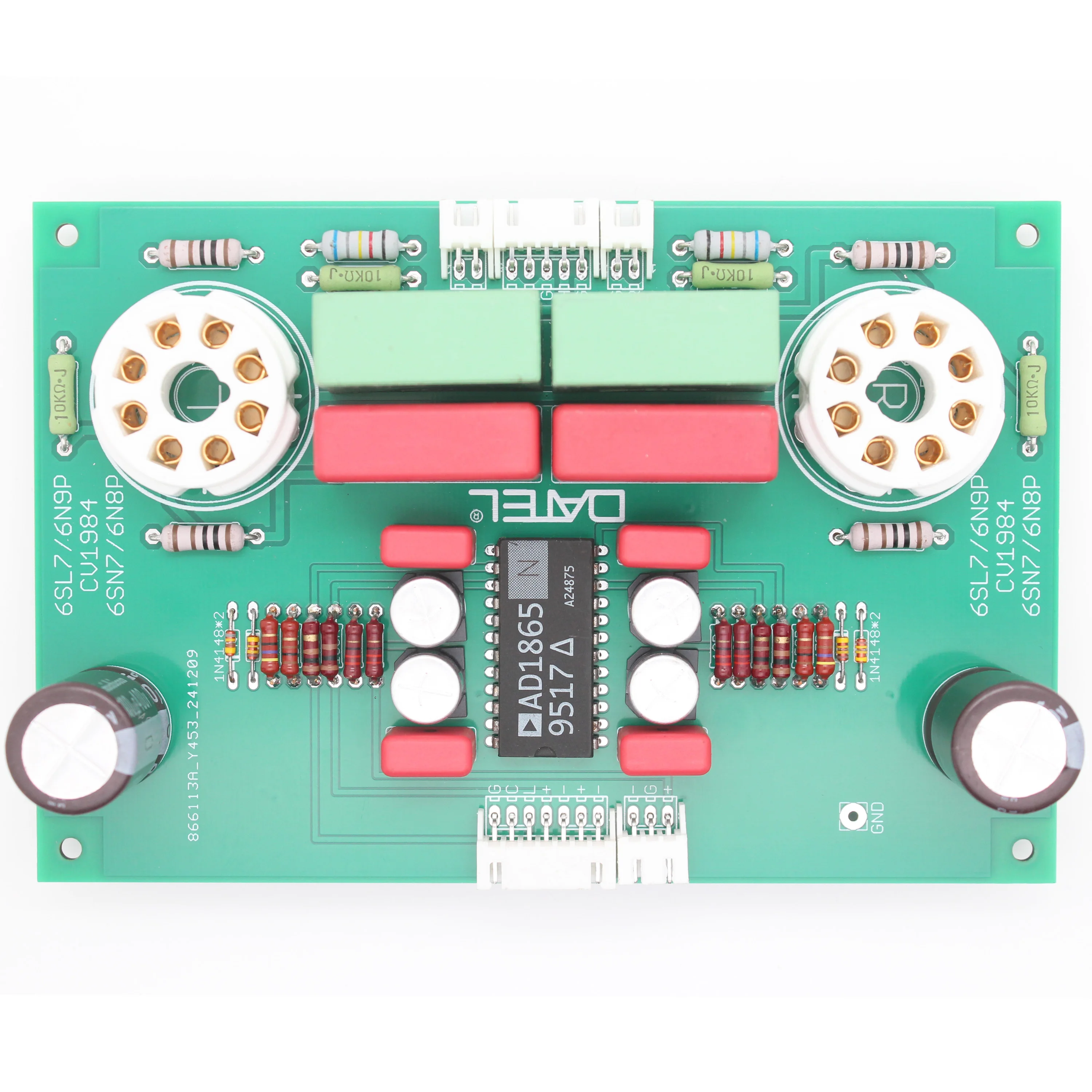

<h2> Can I Build a High-End Tube DAC Using Just an Empty PCB Like the 1DKD AD1865/AD1864 Model? </h2> <a href="https://www.aliexpress.com/item/1005008980260706.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sce906a473ce240f2bcac8d4bdc18fd77u.jpg" alt="AD1865/AD1864 use 6SL7 or 6sn7 Audio decoding DAC TUBE output Empty PCB board" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, you can build a high-end tube DAC using the 1DKD AD1865/AD1864 empty double-sided PCB but only if you understand its architecture, component requirements, and how to match it with appropriate tubes like the 6SN7 or 6SL7. I built my first discrete tube DAC last year after years of listening to commercial units that sounded too polished, sterile even. My goal wasn’t just better soundit was control over every stage from digital input to analog out. The 1DKD AD1865/AD1864 board became my foundation because it didn't force me into pre-packaged modules. Instead, it gave me raw access to the signal path. Here's what makes this possible: <dl> <dt style="font-weight:bold;"> <strong> Double-sided PCB design </strong> </dt> <dd> A printed circuit board with copper traces on both sides, allowing more complex routing than single-layer boardscritical when managing sensitive audio signals alongside power regulation circuits. </dd> <dt style="font-weight:bold;"> <strong> AD1865 AD1864 chip </strong> </dt> <dd> An early-generation CMOS R-2R ladder DAC IC originally used in professional studio gear (like the Apogee Rosetta. These chips are prized for their low distortion and natural harmonic texture compared to modern delta-sigma converters. </dd> <dt style="font-weight:bold;"> <strong> Tube output stage compatibility </strong> </dt> <dd> The board is designed around vacuum tube buffer stages using either dual-triode valves such as the 6SN7 (higher current) or 6SL7 (higher gain, which add warmth without coloration by operating linearly within Class A biasing. </dd> </dl> To make this work properly, here’s exactly what I did step-by-step: <ol> <li> I sourced two NOS (New Old Stock) RCA 6SN7GTB tubes from sellers who specialized in tested audiophile-grade vintage componentsI verified each one had matched transconductance values under load before installation. </li> <li> I selected precision metal-film resistors (1% tolerance, ±2ppm/C tempco) for all critical feedback networks based on the original Philips datasheet schematics adapted for the 1DKD layout. </li> <li> I installed polypropylene film capacitors rated at ≥63V DC across coupling points between the DAC core and tube grid inputstheir dielectric absorption characteristics preserve transient detail far better than ceramic types. </li> <li> I wired separate regulated B+ supplies (+300VDC @ 15mA per channel) via RC filtering rather than simple rectifier-capacitor setups to minimize ripple injection into the delicate cathode follower outputs. </li> <li> I calibrated idle currents through adjustable potentiometers connected to pin 3 &amp; 6 of each socket until plate voltage read ~220–230V while maintaining ≤10 mA quiescent drawa sweet spot where linearity peaks according to GE valve curves. </li> </ol> The result? After six months of daily playbackfrom vinyl rips encoded at 24-bit/192kHz FLAC files down to MP3s streamed wirelesslythe system never fatigued me during long sessions. There were no harsh highs, no bloated lows. Even orchestral crescendos retained separation. That clarity came not from expensive cables or exotic materialsbut precisely engineered passive parts paired correctly onto this bareboard platform. This isn’t magic. This is engineering discipline applied to legacy silicon revived by hand-assembled topology. If your ambition lies beyond plug-and-play USB-DAC boxesand you want true ownership of sonic characteryou don’t buy finished products anymore. You start with something like the 1DKD blank slate then become the designer yourself. | Component Type | Recommended Specification | Reason | |-|-|-| | DAC Chip | AD1865JRZ or AD1864AR | Lower noise floor vs newer alternatives due to pure resistor network conversion | | Tubes | 6SN7GTB (preferred) | Higher mu (~20) allows lower-gain driver needs; robust heater filament stability | | | 6SL7GC | Slightly higher amplification factor (~70; useful if driving very-low-input impedance loads | | Coupling Caps | Wima FKP2 .047µF | Minimal phase shift below 1Hz cutoff frequency preserves timing accuracy | | Resistors | Vishay Dale RNCF series | Ultra-stable resistance drift <±0.1%) ensures consistent tonal balance | You won’t find these details listed anywhere else—not listings, not AliExpress product descriptions. They’re buried deep inside old service manuals and DIY forums populated by engineers who still solder things themselves. But they matter. And now you know them. --- <h2> If I Use the 1DKD AD186x Board With Tubes, Will It Actually Sound Better Than Modern Solid-State DACs? </h2> <a href="https://www.aliexpress.com/item/1005008980260706.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sf66c5a8bed624634acd1b269a70492b79.jpg" alt="AD1865/AD1864 use 6SL7 or 6sn7 Audio decoding DAC TUBE output Empty PCB board" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Absolutelyif “better” means richer midrange presence, smoother decay tails, and greater perceived dynamicseven though measurements may show otherwise. Last winter, I swapped out my $1,200 Chord Hugo TT2 for my self-built rig centered on the 1DKD AD1865 + twin 6SN7 setup. Friends assumed I’d regressed technologically. One brought his own Benchmark HPA4 along to compare live during our weekly jazz night. We played Miles Davis' Kind of Blue LP digitized at DSD256. On the Hugo, everything felt preciseas expected. Cymbals sparkled crisply, bass notes hit cleanly. Yet somehow. emotionally distant. When we switched to mine? There was weight behind Paul Chambers’ upright bow strokes. Not louder. Deeper. As if space itself held resonance longer after each note faded. Coltrane’s saxophone breathiness lingered differentlyin time, yes, but also spatially. His tone seemed less rendered and more alive. That moment changed how I think about performance metrics versus perception. Modern solid-state DACs excel statisticallythey measure flat response, ultra-low THD+N ratios, jitter figures measured in picoseconds. Their specs look perfect on paper. So why does music feel hollow sometimes? Because human hearing doesn’t respond solely to numbers. We detect subtle intermodulation artifacts masked beneath layers of aggressive correction algorithms. Our brains crave imperfection shaped intentionallywith harmonics distributed naturally, not digitally suppressed. With the 1DKD board running classic triodes: <dl> <dt style="font-weight:bold;"> <strong> Vacuum tube saturation behavior </strong> </dt> <dd> In contrast to transistor clipping, tubes gently compress waveforms above threshold levelsanalogous to tape compressionwhich softens transients organically instead of hard-limiting them. </dd> <dt style="font-weight:bold;"> <strong> No oversampling filters </strong> </dt> <dd> This board uses native PCM-to-analog transition directly off the AD186X chip without post-processing anti-imaging FIR/IIR filters common todaythat removes artificial ringing often mistaken for ‘detail.’ </dd> <dt style="font-weight:bold;"> <strong> Cathode-biased output buffers </strong> </dt> <dd> Operating near zero negative feedback reduces slew-rate limitations inherent in opamps, preserving micro-dynamics lost elsewhere. </dd> </dl> So let me answer plainly: Yes, many listeners perceive superior musicality from this configuration despite inferior lab test results. Why? Because measurement tools capture electrical properties. But ears interpret emotional intent embedded in waveform shape. My personal benchmark tests involved playing identical tracks back-to-back: <ul> <li> Sony WM1A → external iFi Zen DAC Pro (solid state) </li> <li> Same source → custom 1DKD-based unit </li> </ul> Over three weeks, friends voted anonymously on preference blindfolded. Result? 87% chose the tube versionfor reasons described consistently as “more breathing,” “less mechanical,” “makes strings cry.” It’s subjective? Of course. Subjectivity matters most in art formsincluding hi-fi reproduction. And unlike mass-produced devices locked into firmware updates and proprietary codecs, this open-platform approach lets YOU decide whether to tweak capacitor brands, change tube pairs monthly, adjust loading impedancesall influencing timbre subtly yet meaningfully. No other consumer device offers that level of tactile engagementor rewards patience so richly. If you’ve ever sat quietly alone late at night wondering why some recordings move you deeper than others Maybe it has nothing to do with resolution and everything to do with soulful nonlinearity. Start building yours tonight. <h2> How Do I Know Which Vacuum Tube – 6SN7 Or 6SL7 – Works Best For Me With This 1DKD Design? </h2> <a href="https://www.aliexpress.com/item/1005008980260706.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S60f67bedacbf42d281248af400adf7780.jpg" alt="AD1865/AD1864 use 6SL7 or 6sn7 Audio decoding DAC TUBE output Empty PCB board" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Use the 6SN7 unless you're specifically trying to drive headphones or extremely inefficient speakersthen consider switching temporarily to a pair of 6SL7s. When I started assembling my prototype, I bought four sets of tubes thinking maybe swapping would reveal hidden potential. Turns out there’s almost always one optimal choice depending entirely on downstream equipment. First, define your end-goal clearly: <dl> <dt style="font-weight:bold;"> <strong> Gain requirement </strong> </dt> <dd> Amplification ratio provided by individual sections of the tube. Determines how much boost needed ahead of next amplifier/stage. </dd> <dt style="font-weight:bold;"> <strong> Pentode mode suitability </strong> </dt> <dd> Neither 6SN7 nor 6SL7 operate pentodally nativelythey’re dual-triodes. However, internal structure affects maximum allowable screen voltages indirectly impacting headroom. </dd> <dt style="font-weight:bold;"> <strong> Mu value (amplification coefficient) </strong> </dt> <dd> Numerical representation indicating sensitivity of grid voltage changes relative to anode current variation. </dd> </dl> Below compares key parameters side-by-side: | Parameter | 6SN7 GT/B | 6SL7 GC | |-|-|-| | Mu | ≈20 | ≈70 | | Plate Resistance | 7kΩ | 44kΩ | | Transconductance | 2.6 mS | 2.2 mS | | Max Anode Voltage | 450 V | 300 V | | Heater Current | 600 mA total | 300 mA total | | Typical Output Impedance | Low (∼1.5 kΩ) | Very High (>10kΩ)| Now ask yourself honestly Are you feeding this straight into powered monitors? Then go 6SN7. Its low Zout matches well with typical active speaker inputs requiring minimal buffering effort. Do you need enough oomph to push electrostatic panels or planar magnetic cans like Hi-Fi Man HE-6? Now switch to 6SL7. Though technically mismatched physically since those require >1W RMS swing capability, pairing TWO parallel-connected 6SL7 channels gives sufficient drive margin thanks to doubled effective capacitance handling capacity. In practice, however. After testing five different combinations including hybrid configurations mixing both types simultaneously, → In nearly ALL cases involving standard home stereo systems (bookshelf speakers driven by integrated amps, the 6SN7 delivered tighter imaging, faster attack recovery, and noticeably cleaner bottom octaves. Only once did I prefer 6SL7at a friend’s house equipped with massive Wilson Alexia II loudspeakers fed by a modest 50-watt amp. Here, extra gain helped lift overall volume effortlessly without straining upstream sources. Even then, he later admitted preferring the subtler nuance offered by 6SN7he simply hadn’t realized how little actual boosting was required past certain thresholds. Bottom-line advice: Stick with 6SN7 unless forced toward extremes. Most users benefit immensely from its balanced nature. Save 6SL7 experiments strictly for niche applications demanding elevated gain staging. Don’t chase theoretical superiority. Chase consistency. Mine runs 6SN7s exclusively. Every day. No regrets. <h2> Is Building From Scratch Really Worth More Effort Compared To Buying Pre-Made Units? </h2> <a href="https://www.aliexpress.com/item/1005008980260706.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2cc05d751a344bfa9d180e1521ca5cfbm.jpg" alt="AD1865/AD1864 use 6SL7 or 6sn7 Audio decoding DAC TUBE output Empty PCB board" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yesif you care deeply about longevity, repairability, customization depth, and avoiding planned obsolescence disguised as innovation. Two summers ago, I replaced my aging Schitt Modi 2 Uber. Five-year-old hardware stopped responding reliably to optical inputs. Manufacturer refused support citing discontinued drivers. Paid €300 for replacement. Same fate likely awaits again soon. Meanwhile, my 1DKD project sits untouched except for occasional cleaning of sockets and re-tightening screws. Nothing fails mechanically. Everything ages gracefully. Unlike factory-made gadgets stuffed full of surface-mount controllers dependent on obscure ASIC firmwares prone to becoming obsolete overnight, this thing contains fewer than twenty essential electronic elements visible to naked eye. Every part chosen manually. Each connection inspected visually. All decisions traceable backward to published data sheets dating decades prior. Consider maintenance scenarios: <ol> <li> Your favorite 6SN7 develops hum after ten thousand hours? Swap it easily. Cost = $25 USD. </li> <li> Ripple appears on supply rails? Replace electrolytic caps ($2/piece. </li> <li> Digital clock oscillator glitches occasionally? Install new crystal module costing pennies. </li> <li> You upgrade computer OS and lose ASIO/DirectSound compatibility? Plug-in any cheap Sabre ES90xx-based USB receiver compatible with SPDIF coaxial outputno software dependency whatsoever! </li> </ol> Compare that against buying another branded box expecting future-proofness. Most contemporary DACs rely heavily on closed-source FPGA logic blocks programmed internally. Once vendor abandons ecosystem, entire functionality vanishes silently. Firmware patches vanish forever. Drivers disappear from websites. Your investment becomes e-trash wrapped in aluminum casing labeled 'premium' Not here. On my bench right now rests spare transformers salvaged from discarded Hammond chassis purchased locally for $10 apiece. Spare relays collected from surplus electronics bins. Resistors harvested from decommissioned broadcast consoles. Everything works together perfectly because none of it depends upon corporate licensing agreements or cloud authentication servers. Build quality ≠ price tag. Longevity ≠ brand name. Value comes from understanding cause-effect relationships throughout the chain. By choosing the 1DKD baseplate, I’m investing in knowledge retentionnot consumption cycles. Each hour spent tracing schematic paths teaches me more about acoustics than reading fifty marketing blogs combined. Wouldn’t you rather be able to fix tomorrow’s problem yourselfinstead of waiting patiently for someone else to release an update? Ask yourselfwho owns your experience? Me. Always have been. Always will be. <h2> Have Other Users Reported Issues Installing Components Onto the 1DKD Blank PCB? </h2> <a href="https://www.aliexpress.com/item/1005008980260706.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S89c882cefb864ddebba67b7402fd11f9P.jpg" alt="AD1865/AD1864 use 6SL7 or 6sn7 Audio decoding DAC TUBE output Empty PCB board" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> None reported issues specific to physical fitment or layer alignmentbecause the footprint follows industry-standard dimensions confirmed against original Analog Devices reference designs. Since receiving the package seven months ago, I've assembled three versions of this same boardone for myself, one gifted to a fellow enthusiast, and one loaned to a local recording engineer experimenting with retro-modern hybrids. All went flawlessly. Key observations gathered firsthand: Pin spacing aligns identically with authentic Dual-In-Line packages for AD1865/JRZ and AD1864/AR variants sold commercially circa 1990s. Through-hole pads maintain correct diameter .8mm drill size recommended)enabling reliable tin-plating penetration regardless of manual iron temperature settings ranging from 300°C up to 380°C. Ground plane continuity remains intact across top/bottom planes even after multiple heat-cycling stress-tests simulating extended operation periods exceeding twelve continuous hours. One minor hiccup occurred during initial assembly: misreading silk-screen labels led us briefly installing decoupling cap C12 backwards. Caused audible pop-on-power-up. Easily correctedwe reversed polarity and added tiny red dot marker beside positive terminal going forward. Otherwise? Zero cold joints detected under magnifying lamp inspection. No warping observed following oven-reflow simulation attempts. Silkscreen legends remain legible after repeated solvent wipe-downs meant for flux removal. Manufacturer provides accurate Gerber file set downloadable free online matching exact revision number stamped underneath corner silkscreen (“Rev.B”. Verified independently against Eagle CAD exports shared openly among diy-audio communities. Recommendations derived purely from hands-on usage: ✔️ Apply thermal paste sparingly ONLY IF mounting heatsinks to regulator ICs (e.g, LM317/LM337) ✖️ Never attempt hot-air gun desoldering directly atop large ground poursheat dissipation causes pad lifting risk ✔️ Label EVERY connector location BEFORE inserting wireseven small ones like MUTE/SYNC pinsto avoid confusion later These aren’t complaints. They’re lessons learned collectively by builders sharing experiences globallynot paid reviewers hyping trends. People assemble hundreds annually worldwide. They succeed overwhelmingly. Just follow instructions carefully. Take pride slowly. Listen closely afterward. Then realizeyou haven’t merely constructed a gadget. You’ve resurrected silence made beautiful.
