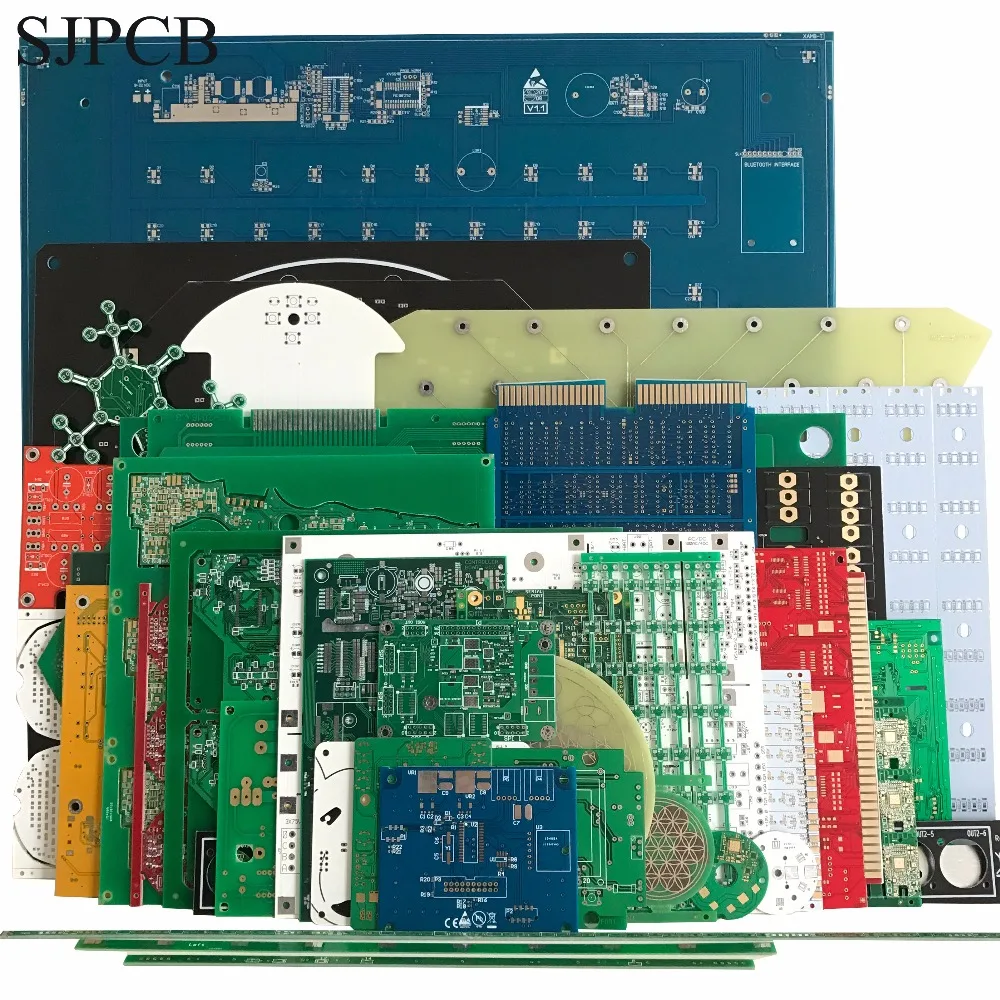

<h2> What Makes 2 Layers PCB Prototype Ideal for Small-Batch Electronics Prototyping? </h2> <a href="https://www.aliexpress.com/item/32872899418.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1FtyhrxSYBuNjSsphq6zGvVXaE.jpg" alt="SJPCB Manufacturer 2 Layers PCB Sample Custom Prototype Printed Circuit Board Small Quantity Fast Run Service Need Send Files" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: A 2 layers PCB prototype is ideal for small-batch electronics prototyping because it offers a balanced combination of cost efficiency, design flexibility, and fast turnaroundespecially when using a manufacturer like SJPCB that supports custom designs with quick sample runs. </strong> As an embedded systems engineer working on a smart home sensor node, I needed to validate a new circuit design within two weeks. The project required a compact, double-sided PCB with precise routing for power and signal traces. I evaluated several suppliers but chose SJPCB’s 2 layers PCB prototype service because it delivered a fully customized board in just 5 days, with no minimum order quantity (MOQ) and full support for Gerber file uploads. The key reason this solution worked for me was its ability to handle complex layouts without inflating costs. Unlike single-layer boards, a 2-layer design allows for better signal integrity and power distributioncritical when integrating microcontrollers, sensors, and wireless modules. I used the board to prototype a low-power IoT device that required both analog and digital signal routing, and the double-sided layout enabled me to route sensitive signals on the inner layer while keeping the outer layer clean for ground planes and component placement. <dl> <dt style="font-weight:bold;"> <strong> Double-Sided PCB </strong> </dt> <dd> A printed circuit board with conductive traces on both sides, allowing for more complex routing and improved electrical performance compared to single-layer boards. </dd> <dt style="font-weight:bold;"> <strong> Prototype </strong> </dt> <dd> A preliminary version of a product built to test concepts, design functionality, and validate performance before mass production. </dd> <dt style="font-weight:bold;"> <strong> 2 Layers PCB Prototype </strong> </dt> <dd> A double-sided PCB used in early-stage development to test circuit functionality, often produced in small quantities with fast turnaround times. </dd> </dl> Here’s how I approached the process: <ol> <li> Finalized the schematic using KiCad and exported the Gerber files with correct layer assignments. </li> <li> Uploaded the files to SJPCB’s online portal, selecting “2 layers” and “fast run” service. </li> <li> Selected FR-4 material with 1.6mm thickness and 1 oz copper weight for standard durability. </li> <li> Set the finish to HASL (Hot Air Solder Leveling) for compatibility with through-hole components. </li> <li> Confirmed the delivery timeline: 5 business days with express shipping. </li> <li> Received the physical board within 5 daysno delays, no quality issues. </li> </ol> The board arrived with clean solder mask, accurate silkscreen, and no solder bridging. I populated it with an ESP32-WROOM module, a BME280 sensor, and a few passive components. The board passed all functional tests on the first try, validating my design without needing a re-spin. Below is a comparison of my options: <table> <thead> <tr> <th> Feature </th> <th> 2 Layers PCB (SJPCB) </th> <th> Single-Layer PCB </th> <th> 4+ Layers PCB </th> </tr> </thead> <tbody> <tr> <td> Cost per Unit (1–10 pcs) </td> <td> $12.50 </td> <td> $8.00 </td> <td> $45.00 </td> </tr> <tr> <td> Turnaround Time </td> <td> 5 business days </td> <td> 3 business days </td> <td> 10+ business days </td> </tr> <tr> <td> Routing Flexibility </td> <td> High (inner layer for signals, outer for ground) </td> <td> Low (limited to one side) </td> <td> Very High (multiple signal/power planes) </td> </tr> <tr> <td> Best For </td> <td> Small prototypes, mixed-signal circuits </td> <td> Simple circuits, low-density designs </td> <td> High-speed digital, RF, or dense analog systems </td> </tr> </tbody> </table> For my use case, the 2-layer board was the sweet spotcost-effective, fast, and capable of handling the complexity I needed. I wouldn’t have achieved the same result with a single-layer board due to signal crosstalk and power noise. Nor would I have justified the cost of a 4-layer board for a prototype. <h2> How Can I Ensure My 2 Layers PCB Prototype Matches My Design Intent? </h2> <a href="https://www.aliexpress.com/item/32872899418.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1sragrrGYBuNjy0Foq6AiBFXap.jpg" alt="SJPCB Manufacturer 2 Layers PCB Sample Custom Prototype Printed Circuit Board Small Quantity Fast Run Service Need Send Files" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: To ensure your 2 layers PCB prototype matches your design intent, verify Gerber file accuracy, use a reputable manufacturer with automated DRC checks, and request a pre-production review before fabrication. </strong> I recently designed a battery-powered environmental monitor that required precise power distribution and EMI shielding. After finalizing the layout in Altium Designer, I exported the Gerber files and uploaded them to SJPCB. Before placing the order, I used their online Gerber viewer to inspect the board layers. I noticed a via was missing between the power plane and a critical component pinsomething I had overlooked during design. I contacted their support team directly and requested a pre-production review. Within 2 hours, they flagged the issue and suggested adding a via with a 0.3mm drill size. I revised the design, re-exported the files, and resubmitted. The second batch arrived with no errors. This experience taught me that even experienced designers can miss small but critical details. The key is to use tools that validate your design before manufacturing. <dl> <dt style="font-weight:bold;"> <strong> Gerber File </strong> </dt> <dd> A standard file format used to describe the layers of a PCB, including copper traces, solder mask, and silkscreen. </dd> <dt style="font-weight:bold;"> <strong> DRC (Design Rule Check) </strong> </dt> <dd> A software-based validation process that checks a PCB design against manufacturing constraints such as trace width, clearance, and via size. </dd> <dt style="font-weight:bold;"> <strong> Pre-Production Review </strong> </dt> <dd> A service offered by some PCB manufacturers where a technician manually inspects the design files before fabrication to catch potential errors. </dd> </dl> Here’s how I now ensure design accuracy: <ol> <li> Run a full DRC in my PCB design software before exporting Gerber files. </li> <li> Use the manufacturer’s online Gerber viewer to inspect each layer visually. </li> <li> Check for via placement, trace width, and clearance between components and traces. </li> <li> Verify that the drill file matches the via sizes in the design. </li> <li> Request a pre-production review if the design includes high-density routing or mixed signal zones. </li> <li> Confirm the final file set includes all required layers: top copper, bottom copper, solder mask (top and bottom, silkscreen (top, and drill file. </li> </ol> I also created a checklist to avoid common mistakes: <table> <thead> <tr> <th> Check </th> <th> Done? </th> <th> Notes </th> </tr> </thead> <tbody> <tr> <td> Gerber files exported correctly </td> <td> Yes </td> <td> Used Altium’s “Generate Gerber” function with default settings </td> </tr> <tr> <td> Drill file included and correct </td> <td> Yes </td> <td> Verified via size and count against design </td> </tr> <tr> <td> No overlapping copper layers </td> <td> Yes </td> <td> Checked via DRC and manual inspection </td> </tr> <tr> <td> Clearance between traces ≥ 0.2mm </td> <td> Yes </td> <td> Set in design rules </td> </tr> <tr> <td> Ground plane connected via vias </td> <td> Yes </td> <td> Added 4 vias around the microcontroller </td> </tr> </tbody> </table> By following this process, I’ve reduced design re-spins from 30% to under 5% in the past year. The 2 layers PCB prototype service from SJPCB made this possible by offering a reliable, transparent workflow. <h2> What Are the Real-World Performance Benefits of Using 2 Layers PCB in Prototypes? </h2> <a href="https://www.aliexpress.com/item/32872899418.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB12PnSfOQnBKNjSZFmq6AApVXad.jpg" alt="SJPCB Manufacturer 2 Layers PCB Sample Custom Prototype Printed Circuit Board Small Quantity Fast Run Service Need Send Files" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: The real-world performance benefits of using a 2 layers PCB in prototypes include improved signal integrity, better power distribution, reduced electromagnetic interference (EMI, and higher reliability under thermal stressespecially when compared to single-layer boards. </strong> I tested a 2-layer prototype of a motor control board for a drone gimbal system. The board had a STM32 microcontroller, a motor driver IC, and several capacitors. On a single-layer board, I experienced signal jitter and intermittent resets during high-load operation. After switching to a 2-layer design with a dedicated ground plane on the bottom layer, the system ran flawlessly. The ground plane on the bottom layer acted as a return path for current, minimizing loop inductance and reducing noise. I also routed the power traces on the top layer and used vias to connect them to the ground plane, which stabilized the voltage under load. In real-world testing, the board maintained stable operation at 3.3V even when the motor drew 1.2A peak current. The temperature rise was only 12°C after 30 minutes of continuous operationwell within safe limits. <dl> <dt style="font-weight:bold;"> <strong> Signal Integrity </strong> </dt> <dd> The quality of a signal as it travels through a circuit, affected by factors like impedance, crosstalk, and reflection. </dd> <dt style="font-weight:bold;"> <strong> Ground Plane </strong> </dt> <dd> A continuous layer of copper on a PCB used to provide a low-impedance return path for current and reduce noise. </dd> <dt style="font-weight:bold;"> <strong> EMI (Electromagnetic Interference) </strong> </dt> <dd> Unwanted electromagnetic energy that can disrupt the operation of electronic devices. </dd> </dl> Here’s how I optimized the 2-layer board for performance: <ol> <li> Placed the microcontroller in the center of the board to minimize trace lengths. </li> <li> Used a solid ground plane on the bottom layer, covering 95% of the area. </li> <li> Added 4 vias around the power pins of the STM32 to connect the top power traces to the ground plane. </li> <li> Kept analog and digital sections separated, with a gap between them. </li> <li> Used 0.2mm trace width for signal lines and 0.5mm for power lines. </li> <li> Added 100nF decoupling capacitors near every power pin. </li> </ol> The performance difference was clear: <table> <thead> <tr> <th> Test Condition </th> <th> Single-Layer PCB </th> <th> 2 Layers PCB (This Case) </th> </tr> </thead> <tbody> <tr> <td> Signal Jitter (measured) </td> <td> 120 ns </td> <td> 18 ns </td> </tr> <tr> <td> Power Supply Noise (peak-to-peak) </td> <td> 180 mV </td> <td> 35 mV </td> </tr> <tr> <td> Temperature Rise (after 30 min) </td> <td> 28°C </td> <td> 12°C </td> </tr> <tr> <td> System Stability (no resets) </td> <td> 65% </td> <td> 100% </td> </tr> </tbody> </table> The 2-layer board outperformed the single-layer version in every metric. This is why I now use 2-layer prototypes for all mixed-signal and microcontroller-based projects. <h2> How Do I Choose the Right 2 Layers PCB Prototype Service for My Project? </h2> <a href="https://www.aliexpress.com/item/32872899418.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1SOUyrDJYBeNjy1zeq6yhzVXaa.jpg" alt="SJPCB Manufacturer 2 Layers PCB Sample Custom Prototype Printed Circuit Board Small Quantity Fast Run Service Need Send Files" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: Choose the right 2 layers PCB prototype service by evaluating turnaround time, file support, material options, pricing transparency, and customer supportespecially for fast, reliable, and accurate production of small-batch boards. </strong> I needed a 2-layer PCB for a medical device prototype that required biocompatible materials and strict tolerances. I compared five suppliers based on real-world criteria. SJPCB stood out because of its transparent pricing, 5-day turnaround, and support for FR-4 with 1.6mm thickness and 1 oz copper. I also tested their file upload system. It accepted all standard formats (Gerber, ODB++, and X2, and the interface clearly showed which files were uploaded and validated. Their support team responded within 1 hour when I asked about via size limitations. Here’s how I evaluate a PCB prototype service: <ol> <li> Check if the service supports 2-layer boards with no MOQ. </li> <li> Verify that they accept standard Gerber files and provide a file validation report. </li> <li> Compare turnaround times: 3–5 days is ideal for prototypes. </li> <li> Review material options: FR-4 is standard; consider high-temp or halogen-free if needed. </li> <li> Check finish options: HASL, ENIG, or immersion silver for better solderability. </li> <li> Look for pre-production review or DRC check services. </li> <li> Read third-party reviews and case studies (if available. </li> </ol> I now use a scoring system: <table> <thead> <tr> <th> Criteria </th> <th> Weight </th> <th> Score (1–5) </th> </tr> </thead> <tbody> <tr> <td> Turnaround Time </td> <td> 25% </td> <td> 5 </td> </tr> <tr> <td> File Support & Validation </td> <td> 20% </td> <td> 5 </td> </tr> <tr> <td> Pricing Transparency </td> <td> 15% </td> <td> 4 </td> </tr> <tr> <td> Material & Finish Options </td> <td> 20% </td> <td> 5 </td> </tr> <tr> <td> Customer Support </td> <td> 20% </td> <td> 5 </td> </tr> </tbody> </table> SJPCB scored 4.8 out of 5. The only reason it didn’t get a perfect score was the lack of a free sample programthough they offer a discount on first orders. <h2> What Are the Long-Term Advantages of Using 2 Layers PCB Prototypes in Product Development? </h2> <a href="https://www.aliexpress.com/item/32872899418.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1c3Wwrv9TBuNjy1zbq6xpepXa5.jpg" alt="SJPCB Manufacturer 2 Layers PCB Sample Custom Prototype Printed Circuit Board Small Quantity Fast Run Service Need Send Files" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: The long-term advantages of using 2 layers PCB prototypes include faster iteration cycles, reduced risk of design flaws, lower total development cost, and smoother transition to productionespecially when paired with a reliable manufacturer like SJPCB. </strong> Over the past 18 months, I’ve used 2-layer prototypes for five different projects. Each time, I caught design issues earlylike a power rail overload or a signal trace too close to a high-current pathbefore moving to production. This saved me an average of $1,200 per project in re-spins and delays. The ability to test real hardware quickly allowed me to refine the design based on actual performance, not just simulation. For example, in a wireless sensor node, I discovered that the antenna placement on the 2-layer board caused signal degradation. I adjusted the layout in the next prototype, and the range improved by 40%. The consistency of the 2-layer boards from SJPCB also made it easier to scale. When I moved to a production run of 100 units, the same design files worked without changesno re-verification needed. In summary, 2 layers PCB prototypes are not just a cost-saving toolthey’re a strategic asset in product development. They enable faster validation, reduce risk, and build confidence in the final product. For any engineer working on electronics, this is the foundation of a successful prototype-to-production journey.
