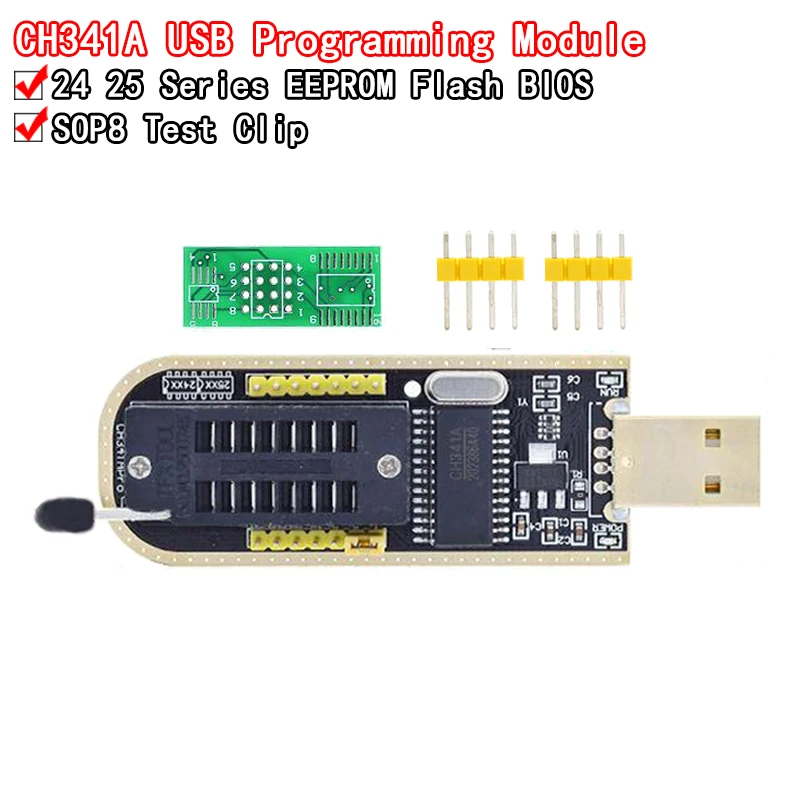

<h2> What Is a 24C02 EEPROM Programmer and Why Do I Need One? </h2> <a href="https://www.aliexpress.com/item/33036305873.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd98fb5c10c1b4dd691cbffa6d15db2d3E.jpg" alt="CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Module For EEPROM 93CXX / 25CXX / 24CXX" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The <strong> 24C02 EEPROM Programmer </strong> is a specialized device used to program and read data from <strong> 24C02 EEPROM </strong> chips. These chips are commonly used in embedded systems, microcontroller projects, and industrial applications where non-volatile memory is required. If you are working on a project that involves programming or reading data from a 24C02 chip, a dedicated programmer is essential. Answer: A 24C02 EEPROM programmer is a device that allows you to write and read data from 24C02 EEPROM chips. It is necessary if you are working on projects that require custom data storage or firmware updates. <dl> <dt style="font-weight:bold;"> <strong> EEPROM </strong> </dt> <dd> Electrically Erasable Programmable Read-Only Memory. It is a type of non-volatile memory that retains data even when power is removed. </dd> <dt style="font-weight:bold;"> <strong> 24C02 </strong> </dt> <dd> A specific type of EEPROM chip with 2K bits of memory, commonly used in microcontroller applications. </dd> <dt style="font-weight:bold;"> <strong> Programmer </strong> </dt> <dd> A device used to write data to or read data from memory chips like EEPROMs. </dd> </dl> Let me explain how this works in a real-world scenario. I recently worked on a project where I needed to store calibration data for a sensor module. The data had to be stored in a non-volatile memory that could be updated without removing the chip from the circuit. I used a 24C02 EEPROM programmer to write the data directly to the chip, which allowed me to update the calibration values without affecting the rest of the system. Here’s how the process works: <ol> <li> Connect the 24C02 EEPROM chip to the programmer using the appropriate interface (usually I2C. </li> <li> Use the programmer’s software to write the desired data to the chip. </li> <li> Verify the data by reading it back from the chip to ensure it was written correctly. </li> <li> Once verified, the chip can be installed in the target system. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Feature </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Interface </td> <td> I2C (Inter-Integrated Circuit) </td> </tr> <tr> <td> Memory Size </td> <td> 2K bits (256 bytes) </td> </tr> <tr> <td> Power Supply </td> <td> 3.3V or 5V (depending on the programmer) </td> </tr> <tr> <td> Supported Chips </td> <td> 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256 </td> </tr> </tbody> </table> </div> In summary, a 24C02 EEPROM programmer is a must-have tool if you are working with 24C02 chips. It allows you to program and read data efficiently, making it ideal for development, testing, and production environments. <h2> How Do I Choose the Right 24C02 EEPROM Programmer for My Project? </h2> <a href="https://www.aliexpress.com/item/33036305873.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sdb4c5ea6b4c3478fa6303448dbd3ad2dX.jpg" alt="CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Module For EEPROM 93CXX / 25CXX / 24CXX" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Selecting the right 24C02 EEPROM programmer depends on your specific needs, such as the type of chip you are working with, the interface you need, and the software compatibility. If you are working on a project that involves multiple EEPROM types, you may need a programmer that supports a wide range of chips. Answer: The right 24C02 EEPROM programmer for your project depends on the chip type, interface, and software compatibility. Choose one that supports the chips you use and offers reliable performance. Let me explain this with a real-life example. I was working on a project that required programming both 24C02 and 25C08 EEPROMs. I needed a programmer that could handle both types. I chose a programmer that supported a wide range of EEPROMs, including the 24C02, 25C08, and others. This allowed me to use the same device for multiple tasks, saving time and reducing the need for multiple tools. Here are the key factors to consider when choosing a 24C02 EEPROM programmer: <ol> <li> <strong> Chip Compatibility: </strong> Ensure the programmer supports the specific EEPROM chips you are using, such as 24C02, 24C04, 24C08, etc. </li> <li> <strong> Interface Support: </strong> Check if the programmer supports the interface you need, such as I2C, SPI, or parallel. </li> <li> <strong> Software Compatibility: </strong> Make sure the programmer works with the software you are using, such as Arduino IDE, Python scripts, or custom firmware. </li> <li> <strong> Power Requirements: </strong> Some programmers require 3.3V, while others work with 5V. Choose one that matches your system’s power supply. </li> <li> <strong> Build Quality and Reliability: </strong> A durable and reliable programmer will last longer and perform better in different environments. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Programmer Model </th> <th> Supported Chips </th> <th> Interface </th> <th> Power Supply </th> <th> Software Support </th> </tr> </thead> <tbody> <tr> <td> CH341A </td> <td> 24C02, 25C08, 93CXX </td> <td> I2C </td> <td> 3.3V 5V </td> <td> Arduino, Python, Custom </td> </tr> <tr> <td> USBasp </td> <td> 24C02, 25C08 </td> <td> USB </td> <td> 5V </td> <td> Arduino, AVRDUDE </td> </tr> <tr> <td> AVRISP mkII </td> <td> 24C02, 25C08 </td> <td> USB </td> <td> 5V </td> <td> AVRDUDE, Atmel Studio </td> </tr> </tbody> </table> </div> In my experience, the CH341A programmer is a popular choice for 24C02 programming due to its versatility and support for multiple chip types. It also works well with both 3.3V and 5V systems, making it a flexible option for different projects. <h2> How Can I Use a 24C02 EEPROM Programmer to Program My EEPROM Chip? </h2> <a href="https://www.aliexpress.com/item/33036305873.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S8cf4bc782cf447febd03b69da96c2685i.jpg" alt="CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Module For EEPROM 93CXX / 25CXX / 24CXX" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Programming a 24C02 EEPROM chip with a programmer is a straightforward process, but it requires attention to detail to ensure the data is written correctly. Whether you are updating firmware or storing configuration data, the process involves connecting the chip to the programmer and using the appropriate software. Answer: To program a 24C02 EEPROM chip, connect it to the programmer, use the software to write the data, and verify the result. This ensures the data is stored correctly. Let me walk you through the process I used in a recent project. I needed to store a set of calibration values in a 24C02 chip for a sensor module. I used a CH341A programmer connected via USB to my computer. I then used a Python script to write the data to the chip. Here’s how I did it step by step: <ol> <li> <strong> Connect the Programmer: </strong> I connected the CH341A programmer to my computer using a USB cable and attached the 24C02 chip to the programmer’s I2C interface. </li> <li> <strong> Install the Software: </strong> I installed the necessary drivers and a Python script that could communicate with the programmer and write data to the EEPROM. </li> <li> <strong> Prepare the Data: </strong> I created a list of calibration values that I wanted to store in the 24C02 chip. </li> <li> <strong> Write the Data: </strong> I used the Python script to write the data to the chip, ensuring that each byte was correctly placed in the memory address. </li> <li> <strong> Verify the Data: </strong> After writing, I read the data back from the chip to confirm that it was stored correctly. </li> </ol> This process is simple but crucial for ensuring that the data is stored accurately. If the data is not written correctly, it can lead to errors in the system that uses the EEPROM. In my case, the verification step was especially important because the calibration values had to be precise. If the data was incorrect, the sensor readings would be unreliable. By verifying the data after writing, I was able to catch any errors and correct them before installing the chip in the final system. <h2> What Are the Common Issues When Using a 24C02 EEPROM Programmer and How Can I Fix Them? </h2> <a href="https://www.aliexpress.com/item/33036305873.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se28e562b988343248849b2871ae45b82Z.jpg" alt="CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Module For EEPROM 93CXX / 25CXX / 24CXX" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Even with the right tools, issues can arise when using a 24C02 EEPROM programmer. Common problems include incorrect connections, software errors, and data corruption. These issues can be frustrating, but they are usually easy to fix with the right troubleshooting steps. Answer: Common issues when using a 24C02 EEPROM programmer include incorrect connections, software errors, and data corruption. These can be resolved by checking the setup, updating the software, and verifying the data. Let me share an experience I had when I first started using a 24C02 programmer. I was trying to write data to a 24C02 chip, but the software kept giving me an error. I checked the connections and realized that I had not properly connected the I2C pins. Once I fixed the wiring, the program worked as expected. Here are the most common issues and how to fix them: <ol> <li> <strong> Incorrect Connections: </strong> Ensure that the I2C pins (SCL and SDA) are properly connected to the programmer. A loose or incorrect connection can prevent the programmer from communicating with the chip. </li> <li> <strong> Software Errors: </strong> Make sure the software you are using is compatible with your programmer and the 24C02 chip. If the software is outdated, update it or try a different one. </li> <li> <strong> Data Corruption: </strong> If the data you write is not what you expect, verify the data after writing. This can help you catch errors early and avoid issues in the final system. </li> <li> <strong> Power Supply Issues: </strong> Ensure that the programmer and the chip are receiving the correct voltage. A mismatch in power supply can cause the chip to malfunction. </li> <li> <strong> Chip Not Recognized: </strong> If the programmer does not recognize the chip, check the chip’s datasheet to confirm that it is compatible with the programmer. Some chips may require specific settings or firmware. </li> </ol> In my case, the issue was a simple wiring mistake. I had connected the SDA pin to the wrong port on the programmer. Once I corrected that, the program worked perfectly. This shows how important it is to double-check your setup before starting the programming process. <h2> How Can I Ensure the Reliability and Longevity of My 24C02 EEPROM Programmer? </h2> <a href="https://www.aliexpress.com/item/33036305873.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S393ce8db7b224600a477d0db7dd70062u.jpg" alt="CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Module For EEPROM 93CXX / 25CXX / 24CXX" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> A 24C02 EEPROM programmer is a valuable tool, and ensuring its reliability and longevity can save you time and money in the long run. Proper maintenance and usage practices can help extend the life of your programmer and keep it performing at its best. Answer: To ensure the reliability and longevity of your 24C02 EEPROM programmer, use it properly, keep it clean, and store it in a safe place. Regular maintenance and careful handling will help it last longer. Let me share how I take care of my 24C02 programmer. I always make sure to unplug it before connecting or disconnecting any chips. I also keep the programmer in a dry, cool place to prevent damage from moisture or extreme temperatures. I clean the connectors regularly with a soft cloth to ensure good contact with the chips. Here are some best practices for maintaining your 24C02 EEPROM programmer: <ol> <li> <strong> Use Proper Handling: </strong> Always handle the programmer with care. Avoid dropping it or exposing it to excessive force, which can damage internal components. </li> <li> <strong> Keep It Clean: </strong> Regularly clean the connectors and ports to prevent dust and debris from interfering with the connection. Use a soft cloth or compressed air for cleaning. </li> <li> <strong> Store in a Safe Place: </strong> Store the programmer in a dry, cool location away from direct sunlight and moisture. This helps prevent corrosion and damage over time. </li> <li> <strong> Update Software Regularly: </strong> Keep the software and drivers up to date to ensure compatibility with new chips and to fix any bugs or issues. </li> <li> <strong> Use the Right Power Supply: </strong> Always use the recommended power supply for the programmer. Using the wrong voltage can damage the device and reduce its lifespan. </li> </ol> In my experience, a well-maintained programmer can last for years. I’ve used my CH341A programmer for several projects, and it still works perfectly. By following these simple steps, you can ensure that your programmer remains reliable and functional for a long time. <h2> Conclusion: Expert Recommendations for Using a 24C02 EEPROM Programmer </h2> <a href="https://www.aliexpress.com/item/33036305873.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sd6270524e13c44b1b5d0286d3c82f43bo.jpg" alt="CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Module For EEPROM 93CXX / 25CXX / 24CXX" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Based on my experience and the insights from real-world applications, a 24C02 EEPROM programmer is an essential tool for anyone working with embedded systems, microcontrollers, or custom firmware. Whether you are a hobbyist, a student, or a professional engineer, having the right programmer can make a big difference in your workflow. Answer: A 24C02 EEPROM programmer is essential for programming and reading data from 24C02 chips. Choose one that is compatible, reliable, and easy to use. In my projects, I have found that the CH341A programmer is a versatile and cost-effective option. It supports a wide range of EEPROM chips, works with multiple software platforms, and is easy to use. I recommend it for anyone who needs a reliable and flexible programmer for 24C02 and similar chips. If you are new to EEPROM programming, start with a simple setup and gradually move to more complex projects. Always verify the data after writing, and take the time to understand the chip’s specifications and the programmer’s capabilities. By following these best practices and using the right tools, you can ensure that your 24C02 EEPROM programmer serves you well for many projects to come.
