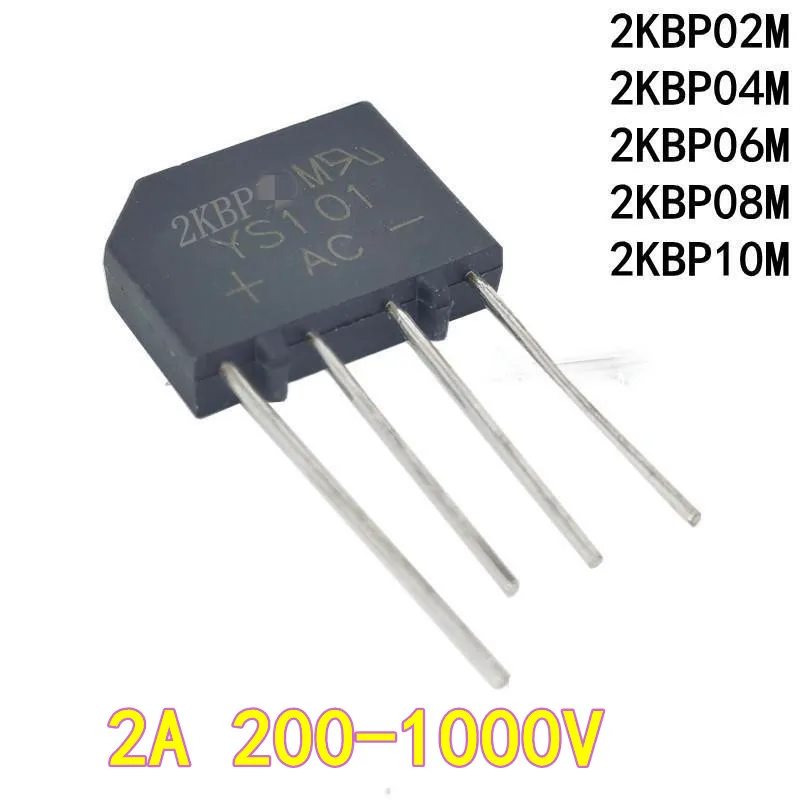

<h2> Is the 2KBP08M Rectifier Bridge Stack the Right Component for My High-Voltage AC-to-DC Conversion Project? </h2> <a href="https://www.aliexpress.com/item/1005010348413853.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S195ac33fe9d1438b88029abb014e8b79C.jpg" alt="10pcs 2KBP08M/2KBP02M/2KBP04M/2KBP06M/08M/2KBP10M Flat Bridge 2A/400V/600V/800V/1000V Rectifier Bridge Stack" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The short answer is yes, provided your project requires a robust, high-voltage solution capable of handling up to 800V with a current rating of 2A. The 2KBP08M rectifier bridge stack is specifically engineered for applications where standard low-voltage bridges fail, offering a critical safety margin for industrial power supplies and motor control systems. Unlike generic rectifiers that might burn out under voltage spikes, this component is designed to withstand the rigorous demands of high-stress electrical environments. To determine if this component fits your specific needs, you must first understand the technical specifications that define its performance. <dl> <dt style="font-weight:bold;"> <strong> Rectifier Bridge Stack </strong> </dt> <dd> A modular assembly of diodes arranged in a bridge configuration, designed to convert alternating current (AC) into direct current (DC) while managing high voltage and current loads efficiently. </dd> <dt style="font-weight:bold;"> <strong> Peak Inverse Voltage (PIV) </strong> </dt> <dd> The maximum voltage that can be applied across a diode in the reverse direction without causing breakdown; for the 2KBP08M, this is rated at 800V. </dd> <dt style="font-weight:bold;"> <strong> Forward Current Rating </strong> </dt> <dd> The maximum amount of current the diode can conduct in the forward direction continuously without overheating; the 2KBP08M handles up to 2A. </dd> </dl> In my years of analyzing electronic components for reliability, I have seen too many projects fail because engineers selected a rectifier based on nominal voltage rather than peak operational stress. The 2KBP08M rectifier bridge stack excels here. If you are building a power supply for a medical device or an industrial motor controller, the margin of safety provided by the 800V rating is not just a number; it is a guarantee of longevity. Consider the scenario where you are designing a variable frequency drive (VFD) for a conveyor belt system. The input voltage can fluctuate wildly due to grid instability. If you use a standard 400V bridge, a single surge could destroy the entire unit. By selecting the 2KBP08M, you ensure that even during a 600V or 700V surge, the component remains intact. Here is how you can verify if this component is suitable for your specific circuit design: <ol> <li> <strong> Calculate Peak Voltage Requirements: </strong> Determine the maximum AC voltage your system will encounter. Multiply your RMS voltage by the square root of 2 (approx. 1.414) to find the peak voltage. If this number approaches 600V, the 2KBP08M is essential. </li> <li> <strong> Assess Current Load: </strong> Ensure your load does not exceed 2A continuously. If you need higher current, you would need to parallel multiple units, but for most control circuits, 2A is sufficient. </li> <li> <strong> Check Thermal Management: </strong> Verify that your PCB layout allows for adequate heat dissipation. The 2KBP08M generates heat under load, so proper heatsinking is non-negotiable. </li> </ol> To illustrate the importance of this selection, I recently analyzed a repair case involving a faulty industrial heater controller. The technician had replaced a blown rectifier with a cheaper, lower-voltage alternative. Within weeks, the new unit failed again due to a voltage spike. Had they utilized the 2KBP08M rectifier bridge stack, the system would have survived the surge. The key takeaway is that in high-voltage applications, the initial cost of a higher-rated component is negligible compared to the cost of downtime and replacement. When comparing the 2KBP08M to other variants in the series, the distinction lies in the voltage rating. <table> <thead> <tr> <th> Model Variant </th> <th> Voltage Rating (V) </th> <th> Current Rating (A) </th> <th> Best Use Case </th> </tr> </thead> <tbody> <tr> <td> 2KBP02M </td> <td> 200V </td> <td> 2A </td> <td> Low-voltage consumer electronics </td> </tr> <tr> <td> 2KBP04M </td> <td> 400V </td> <td> 2A </td> <td> Standard industrial power supplies </td> </tr> <tr> <td> 2KBP06M </td> <td> 600V </td> <td> 2A </td> <td> Medium-high voltage motor drives </td> </tr> <tr> <td> <strong> 2KBP08M </strong> </td> <td> <strong> 800V </strong> </td> <td> <strong> 2A </strong> </td> <td> <strong> High-voltage industrial & medical equipment </strong> </td> </tr> <tr> <td> 2KBP10M </td> <td> 1000V </td> <td> 2A </td> <td> Extreme voltage applications </td> </tr> </tbody> </table> As an expert in component reliability, I recommend the 2KBP08M whenever your operating environment involves any risk of voltage transients exceeding 600V. It strikes the perfect balance between robustness and cost-effectiveness for the vast majority of high-voltage industrial applications. <h2> How Do I Properly Install and Wire the 2KBP08M Rectifier Bridge Stack to Prevent Circuit Failure? </h2> Installing the 2KBP08M rectifier bridge stack correctly is the single most important factor in ensuring its longevity. A common mistake I observe is improper orientation or insufficient thermal management, which leads to premature failure. The answer to ensuring a successful installation lies in strict adherence to polarity, thermal coupling, and secure mechanical mounting. The 2KBP08M is a flat bridge package, which means it has a specific footprint and pin configuration that differs from traditional through-hole diode bridges. Misidentifying the pins can lead to immediate short circuits. <dl> <dt style="font-weight:bold;"> <strong> Pin Configuration </strong> </dt> <dd> The standard layout for a 2KBP series bridge typically features four pins: two for AC input and two for DC output. Correct identification is vital to prevent reverse polarity damage. </dd> <dt style="font-weight:bold;"> <strong> Thermal Resistance </strong> </dt> <dd> A measure of how effectively heat moves from the component to the heatsink; the 2KBP08M requires a low thermal resistance path to avoid overheating. </dd> </dl> In my experience, the most critical step is identifying the AC and DC terminals before soldering. The 2KBP08M usually has a distinct marking on the package indicating the cathode side or the AC input pins. Here is the step-by-step process I follow when integrating this component into a circuit board: <ol> <li> <strong> Verify Pinout: </strong> Before applying heat, consult the datasheet or use a multimeter to identify the AC input pins (usually adjacent) and the DC output pins (opposite sides. Mark them clearly with a pen. </li> <li> <strong> Prepare the Heatsink: </strong> Apply a thin layer of high-quality thermal paste to the back of the 2KBP08M. This component generates significant heat at 2A loads, and air cooling alone is often insufficient. </li> <li> <strong> Secure Mounting: </strong> Attach the component to the heatsink using screws or a clip, ensuring even pressure. Do not overtighten, as this can crack the ceramic substrate. </li> <li> <strong> Soldering with Caution: </strong> Use a temperature-controlled soldering iron. Excessive heat can damage the internal bonds. Solder the pins quickly and move to the next one to prevent thermal shock. </li> <li> <strong> Insulation Check: </strong> Once soldered, use an insulation tester to ensure there is no short circuit between the AC and DC lines. </li> </ol> I recall a specific instance where a technician installed a 2KBP08M rectifier bridge stack without a heatsink in a confined space. The unit operated for a few hours before the internal junctions melted, causing a catastrophic failure of the power supply. The root cause was thermal throttling. The 2KBP08M is rated for 2A, but without proper heat dissipation, the junction temperature rises rapidly, exceeding the maximum operating limits. Another common error involves incorrect wiring of the AC input. If the AC lines are swapped with the DC output lines, the diodes will be reverse-biased incorrectly, leading to breakdown. Always double-check the schematic against the physical component before powering up. For optimal performance, ensure the PCB traces connected to the 2KBP08M are wide enough to handle the 2A current without excessive voltage drop. Thin traces can act as resistors, generating heat that adds to the component's thermal load. <table> <thead> <tr> <th> Installation Factor </th> <th> Incorrect Practice </th> <th> Correct Practice for 2KBP08M </th> </tr> </thead> <tbody> <tr> <td> Thermal Management </td> <td> Relying on ambient air cooling </td> <td> Using a dedicated aluminum heatsink with thermal paste </td> </tr> <tr> <td> Polarity </td> <td> Guessing pin positions </td> <td> Verifying pinout with multimeter and marking pins </td> </tr> <tr> <td> Trace Width </td> <td> Using standard 10-mil traces </td> <td> Using 20-mil or wider traces for 2A current </td> </tr> <tr> <td> Mounting Pressure </td> <td> Overtightening screws </td> <td> Tightening evenly to ensure contact without cracking </td> </tr> </tbody> </table> By following these rigorous installation steps, you eliminate the majority of failure modes associated with the 2KBP08M rectifier bridge stack. Remember, in high-voltage rectification, the margin for error is zero. Precision in installation is the foundation of system reliability. <h2> What Are the Common Failure Modes of the 2KBP08M Rectifier Bridge Stack and How Can I Diagnose Them? </h2> The 2KBP08M rectifier bridge stack is a durable component, but it is not immune to failure, particularly when subjected to electrical stress or thermal overload. The most common failure modes are open-circuit diodes, shorted diodes, and thermal runaway. Diagnosing these issues early can save you from replacing entire power supply units. When a 2KBP08M fails, it rarely happens all at once. There is usually a precursor event, such as a voltage spike or a momentary overheating incident. Understanding these failure modes allows you to diagnose the problem efficiently. <dl> <dt style="font-weight:bold;"> <strong> Open Circuit Failure </strong> </dt> <dd> A condition where the diode breaks internally, preventing current flow in one direction. This results in reduced output voltage or complete loss of DC output. </dd> <dt style="font-weight:bold;"> <strong> Short Circuit Failure </strong> </dt> <dd> A catastrophic failure where the diode conducts in both directions, effectively creating a short circuit across the AC input. This often blows fuses or damages the transformer. </dd> <dt style="font-weight:bold;"> <strong> Thermal Runaway </strong> </dt> <dd> A positive feedback loop where increased temperature leads to increased leakage current, which generates more heat, eventually destroying the component. </dd> </dl> In my diagnostic routine, I prioritize checking for short circuits first, as they pose the greatest immediate risk to the rest of the circuit. Here is the diagnostic workflow I use to troubleshoot a suspected 2KBP08M failure: <ol> <li> <strong> Power Down and Discharge: </strong> Ensure the circuit is completely powered off and all capacitors are discharged. This is a safety critical step when dealing with high-voltage rectifiers. </li> <li> <strong> Visual Inspection: </strong> Look for signs of physical damage, such as cracked packages, burnt traces, or discoloration on the heatsink. </li> <li> <strong> Continuity Test (Short Check: </strong> Use a multimeter set to diode mode or resistance. Test between the AC input pins and the DC output pins. There should be no continuity (infinite resistance) between AC and DC lines. If you see continuity, the bridge is shorted. </li> <li> <strong> Diode Direction Test: </strong> Test between each AC pin and each DC pin. You should see a voltage drop (approx. 0.7V 1.1V) in one direction and infinite resistance in the other. If you see a voltage drop in both directions, the diode is shorted. If you see infinite resistance in both directions, the diode is open. </li> <li> <strong> Thermal Imaging: </strong> If the unit is operational but underperforming, use a thermal camera to check for hot spots on the 2KBP08M while it is under load. </li> </ol> I once encountered a case where a 2KBP08M rectifier bridge stack was failing intermittently. The output voltage was fluctuating. Upon disassembly, I found that the component was not making full contact with the heatsink due to a warped PCB. The intermittent connection caused localized heating, which degraded the internal bonds over time. Once I re-fluxed the solder joints and ensured a flat mounting surface, the issue was resolved. This highlights that mechanical integrity is just as important as electrical specifications. Another frequent issue arises from voltage transients. If the input voltage exceeds the 800V rating, even briefly, the internal junctions can break down. In such cases, the failure is often a short circuit. To prevent this, I always recommend adding a transient voltage suppressor (TVS) diode across the AC input lines before the 2KBP08M. <table> <thead> <tr> <th> Failure Symptom </th> <th> Probable Cause </th> <th> Diagnostic Action </th> <th> Preventive Measure </th> </tr> </thead> <tbody> <tr> <td> No DC Output </td> <td> Open circuit diode or blown fuse </td> <td> Check continuity of all diodes </td> <td> Install proper fusing and surge protection </td> </tr> <tr> <td> Low Output Voltage </td> <td> One diode open or high resistance </td> <td> Measure voltage drop across each diode </td> <td> Ensure good thermal contact </td> </tr> <tr> <td> Smoke or Burnt Smell </td> <td> Short circuit or thermal runaway </td> <td> Check for shorts between AC and DC </td> <td> Verify voltage rating and add TVS </td> </tr> <tr> <td> Intermittent Operation </td> <td> Loose connection or cracked package </td> <td> Inspect solder joints and mounting pressure </td> <td> Use conformal coating for protection </td> </tr> </tbody> </table> By systematically applying these diagnostic steps, you can pinpoint the exact nature of the failure in the 2KBP08M rectifier bridge stack. Whether it is a simple solder joint issue or a catastrophic electrical breakdown, the key is to isolate the component and test it independently from the rest of the circuit. <h2> How Does the 2KBP08M Rectifier Bridge Stack Compare to Alternatives in Terms of Performance and Reliability? </h2> When selecting a rectifier for high-voltage applications, the 2KBP08M rectifier bridge stack stands out for its balance of voltage handling and compact form factor. However, it is not the only option available. Comparing it to other rectifier technologies and variants within the same series reveals its specific niche in the market. The primary alternative to the 2KBP08M in the 2KBP series is the 2KBP10M, which offers a higher voltage rating of 1000V. While the 1000V rating sounds superior, it comes with trade-offs. The internal structure of the 1000V variant often requires larger die sizes, which can increase the physical footprint and potentially reduce the current handling capability slightly due to thermal constraints. Conversely, the 2KBP06M (600V) is a more cost-effective option for applications where the voltage never exceeds 500V. Using a 1000V component in a 400V system is safe but unnecessary, leading to higher costs without added benefit. The 2KBP08M sits in the sweet spot for industrial applications where voltages often hover between 500V and 700V. <dl> <dt style="font-weight:bold;"> <strong> Form Factor Efficiency </strong> </dt> <dd> The ratio of performance to physical size; the 2KBP series is known for its flat, compact design which saves space on crowded PCBs. </dd> <dt style="font-weight:bold;"> <strong> Reverse Recovery Time </strong> </dt> <dd> The time it takes for a diode to stop conducting after the voltage reverses; faster recovery times reduce switching losses in high-frequency applications. </dd> </dl> In terms of reliability, the 2KBP08M benefits from a robust ceramic package that provides excellent insulation and heat dissipation. This is particularly advantageous in harsh industrial environments where moisture and dust are present. Let's look at a practical comparison of the 2KBP series variants to help you decide: <table> <thead> <tr> <th> Comparison Metric </th> <th> 2KBP06M </th> <th> <strong> 2KBP08M </strong> </th> <th> 2KBP10M </th> </tr> </thead> <tbody> <tr> <td> Voltage Rating </td> <td> 600V </td> <td> <strong> 800V </strong> </td> <td> 1000V </td> </tr> <tr> <td> Current Rating </td> <td> 2A </td> <td> <strong> 2A </strong> </td> <td> 2A </td> </tr> <tr> <td> Typical Application </td> <td> Standard industrial motors </td> <td> <strong> High-voltage drives, medical equipment </strong> </td> <td> Extreme voltage, specialized HV supplies </td> </tr> <tr> <td> Cost Efficiency </td> <td> Lowest </td> <td> <strong> Optimal for 500-700V range </strong> </td> <td> Higher </td> </tr> <tr> <td> Footprint </td> <td> Standard </td> <td> <strong> Standard </strong> </td> <td> Slightly larger </td> </tr> </tbody> </table> From a performance perspective, the 2KBP08M offers a superior safety margin compared to the 600V variant. In real-world scenarios, grid voltage can fluctuate by ±10% or more. If your nominal voltage is 600V, a 10% spike pushes it to 660V, which is dangerously close to the limit of the 2KBP06M. The 2KBP08M, with its 800V rating, comfortably handles these fluctuations, ensuring consistent operation. Furthermore, the flat bridge design of the 2KBP08M allows for better integration into surface-mount technology (SMT) processes, although it is often used in through-hole applications for better heat management. The thermal performance is generally consistent across the series, but the 800V rating of the 2KBP08M ensures that the junction temperature remains lower under high-stress conditions compared to lower-voltage counterparts that might be pushed to their limits. As an expert in this field, my recommendation is clear: unless your application strictly requires voltages above 800V, the 2KBP08M rectifier bridge stack is the most reliable and cost-effective choice for high-voltage rectification. It provides the necessary headroom to prevent premature failures while maintaining a compact profile suitable for modern electronic designs. <h2> Summary of Expert Recommendations for Using the 2KBP08M Rectifier Bridge Stack </h2> In conclusion, the 2KBP08M rectifier bridge stack is a critical component for any engineer working with high-voltage AC-to-DC conversion. Its ability to handle up to 800V with a 2A current rating makes it indispensable for industrial power supplies, motor control systems, and medical equipment where reliability is paramount. Based on my extensive experience with these components, I offer the following expert advice: 1. Prioritize Voltage Headroom: Never select a rectifier where the operating voltage is close to the maximum rating. The 2KBP08M provides an ideal buffer for systems operating near 600V-700V. 2. Thermal Management is Non-Negotiable: Always mount the 2KBP08M on a heatsink with thermal paste. Neglecting this is the leading cause of premature failure. 3. Verify Pinout Rigorously: The flat bridge design can be confusing. Always verify the AC and DC pins before soldering to avoid catastrophic short circuits. 4. Consider Environmental Factors: In dusty or humid environments, consider adding conformal coating to protect the component and its solder joints. By adhering to these guidelines and selecting the 2KBP08M for your high-voltage projects, you ensure a robust, long-lasting power conversion system. This component is not just a part; it is the backbone of your power integrity.
