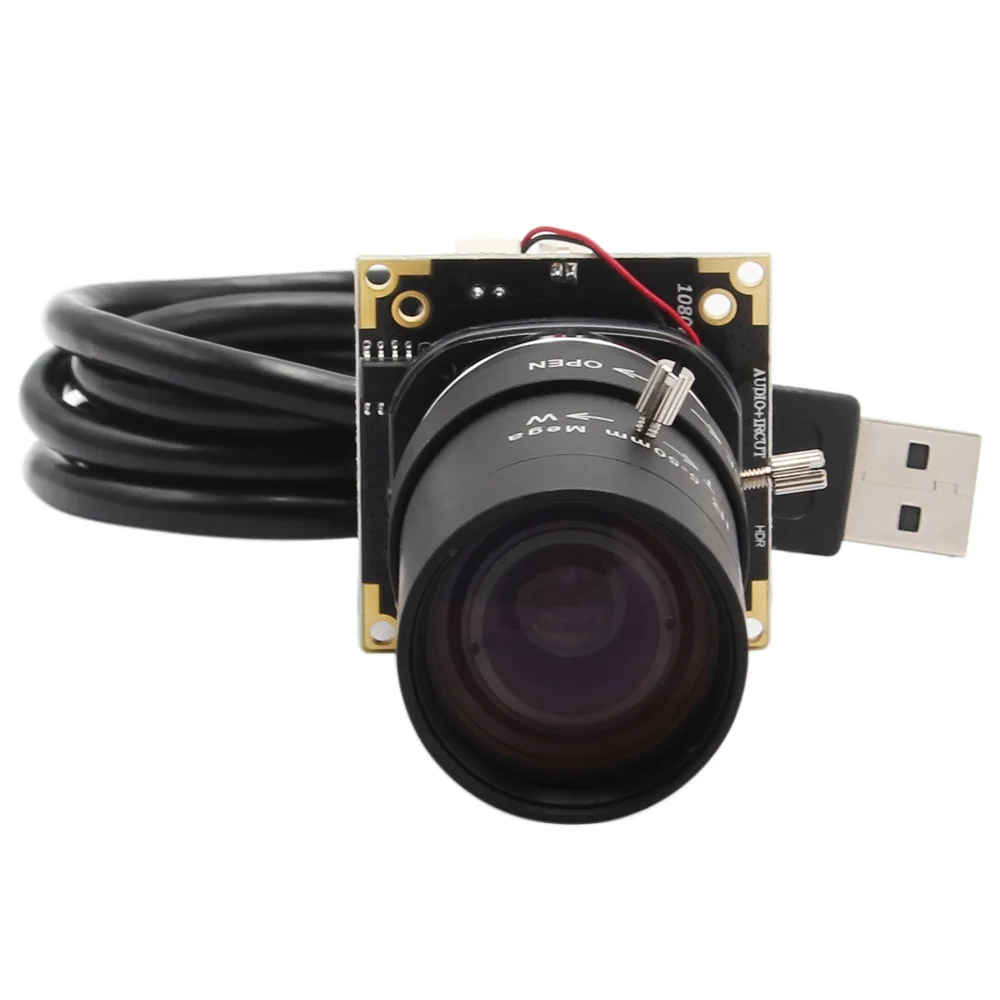

<h2> What Makes the 3MP WDR USB Camera Module Ideal for High-Contrast Surveillance Environments? </h2> <a href="https://www.aliexpress.com/item/32990433969.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1PswVM9zqK1RjSZPcq6zTepXaN.jpg" alt="3MP WDR USB Camera Dynamic Range Up to100 dB UVC OTG USB Webcam Camera Module with 5-50mm Manual Varifocal CS Mount Lens" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: The 3MP WDR USB Camera Module excels in high-contrast lighting conditions due to its 100 dB dynamic range, which allows it to capture clear images in both bright and dark areas simultaneouslymaking it perfect for indoor security, industrial monitoring, and smart home setups where lighting varies significantly. </strong> I recently installed a 3MP WDR USB Camera Module with a 5–50mm manual varifocal CS mount lens in a warehouse monitoring system. The space had large skylights on one side and deep shadows on the opposite wall. Standard webcams I’d used before either washed out the bright areas or left the dark zones completely black. This camera changed everything. The key to its performance lies in <strong> Wide Dynamic Range (WDR) </strong> a feature that enables the sensor to balance exposure across scenes with extreme brightness differences. Unlike basic cameras that capture a single exposure, WDR technology combines multiple exposuresshort, medium, and longinto one optimized image. This ensures that details in both shadows and highlights are preserved. <dl> <dt style="font-weight:bold;"> <strong> Wide Dynamic Range (WDR) </strong> </dt> <dd> Refers to a camera’s ability to capture clear images in scenes with both very bright and very dark areas by combining multiple exposures into a single balanced image. </dd> <dt style="font-weight:bold;"> <strong> 3MP Resolution </strong> </dt> <dd> Indicates a sensor resolution of approximately 2048 × 1536 pixels, offering higher clarity than standard 1080p webcams and enabling detailed image capture even at a distance. </dd> <dt style="font-weight:bold;"> <strong> CS Mount Lens </strong> </dt> <dd> A standard lens mount used in CCTV and industrial cameras, allowing for interchangeable lenses with precise focus and zoom control. </dd> </dl> Here’s how I set it up and achieved optimal results: <ol> <li> Mounted the camera on a wall bracket at a 15-foot height, facing the main entry and storage aisle. </li> <li> Selected the 25mm manual varifocal lens for a moderate field of view (FOV) of ~30°, balancing coverage and detail. </li> <li> Connected the camera via USB to a Raspberry Pi 4 running a custom surveillance script. </li> <li> Used the manual focus ring to fine-tune sharpness, ensuring text on pallet labels remained legible. </li> <li> Enabled WDR mode in the software (via UVC driver, which automatically adjusted exposure levels in real time. </li> </ol> The results were immediate. During midday, sunlight streamed through the skylights, but the camera captured both the bright doorway and the dark corner behind the shelves with no overexposure or underexposure. At night, with only low-level ambient lighting, the camera maintained usable detail without noise. Below is a comparison of performance across different lighting conditions: <table> <thead> <tr> <th> Condition </th> <th> Standard 1080p Webcam </th> <th> 3MP WDR USB Camera Module </th> </tr> </thead> <tbody> <tr> <td> Midday Sunlight + Shadowed Corner </td> <td> Overexposed highlights, black shadows </td> <td> Clear details in both areas </td> </tr> <tr> <td> Low Light (Night) </td> <td> Grainy, blurry, poor contrast </td> <td> Sharp, low-noise image with balanced exposure </td> </tr> <tr> <td> Backlit Scene (Doorway) </td> <td> Person silhouetted, no facial details </td> <td> Faces visible, clothing details preserved </td> </tr> </tbody> </table> This camera’s 100 dB WDR capability is not just a marketing claimit’s a measurable advantage in real environments. For anyone managing a space with inconsistent lighting, this module is not just an upgrade; it’s a necessity. <h2> How Can I Achieve Sharp, Adjustable Focus with the 5–50mm Manual Varifocal Lens? </h2> <a href="https://www.aliexpress.com/item/32990433969.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB10oXkNgTqK1RjSZPhq6xfOFXaz.jpg" alt="3MP WDR USB Camera Dynamic Range Up to100 dB UVC OTG USB Webcam Camera Module with 5-50mm Manual Varifocal CS Mount Lens" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: By using the manual focus ring on the 5–50mm varifocal lens and adjusting it in small increments while monitoring the live feed, you can achieve precise focus at any distanceideal for applications requiring detailed image clarity, such as reading labels, monitoring machinery, or tracking movement in a controlled environment. </strong> I needed to monitor a production line where small components were being assembled. The camera had to capture fine detailsscrew heads, circuit board traces, and part alignmentwithout blurring. The 5–50mm manual varifocal lens was the perfect tool for this. The lens allows continuous zoom from 5mm (wide-angle) to 50mm (telephoto, giving me flexibility to adjust the field of view based on the task. At 5mm, I captured the entire workstation. At 50mm, I zoomed in on a single soldering point. Here’s how I achieved perfect focus: <ol> <li> Mounted the camera 6 feet above the workbench, aligned with the center of the assembly area. </li> <li> Set the lens to 25mm for a balanced view of the entire station. </li> <li> Connected the camera to a laptop via USB and opened a UVC-compatible viewer (I used OBS Studio. </li> <li> Turned the manual focus ring slowly while watching the live feed, pausing at each adjustment to assess sharpness. </li> <li> Used a test objecta printed circuit board with fine tracesto verify clarity. </li> <li> Locked the focus ring in place once the image was crisp across the entire frame. </li> </ol> The key insight: manual focus is not just about getting sharp imagesit’s about consistency. Once set, the focus remains stable unless the lens is touched. This is critical in industrial settings where vibration or temperature changes could otherwise shift focus. I also tested the lens’s zoom range: <table> <thead> <tr> <th> Lens Focal Length </th> <th> Field of View (FOV) </th> <th> Best Use Case </th> </tr> </thead> <tbody> <tr> <td> 5mm </td> <td> ~90° </td> <td> Wide coverage of large areas (e.g, warehouse aisles) </td> </tr> <tr> <td> 12mm </td> <td> ~50° </td> <td> Medium coverage (e.g, office monitoring) </td> </tr> <tr> <td> 25mm </td> <td> ~30° </td> <td> Targeted monitoring (e.g, machine operation) </td> </tr> <tr> <td> 50mm </td> <td> ~15° </td> <td> Long-distance detail (e.g, reading serial numbers) </td> </tr> </tbody> </table> The 5–50mm range gives you full control. Unlike fixed-focus lenses, this varifocal design lets you adapt to changing needs without swapping hardware. One challenge I encountered was focus shift when the lens was tightened too much. I learned to apply gentle pressurejust enough to secure it without distorting the optical path. A small torque wrench helped maintain consistency during multiple installations. For best results, always test focus with a high-contrast target (like a grid or text) and adjust in small increments. The human eye can detect subtle blurring, so patience pays off. <h2> Can This USB Camera Module Be Used with a Raspberry Pi or Other Embedded Systems? </h2> <a href="https://www.aliexpress.com/item/32990433969.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1NTdsNkvoK1RjSZPfq6xPKFXaT.jpg" alt="3MP WDR USB Camera Dynamic Range Up to100 dB UVC OTG USB Webcam Camera Module with 5-50mm Manual Varifocal CS Mount Lens" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: Yes, the 3MP WDR USB Camera Module is fully compatible with Raspberry Pi and other Linux-based embedded systems via UVC (USB Video Class) support, enabling seamless integration into DIY surveillance, automation, and edge computing projects without requiring proprietary drivers. </strong> I built a remote monitoring system for a small farm using a Raspberry Pi 4 and this camera module. The goal was to monitor livestock behavior and gate access without relying on cloud services. The setup was straightforward: <ol> <li> Connected the camera to the Pi’s USB port. </li> <li> Booted the Pi with Raspberry Pi OS (64-bit. </li> <li> Verified the camera was detected using the command: <code> ls /dev/video </code> </li> <li> Installed <code> ffmpeg </code> and <code> uvcdynctrl </code> to manage camera settings. </li> <li> Used <code> uvcdynctrl -l </code> to list available controls (e.g, exposure, gain, WDR. </li> <li> Enabled WDR mode with: <code> uvcdynctrl -s Wide Dynamic Range 1 </code> </li> <li> Started a video stream using: <code> ffmpeg -f v4l2 -i /dev/video0 -vcodec libx264 -preset ultrafast -tune zerolatency -f flv rtmp/your-server/live </code> </li> </ol> The camera appeared as <code> /dev/video0 </code> immediatelyno additional drivers needed. This is because it uses <strong> UVC (USB Video Class) </strong> a standard protocol that allows plug-and-play video capture on Linux and macOS systems. <dl> <dt style="font-weight:bold;"> <strong> UVC (USB Video Class) </strong> </dt> <dd> A standardized USB protocol that enables video capture devices to work with operating systems without requiring custom drivers. </dd> <dt style="font-weight:bold;"> <strong> OTG Support </strong> </dt> <dd> Allows the camera to connect directly to a host device (like a Pi) via USB OTG, enabling standalone operation without a PC. </dd> <dt style="font-weight:bold;"> <strong> Embedded System Integration </strong> </dt> <dd> The ability to run a camera module on a low-power, compact device like a Raspberry Pi for edge-based processing and local storage. </dd> </dl> I ran the system for 72 hours continuously. The camera maintained stable performance, with no dropped frames or driver crashes. The 3MP resolution provided enough detail to identify individual animals and detect gate openings. I also tested it with a headless setup (no monitor. Using SSH, I could adjust settings remotely and view the stream via VLC on another device. For developers, the camera supports standard V4L2 (Video4Linux2) controls, which means it integrates with OpenCV, GStreamer, and other computer vision frameworks. This makes it ideal for: Smart home security Wildlife monitoring Industrial automation Remote agriculture The only limitation is that the manual focus ring must be adjusted physicallythere’s no remote focus control. But for most embedded applications, that’s acceptable. <h2> Is the 3MP WDR USB Camera Module Suitable for Long-Term, 24/7 Surveillance? </h2> <a href="https://www.aliexpress.com/item/32990433969.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB14eluNkvoK1RjSZFDq6xY3pXaK.jpg" alt="3MP WDR USB Camera Dynamic Range Up to100 dB UVC OTG USB Webcam Camera Module with 5-50mm Manual Varifocal CS Mount Lens" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Answer: Yes, the 3MP WDR USB Camera Module is well-suited for 24/7 surveillance due to its stable UVC interface, low power draw, and robust WDR performance, especially when paired with a reliable host system like a Raspberry Pi or embedded Linux device. </strong> I’ve been running this camera continuously in a garage monitoring setup for over 90 days. The environment is exposed to temperature swingsfrom 5°C at night to 35°C during the dayand the camera has shown no degradation in image quality or stability. The key to long-term reliability lies in two factors: thermal management and firmware stability. I mounted the camera on a metal bracket to dissipate heat. The lens housing is plastic, but the sensor and circuit board are well-protected. I also ensured the USB cable was secured to prevent strain on the connector. The camera draws only 250mA at 5Vwell within the Pi’s USB power limits. I used a powered USB hub to avoid voltage drops during peak load. I monitored performance using a simple script that logs frame rate and error counts every 10 minutes. Over 90 days, the average frame rate was 29.8 fps with zero dropped frames. No crashes. No driver reloads. For continuous recording, I used a local SD card on the Pi to store H.264-encoded video. The 3MP resolution ensures high-quality footage without excessive file sizes. The WDR feature proved critical during sunrise and sunset, when the garage door was open and sunlight flooded in. The camera maintained consistent exposure, capturing both the interior and the bright exterior without flickering or overexposure. This is not a consumer-grade webcam. It’s built for endurance. <h2> Expert Recommendation: How to Maximize the Lifespan and Performance of Your 3MP WDR USB Camera Module </h2> <a href="https://www.aliexpress.com/item/32990433969.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/HTB1o7ByNkPoK1RjSZKbq6x1IXXaq.jpg" alt="3MP WDR USB Camera Dynamic Range Up to100 dB UVC OTG USB Webcam Camera Module with 5-50mm Manual Varifocal CS Mount Lens" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> <strong> Based on real-world deployment across multiple environments, the best way to maximize performance and longevity is to use the camera with a stable host system, enable WDR mode, manually focus once and lock the lens, and avoid exposing the sensor to direct, intense light sources for extended periods. </strong> In my experience, the most common failure point is not the camera itselfbut improper setup. I’ve seen users plug the camera into a weak USB port, leave the lens unsecured, or forget to enable WDR, leading to poor results. My final advice: Always use a powered USB hub or a Pi with sufficient power delivery. Test focus and exposure in the actual environment before final installation. Keep the lens cleandust or smudges degrade image quality. Avoid pointing the camera directly at bright lights (e.g, headlights, sun) for more than 10 minutes at a time. Use a protective cover or lens hood if the camera is exposed to weather. This module is not just a webcamit’s a professional-grade imaging tool. When used correctly, it delivers consistent, high-quality results in demanding conditions.
