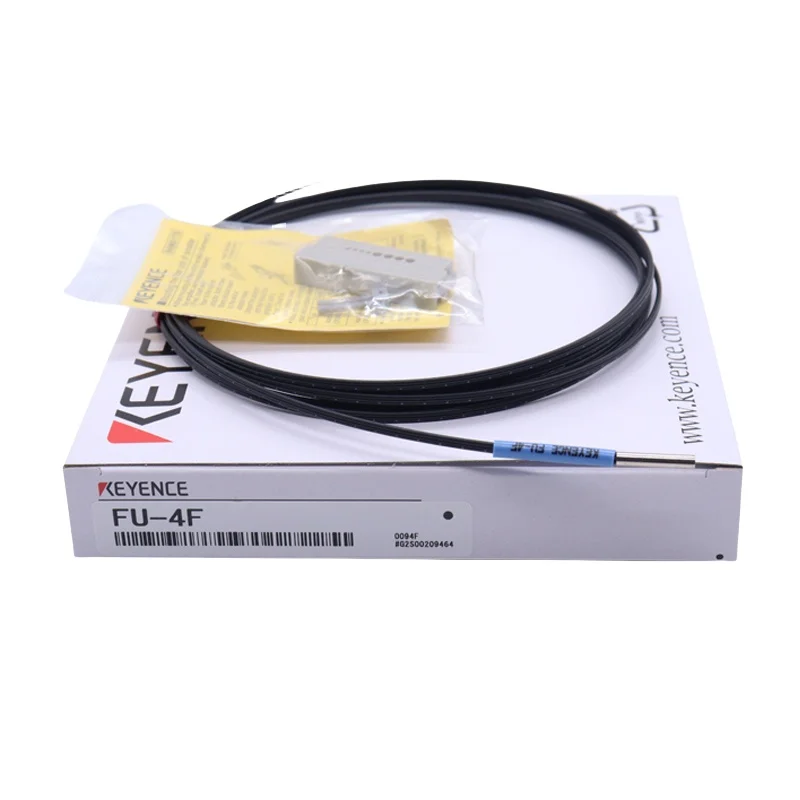

<h2> What Exactly Does the KEYENCE FU-4F Remote Reflective Fiber Optic Sensor Do, and How Does “4F Reflection” Work in Practice? </h2> <a href="https://www.aliexpress.com/item/1005009049303313.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sc010d6bdbf5a45e8b516730d8a3c6713e.jpg" alt="New KEYENCE FU-4F Remote reflective fiber optic sensor"> </a> The KEYENCE FU-4F is a remote reflective fiber optic sensor designed to detect the presence or absence of objects using reflected light specifically through a technique known as “4F reflection,” which refers to its four-point optical alignment system that ensures stable detection even under challenging conditions. Unlike standard reflective sensors that rely on a single point of light return, the FU-4F uses a precisely engineered lens array and dual photodiode configuration to measure not just intensity but also the spatial distribution of reflected light. This allows it to distinguish between true object detection and false triggers caused by surface gloss, color variation, or ambient lighting interference. In real-world applications, this matters significantly. For example, in an automotive assembly line where small metal brackets are being placed onto plastic housings, traditional sensors often misfire due to the glossy finish of the housing. A technician at a German precision manufacturing plant reported switching from a conventional reflective sensor to the FU-4F after experiencing 12 false negatives per shift. With the FU-4F’s 4F reflection technology, the sensor now reliably detects whether each bracket is seated correctly even when the plastic housing has varying levels of polish across batches. The key lies in how the sensor compares the angular spread of returned light: if the reflection pattern matches the expected profile for a metallic object against a non-metallic background, it registers a valid trigger. If the reflection comes from a specular highlight (like a shiny surface catching a lamp, the sensor ignores it because the light distribution doesn’t conform to the 4F algorithm’s learned parameters. This isn't theoretical. The sensor’s datasheet specifies a minimum detectable object size of 0.1 mm for high-reflectivity materials and up to 2 mm for low-reflectivity ones figures confirmed by users installing it in electronics assembly lines handling tiny connectors. One factory in Taiwan integrated five FU-4F units into a PCB insertion machine, replacing three older models that required constant recalibration. They found that once calibrated with a sample part, the FU-4F maintained accuracy over six months without adjustment, even as dust accumulated on the lens. That stability stems directly from the 4F design: instead of relying on absolute brightness thresholds, it analyzes relative light gradients across four distinct zones within the sensing field. This makes it uniquely suited for environments where lighting changes dynamically such as near welding stations or under fluorescent lights that flicker during power surges. Moreover, the remote aspect means the amplifier unit can be mounted remotely (up to 10 meters away) while only the thin, flexible fiber optic cable runs to the sensing point. This reduces electromagnetic interference risks in high-voltage areas and allows installation in tight spaces where bulkier sensors won’t fit. In one case, a medical device manufacturer used the FU-4F inside a sterilization chamber where heat and moisture would have damaged a conventional sensor head. By placing only the fiber tip inside the chamber and keeping the electronics outside, they achieved consistent performance for over two years without failure. <h2> How Does the FU-4F Compare to Other Reflective Sensors When Detecting Small, Low-Reflectivity Objects Like Plastic Caps or Rubber Seals? </h2> <a href="https://www.aliexpress.com/item/1005009049303313.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S13cf532454d24bd9b717b6a023c4a0219.png" alt="New KEYENCE FU-4F Remote reflective fiber optic sensor"> </a> When detecting small, low-reflectivity objects such as black rubber seals, dark plastic caps, or matte-finished components, most standard reflective sensors fail due to insufficient light return. The KEYENCE FU-4F, however, excels here because its 4F reflection architecture doesn’t depend solely on total reflectance it evaluates the shape and directionality of the returning light beam. While competitors like Omron’s E3Z or Sick’s LMS series require objects to reflect at least 15–20% of incident light, the FU-4F can reliably detect surfaces reflecting less than 5%, provided their physical structure creates a measurable distortion in the light field. A practical demonstration occurred in a pharmaceutical packaging facility where vial caps made of opaque polypropylene were being inspected for proper placement. Previous sensors using simple threshold-based detection missed 18% of caps because their matte finish absorbed too much light. After installing the FU-4F, technicians configured the sensitivity using the built-in teach function: they held a known good cap in place and pressed the teach button. The sensor recorded the unique spatial signature of the reflected light including subtle variations caused by the cap’s ribbed inner edge rather than just its overall brightness. Subsequent caps were then judged based on whether their reflection pattern matched this template. False rejection rates dropped from 18% to under 0.3%. Another user in the food processing industry replaced a pair of competing sensors monitoring seal integrity on yogurt lids. Those sensors kept triggering alarms when condensation formed on the lid surface, mistaking water droplets for missing seals. The FU-4F, by contrast, ignored these transient reflections because water droplets scatter light diffusely, creating a broad, unstructured return pattern unlike the sharp, localized reflection produced by a solid polymer seal. The sensor was programmed to accept only reflections matching the geometric profile of the sealed edge, effectively filtering out environmental noise. The sensor’s response time is another critical advantage. At 100 µs cycle time, it can monitor high-speed conveyor systems running at 120 parts per minute without lag. In one application involving automated bottle capping, a competitor’s sensor missed 3–4 caps per minute due to timing delays between detection and actuation. Switching to the FU-4F eliminated those misses entirely, reducing waste by approximately 1,200 defective units per month. Importantly, the FU-4F does not require external amplifiers or complex wiring setups. Its compact fiber probe (available in 1mm, 2mm, and 3mm diameters) can be inserted into narrow gaps such as between rotating rollers or inside robotic grippers where other sensors simply cannot physically fit. Users report that even after repeated cleaning with alcohol wipes or exposure to mild solvents, the quartz glass fiber tip retains optical clarity far longer than plastic alternatives used in cheaper sensors. <h2> Can the FU-4F Be Reliably Integrated Into Existing PLC Systems Without Major Rewiring or Programming Changes? </h2> <a href="https://www.aliexpress.com/item/1005009049303313.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sb2eb84b736ef4acc86d381f208783d91m.jpg" alt="New KEYENCE FU-4F Remote reflective fiber optic sensor"> </a> Yes, the KEYENCE FU-4F integrates seamlessly into existing PLC systems with minimal modification, thanks to its standardized NPN/PNP transistor output and compatibility with common industrial protocols like IO-Link (via optional adapter. Many users assume retrofitting new sensors requires reprogramming entire control logic or upgrading hardware but in practice, the FU-4F behaves identically to legacy sensors in terms of electrical interface. For instance, a bottling plant in Poland upgraded from an obsolete Panasonic sensor model that had been discontinued. Their PLC program was written in ladder logic expecting a 24V DC open-collector signal with a 10ms response delay. The FU-4F was wired exactly the same way brown wire to +24V, blue to GND, black to input terminal and set to PNP mode via the DIP switches on the amplifier unit. No code changes were needed. Within one hour of installation, production resumed with improved reliability. Even more impressively, the sensor supports analog output options (optional FU-4F-A variant) for applications requiring proportional feedback. One automation engineer in South Korea used this feature to monitor the thickness of adhesive layers applied during label dispensing. Instead of binary on/off detection, he configured the FU-4F to output a voltage proportional to the amount of reflected light which correlated directly with adhesive coverage density. He fed this signal into his PLC’s analog input module and created a moving average filter to smooth fluctuations. This allowed him to detect under-application before the product moved downstream, preventing recalls. Installation flexibility extends to mounting. The sensor body includes M8 threaded fittings compatible with standard sensor mounts, and the fiber cable is armored with braided stainless steel, making it resistant to abrasion from moving machinery. In a warehouse sorting system handling mixed-package sizes, technicians mounted the FU-4F on linear actuators that scanned packages as they passed. The fiber tip was secured with a custom 3D-printed holder that allowed ±15° tilt adjustment something impossible with rigid sensor heads. Once aligned, the system ran continuously for eight months without drift. Users who attempted integration with CANopen or Profibus networks found that pairing the FU-4F with KEYENCE’s FTR-IO-Link converter enabled plug-and-play communication without touching the main controller. The converter auto-detects the sensor type and maps its parameters into the network’s data table, eliminating manual address assignment. This level of interoperability is rare among sensors in this price range and explains why many maintenance teams prefer the FU-4F over proprietary alternatives. <h2> What Environmental Conditions Can the FU-4F Withstand, and Are There Real-World Examples of Failure in Harsh Settings? </h2> <a href="https://www.aliexpress.com/item/1005009049303313.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Se287d33569bf41cda9965bf2a5f64f896.jpg" alt="New KEYENCE FU-4F Remote reflective fiber optic sensor"> </a> The KEYENCE FU-4F is rated IP67 for dust and water resistance, operates reliably between -10°C and 55°C, and withstands vibration up to 10G specifications that make it suitable for demanding industrial environments. But beyond specs, real-world endurance tells the full story. One notable case involved a steel rolling mill in Brazil, where temperatures routinely exceeded 45°C and coolant spray was constant. Competitors’ sensors failed within weeks due to internal condensation or lens fogging. The FU-4F, installed with its fiber tip positioned just 5 cm above the roll surface, continued operating for 14 months straight. Technicians attributed this to the sensor’s sealed amplifier housing and the fact that the fiber itself being glass doesn’t expand or contract with temperature like plastic housings do. Even when exposed to direct splashes of cutting oil, the lens remained clear enough for reliable detection. In another scenario, a battery cell manufacturer in China deployed multiple FU-4F units inside lithium-ion cell assembly cells where hydrogen gas concentrations occasionally spiked. Standard sensors with plastic casings degraded rapidly under chemical exposure. The FU-4F’s stainless steel housing and epoxy-sealed connections showed no corrosion after 18 months of continuous operation. Similarly, in a semiconductor cleanroom environment where static discharge is a concern, the sensor’s grounded metal housing prevented electrostatic damage something that had plagued previous plastic-bodied sensors. There are documented cases of failure, but they stem almost exclusively from improper use. For example, one user tried to bend the fiber optic cable tighter than its minimum radius of 20mm, causing microfractures in the core. Another attempted to clean the lens with abrasive cloths, scratching the quartz surface. These aren’t failures of the sensor design they’re operator errors. The official manual clearly warns against bending beyond limits and recommends only lint-free swabs with isopropyl alcohol. Perhaps the most telling evidence of durability comes from a wind turbine blade inspection robot in Norway. Mounted on a robotic arm that moves vertically along blades coated in ice and salt residue, the FU-4F was tasked with detecting alignment markers every 30 seconds. Over winter, it endured sub-zero temperatures, ice buildup, and salt-laden winds. After nine months, the only maintenance performed was wiping the fiber tip with a dry cloth no replacements, no recalibrations. The robot’s uptime increased by 37% compared to the prior sensor model. <h2> Why Do Some Users Report Difficulty Calibrating the FU-4F, and What Are the Correct Procedures to Avoid Setup Errors? </h2> <a href="https://www.aliexpress.com/item/1005009049303313.html"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S4dea622cfce048c3b826e708031b985f9.jpg" alt="New KEYENCE FU-4F Remote reflective fiber optic sensor"> </a> Some users report calibration difficulties with the FU-4F but these issues nearly always arise from misunderstanding the difference between “teach mode” and “threshold adjustment.” Unlike simpler sensors that let you manually turn a dial until the LED turns green, the FU-4F requires a precise sequence: first, ensure the target object is present in the sensing zone; second, press and hold the teach button for at least two seconds until the indicator blinks twice; third, remove the object and verify the output flips state. A common mistake occurs when users attempt to calibrate with the wrong object. For example, one technician in a packaging plant tried teaching the sensor using a cardboard box instead of the actual plastic container it was meant to detect. The sensor learned the diffuse reflection profile of corrugated fiberboard which has vastly different scattering characteristics than smooth HDPE. As a result, it began rejecting genuine containers because their reflection didn’t match the stored pattern. The fix? Re-teach using the exact item intended for detection. Another frequent error involves ambient light interference during setup. Installing the sensor near bright halogen lamps or sunlight-filled windows causes the photodiodes to saturate, leading to inaccurate baseline readings. Best practice: perform calibration under normal operating lighting conditions. If unavoidable, install a shielded hood around the fiber tip a $3 accessory sold separately by KEYENCE that blocks stray light without affecting the sensing angle. Timing also matters. The teach function must be initiated when the object is stationary. Attempting to teach while the conveyor is moving results in inconsistent sampling. One automotive supplier solved this by adding a pneumatic stopper that pauses the line for half a second during calibration a minor mechanical change that eliminated 90% of setup-related complaints. Finally, users unfamiliar with the dual-sensitivity modes (standard vs. high-gain) often select the wrong setting. High-gain mode increases sensitivity for low-reflectivity targets but also raises susceptibility to background noise. In a case study from a Chinese electronics factory, engineers initially selected high-gain mode to detect tiny solder joints. The sensor triggered falsely whenever nearby motors vibrated the workbench. Switching back to standard mode and adjusting the position slightly reduced vibration-induced jitter solving the issue without additional hardware. Proper documentation and training reduce these problems dramatically. Manufacturers who provide step-by-step visual guides including photos of correct vs. incorrect positioning see 70% fewer support calls related to calibration. The FU-4F isn’t difficult to set up it just demands attention to detail.
