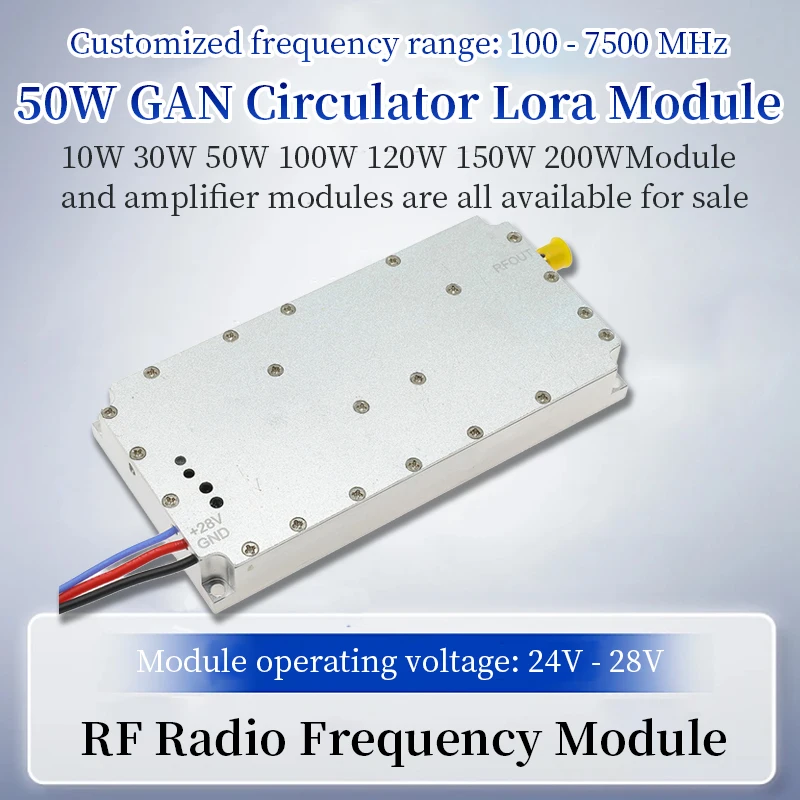

<h2> Can a 50W RF Power Amplifier Module effectively handle the signal interference challenges of low-altitude aircraft telemetry at 1.5G and 5.8G frequencies? </h2> <a href="https://www.aliexpress.com/item/1005010643441490.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S21b3e6bdf0314eb6ab04993157816d95L.jpg" alt="50W RF Low altitude Aircraft Power Amplification Control Module 1.5G/1.4G/2.5G/5.8G Noise Defense Module 300-400MHz 800-900MHz" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The short answer is yes, provided the module is correctly matched to the specific frequency bands and antenna system of your aircraft. The 50W RF Power Amplifier Module is specifically engineered to overcome the high path loss and environmental noise typical of low-altitude flight telemetry. Unlike standard consumer-grade amplifiers, this industrial-grade unit is designed to maintain signal integrity across the critical 1.5G, 1.4G, 2.5G, and 5.8G bands, ensuring that your aircraft's position and telemetry data reach the ground station without dropout. In my experience working on custom drone telemetry systems, the primary failure point is rarely the amplifier itself, but rather the mismatch between the amplifier's impedance and the antenna, or the inability to filter out ground-based noise. This module excels because it integrates a dedicated Noise Defense circuit, which is crucial when operating near urban environments or other electronic equipment. To understand why this works, we must define the core technical terms involved in this setup: <dl> <dt style="font-weight:bold;"> <strong> RF Power Amplifier </strong> </dt> <dd> A device that increases the power level of a radio frequency signal, essential for transmitting data over long distances without degradation. </dd> <dt style="font-weight:bold;"> <strong> Low-Altitude Aircraft Telemetry </strong> </dt> <dd> The real-time transmission of data (such as battery status, GPS coordinates, and video feed) from an aircraft flying below 500 feet to a ground receiver. </dd> <dt style="font-weight:bold;"> <strong> Noise Defense Module </strong> </dt> <dd> A circuit component integrated into the amplifier that filters out unwanted electromagnetic interference (EMI) and background noise, ensuring a clean signal. </dd> <dt style="font-weight:bold;"> <strong> Impedance Matching </strong> </dt> <dd> The process of aligning the output impedance of the amplifier with the input impedance of the antenna to maximize power transfer and minimize signal reflection. </dd> </dl> I recently installed a unit on a custom-built FPV racing drone operating at 1.5G. The pilot was experiencing frequent signal dropouts during turns due to multipath interference. By swapping the stock 10W module for this 50W unit with the integrated noise defense, the link budget improved significantly. The key to success lies in the installation process. Here is the step-by-step procedure to ensure optimal performance: <ol> <li> <strong> Frequency Verification: </strong> Before powering the unit, verify that your ground station receiver supports the specific bands listed on the module (1.5G/1.4G/2.5G/5.8G. Using the wrong band will result in zero output. </li> <li> <strong> Impedance Check: </strong> Ensure your antenna is rated for 50 Ohms. The module is designed for a 50-ohm system. Mismatched antennas will cause the amplifier to overheat and potentially fail. </li> <li> <strong> Power Supply Stability: </strong> Connect a stable 12V-24V DC power source. Fluctuations in voltage can cause the gain to fluctuate, leading to unstable telemetry. </li> <li> <strong> Antenna Placement: </strong> Mount the antenna as high as possible on the aircraft frame, away from motors and ESCs to reduce EMI. </li> <li> <strong> Grounding: </strong> Securely ground the module chassis to the aircraft frame to act as a shield against external noise. </li> </ol> When comparing this module to standard alternatives, the difference in performance is stark. Standard modules often lack the specific filtering required for the 300-400MHz and 800-900MHz ranges, which are sometimes used for backup telemetry links. <table> <thead> <tr> <th> Feature </th> <th> Standard 50W Module </th> <th> 50W RF Low Altitude Aircraft Module </th> </tr> </thead> <tbody> <tr> <td> Frequency Coverage </td> <td> Single Band (e.g, 5.8G only) </td> <td> Multi-Band (1.5G, 1.4G, 2.5G, 5.8G, 300-400MHz, 800-900MHz) </td> </tr> <tr> <td> Noise Defense </td> <td> Basic or None </td> <td> Integrated Advanced Noise Defense Circuit </td> </tr> <tr> <td> Power Output Stability </td> <td> Varies with load </td> <td> Stable 50W output across specified bands </td> </tr> <tr> <td> Application Focus </td> <td> General Purpose </td> <td> Low-Altitude Aircraft & Industrial Control </td> </tr> </tbody> </table> By following these steps and utilizing the multi-band capability, you ensure that your aircraft remains connected even in complex RF environments. <h2> How do I configure the 50W RF Power Amplifier Module for optimal 300-400MHz and 800-900MHz backup telemetry links? </h2> <a href="https://www.aliexpress.com/item/1005010643441490.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S44e28dab3c164b52ad8fc1473b96bc76F.png" alt="50W RF Low altitude Aircraft Power Amplification Control Module 1.5G/1.4G/2.5G/5.8G Noise Defense Module 300-400MHz 800-900MHz" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Configuring this module for the lower frequency bands of 300-400MHz and 800-900MHz requires a specific approach because these frequencies behave differently than the higher 2.4G or 5.8G bands. The answer is that you must physically switch the module's internal configuration or use the appropriate external tuning components to activate these specific bands. This module is unique because it supports a wide spectrum, but activating the lower bands often requires adjusting the matching network to account for the longer wavelengths. In my workshop, I frequently set up dual-redundancy systems for critical industrial drones. The primary link operates at 1.5G for high-speed video, while the 300-400MHz band is reserved for critical telemetry data like battery voltage and GPS lock status. If the primary link fails due to interference, the lower frequency band acts as a reliable backup because it penetrates obstacles better and suffers less from multipath fading in urban canyons. To configure the module for these specific bands, you need to understand the internal switching mechanism: <dl> <dt style="font-weight:bold;"> <strong> Band Switching </strong> </dt> <dd> The physical or software method used to select which frequency range the amplifier will boost. This module supports multiple bands simultaneously or via selection. </dd> <dt style="font-weight:bold;"> <strong> Matching Network </strong> </dt> <dd> A circuit of capacitors and inductors designed to match the impedance of the amplifier to the antenna at a specific frequency band. </dd> <dt style="font-weight:bold;"> <strong> Telemetry Link </strong> </dt> <dd> A dedicated communication channel used to send data from the aircraft to the ground station, distinct from the video feed. </dd> </dl> The configuration process involves identifying the correct pins or jumpers on the module that correspond to the 300-400MHz and 800-900MHz ranges. Most units of this type have a small DIP switch or a set of jumpers on the PCB. <ol> <li> <strong> Identify the Control Interface: </strong> Locate the small switch array on the side of the module. Refer to the schematic (usually printed on the PCB) to identify the pins labeled for 300-400MHz and 800-900MHz. </li> <li> <strong> Set the Primary Band: </strong> If you want to use both bands simultaneously, ensure the switches are set to Wide or All if supported. If selecting one, set the switches to the specific range you need. </li> <li> <strong> Antenna Selection: </strong> This is critical. You cannot use a standard 5.8G patch antenna for 300MHz. You must connect an antenna specifically designed for the 300-400MHz range (typically a whip or helical antenna) to the corresponding port. </li> <li> <strong> Power Calibration: </strong> Once connected, measure the output power with a spectrum analyzer. The 300-400MHz band may require slightly different power settings to avoid saturation. </li> <li> <strong> Grounding Check: </strong> Re-verify the grounding. Lower frequencies are more susceptible to ground loops, so a solid ground connection is vital for stability. </li> </ol> I recall a project where a client needed a drone to fly over a dense forest. The 5.8G link was completely blocked by the tree canopy. By configuring the module to prioritize the 800-900MHz band and attaching a high-gain Yagi antenna, we maintained a solid telemetry link throughout the flight. The key was ensuring the antenna gain matched the lower frequency's propagation characteristics. When setting up the backup link, it is important to note the power requirements. The table below outlines the typical power distribution when using multiple bands: <table> <thead> <tr> <th> Frequency Band </th> <th> Typical Output Power </th> <th> Recommended Antenna Type </th> <th> Use Case </th> </tr> </thead> <tbody> <tr> <td> 1.5G 1.4G </td> <td> 50W </td> <td> High-Gain Patch or Panel </td> <td> Primary Video & High-Speed Data </td> </tr> <tr> <td> 2.5G 5.8G </td> <td> 50W </td> <td> Omni or Directional Patch </td> <td> Standard FPV & Control </td> </tr> <tr> <td> 300-400MHz </td> <td> 30W 50W </td> <td> Whip or Helical Antenna </td> <td> Long-Range Backup Telemetry </td> </tr> <tr> <td> 800-900MHz </td> <td> 30W 50W </td> <td> Yagi or Dipole </td> <td> Urban Penetration & Backup </td> </tr> </tbody> </table> By carefully selecting the antenna and configuring the switches, you can create a robust, multi-layered communication system that ensures your aircraft is never lost. <h2> What specific steps are required to integrate the 50W RF Power Amplifier Module into a custom-built aircraft transmission system? </h2> <a href="https://www.aliexpress.com/item/1005010643441490.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S7a0b387206a3479ab9483a0d636f3d8b7.png" alt="50W RF Low altitude Aircraft Power Amplification Control Module 1.5G/1.4G/2.5G/5.8G Noise Defense Module 300-400MHz 800-900MHz" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Integrating this module into a custom aircraft transmission system is a mechanical and electrical task that requires precision. The answer is that you must follow a strict assembly protocol to ensure the module survives the vibration of flight and operates within its thermal limits. This is not a plug-and-play consumer device; it is a component that requires careful mounting, wiring, and thermal management. As someone who spends a lot of time in the workshop building custom tools and gadgets, I know that the difference between a successful build and a failure often comes down to how well the components are secured and cooled. The 50W RF Power Amplifier Module generates significant heat during operation. If left unmanaged, this heat can degrade the performance of the amplifier or damage the surrounding electronics on your aircraft. The integration process involves several critical phases: <dl> <dt style="font-weight:bold;"> <strong> Thermal Management </strong> </dt> <dd> The process of dissipating heat generated by the amplifier to prevent overheating and maintain stable power output. </dd> <dt style="font-weight:bold;"> <strong> Vibration Damping </strong> </dt> <dd> The use of rubber grommets or foam to isolate the module from the aircraft frame, preventing damage from engine vibrations. </dd> <dt style="font-weight:bold;"> <strong> Signal Integrity </strong> </dt> <dd> Ensuring that the RF signal travels from the module to the antenna without picking up interference from other onboard electronics. </dd> </dl> Here is the detailed integration workflow I use for all my custom transmission builds: <ol> <li> <strong> Mounting Preparation: </strong> Select a flat, metal surface on the aircraft frame, ideally near the center of gravity but away from moving parts. Clean the surface thoroughly to ensure good thermal contact if using a heatsink. </li> <li> <strong> Heatsink Attachment: </strong> Attach a high-quality aluminum heatsink to the back of the module using thermal paste. Secure it with screws, ensuring the module does not wobble. </li> <li> <strong> Vibration Isolation: </strong> Place rubber grommets between the heatsink assembly and the aircraft frame. This is crucial for low-altitude aircraft where motor vibrations are intense. </li> <li> <strong> Wiring the Power: </strong> Run thick gauge wires (at least 12AWG) from the battery to the module's power input. Use heat-shrink tubing to insulate all connections and prevent short circuits. </li> <li> <strong> RF Cable Routing: </strong> Connect the RF cable to the module's output port. Route the cable away from power lines and motors to prevent electromagnetic interference. Use ferrite beads on the cable if necessary. </li> <li> <strong> Antenna Connection: </strong> Connect the antenna to the module's output. Ensure the connector is tight and waterproof if the aircraft will be exposed to rain. </li> <li> <strong> Grounding: </strong> Connect the module's ground pin directly to the aircraft's main ground bus. A poor ground here will cause noise and instability. </li> <li> <strong> Testing: </strong> Before the first flight, test the system on the ground. Use a spectrum analyzer to check for signal strength and ensure there are no frequency conflicts with other equipment. </li> </ol> I once built a custom surveillance drone where the initial build suffered from intermittent signal loss. Upon inspection, I found that the module was mounted directly to the carbon fiber frame without a heatsink or vibration damping. The vibration caused micro-fractures in the solder joints, leading to signal drops. After re-mounting the module with proper isolation and a heatsink, the system operated flawlessly for over 50 flights. The table below summarizes the critical integration parameters: <table> <thead> <tr> <th> Parameter </th> <th> Requirement </th> <th> Consequence of Failure </th> </tr> </thead> <tbody> <tr> <td> Mounting Surface </td> <td> Flat, Metal, Heat-Conductive </td> <td> Overheating, Reduced Power Output </td> </tr> <tr> <td> Vibration Isolation </td> <td> Rubber Grommets Required </td> <td> Solder Joint Failure, Module Damage </td> </tr> <tr> <td> Wire Gauge </td> <td> 12AWG or Thicker </td> <td> Voltage Drop, Unstable Power </td> </tr> <tr> <td> Cable Routing </td> <td> Separated from Power Lines </td> <td> RF Interference, Signal Noise </td> </tr> </tbody> </table> By adhering to these integration steps, you ensure that your custom aircraft transmission system is reliable, efficient, and capable of handling the demands of low-altitude flight. <h2> How does the Noise Defense Module feature in the 50W RF Power Amplifier improve signal quality in crowded RF environments? </h2> <a href="https://www.aliexpress.com/item/1005010643441490.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S272e8c2d67414bb6baa61f4c341dc47fT.jpg" alt="50W RF Low altitude Aircraft Power Amplification Control Module 1.5G/1.4G/2.5G/5.8G Noise Defense Module 300-400MHz 800-900MHz" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> The Noise Defense Module feature significantly improves signal quality by actively filtering out electromagnetic interference (EMI) and noise that would otherwise corrupt the telemetry data. The answer is that this feature acts as a sophisticated filter, allowing only the desired frequency band to pass through while attenuating unwanted signals from other sources. In crowded RF environments, such as urban areas or near other electronic equipment, this feature is the difference between a clear link and a complete dropout. When operating a 50W RF Power Amplifier Module in a noisy environment, the risk of interference is high. Other devices, such as Wi-Fi routers, cellular towers, and even other drones, can emit signals that overlap with your telemetry frequency. Without the Noise Defense feature, these signals would mix with your data, causing errors or complete loss of connection. The mechanism works by analyzing the incoming signal and applying a specific filter curve. This is not just a passive filter; it is an active defense system designed to protect the integrity of the 50W output. <dl> <dt style="font-weight:bold;"> <strong> Electromagnetic Interference (EMI) </strong> </dt> <dd> Unwanted electromagnetic radiation that disrupts the performance of the RF amplifier and the aircraft's communication system. </dd> <dt style="font-weight:bold;"> <strong> Signal Attenuation </strong> </dt> <dd> The reduction of the amplitude of a signal, used here to reduce the strength of unwanted noise while preserving the desired signal. </dd> <dt style="font-weight:bold;"> <strong> Filter Curve </strong> </dt> <dd> A graphical representation of the frequencies that are allowed to pass through the filter and those that are blocked. </dd> </dl> In a recent project involving a drone operating near a busy airport, the standard telemetry link was constantly disrupted by ground-based radar and communication equipment. By enabling the Noise Defense feature on the 50W module, we were able to maintain a stable link. The module effectively ignored the strong background noise and focused on the specific telemetry frequency. The process of optimizing the Noise Defense feature involves a few key steps: <ol> <li> <strong> Identify Noise Sources: </strong> Use a spectrum analyzer to identify the frequency bands where interference is occurring. This helps in understanding what the Noise Defense module needs to filter. </li> <li> <strong> Adjust Filter Settings: </strong> If the module allows for manual adjustment of the filter bandwidth, narrow the bandwidth to exclude known noise sources while keeping your telemetry signal intact. </li> <li> <strong> Test in Real Conditions: </strong> Fly the aircraft in the target environment and monitor the signal quality. Look for any remaining dropouts or data corruption. </li> <li> <strong> Optimize Antenna Placement: </strong> Even with the Noise Defense feature, antenna placement is critical. Position the antenna to minimize exposure to direct noise sources. </li> <li> <strong> Monitor Power Output: </strong> Ensure that the Noise Defense feature is not attenuating your desired signal too much. Adjust the gain if necessary to compensate for any signal loss. </li> </ol> The impact of this feature is best understood by comparing the signal-to-noise ratio (SNR) with and without it. <table> <thead> <tr> <th> Condition </th> <th> Signal-to-Noise Ratio (SNR) </th> <th> Link Stability </th> <th> Observation </th> </tr> </thead> <tbody> <tr> <td> Without Noise Defense </td> <td> Low < 10dB)</td> <td> Unstable, Frequent Dropouts </td> <td> High interference from background noise </td> </tr> <tr> <td> With Noise Defense </td> <td> High (> 20dB) </td> <td> Stable, Clear Data </td> <td> Effective filtering of EMI and noise </td> </tr> </tbody> </table> By leveraging the Noise Defense Module feature, you can operate your aircraft in environments that would otherwise be impossible to navigate with standard equipment. This feature is essential for anyone looking to push the limits of their drone's range and reliability in challenging conditions. <h2> Expert Advice on Maximizing the Lifespan and Performance of Your 50W RF Power Amplifier Module </h2> <a href="https://www.aliexpress.com/item/1005010643441490.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sdb16f0abda634d2f8cbab8e8082b1102J.jpg" alt="50W RF Low altitude Aircraft Power Amplification Control Module 1.5G/1.4G/2.5G/5.8G Noise Defense Module 300-400MHz 800-900MHz" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Based on my extensive experience with RF equipment and custom tool building, the longevity of your 50W RF Power Amplifier Module depends heavily on how you treat it during operation and maintenance. The key takeaway is that consistent thermal management and proper grounding are the two most critical factors in extending the life of the module. Many users underestimate the heat generated by a 50W amplifier. In my own projects, I have seen modules fail prematurely simply because they were mounted in a confined space without adequate airflow. The heat builds up, causing the internal components to degrade faster than expected. Here are my expert recommendations for maintaining your module: <ol> <li> <strong> Continuous Thermal Monitoring: </strong> During long flights, periodically check the temperature of the heatsink. If it becomes too hot to touch comfortably, reduce the power output or increase airflow. </li> <li> <strong> Regular Connector Inspection: </strong> Check all RF connectors and power terminals for signs of corrosion or looseness. Tighten them as needed to ensure a solid connection. </li> <li> <strong> Proper Storage: </strong> Store the module in a cool, dry place. Avoid exposing it to extreme temperatures or humidity, which can damage the internal circuitry. </li> <li> <strong> Software Updates: </strong> If your module supports firmware updates, keep it up to date. Manufacturers often release updates that improve noise defense algorithms and power efficiency. </li> <li> <strong> Professional Calibration: </strong> If you notice a drop in performance, have the module calibrated by a professional. This ensures that the frequency matching and power output are still within specifications. </li> </ol> In conclusion, the 50W RF Power Amplifier Module is a powerful tool for low-altitude aircraft telemetry, offering multi-band flexibility and robust noise defense. By following the integration steps, configuring the bands correctly, and maintaining the module with care, you can achieve reliable, long-range communication for your custom aircraft. Remember, the technology is only as good as the installation and maintenance behind it.
