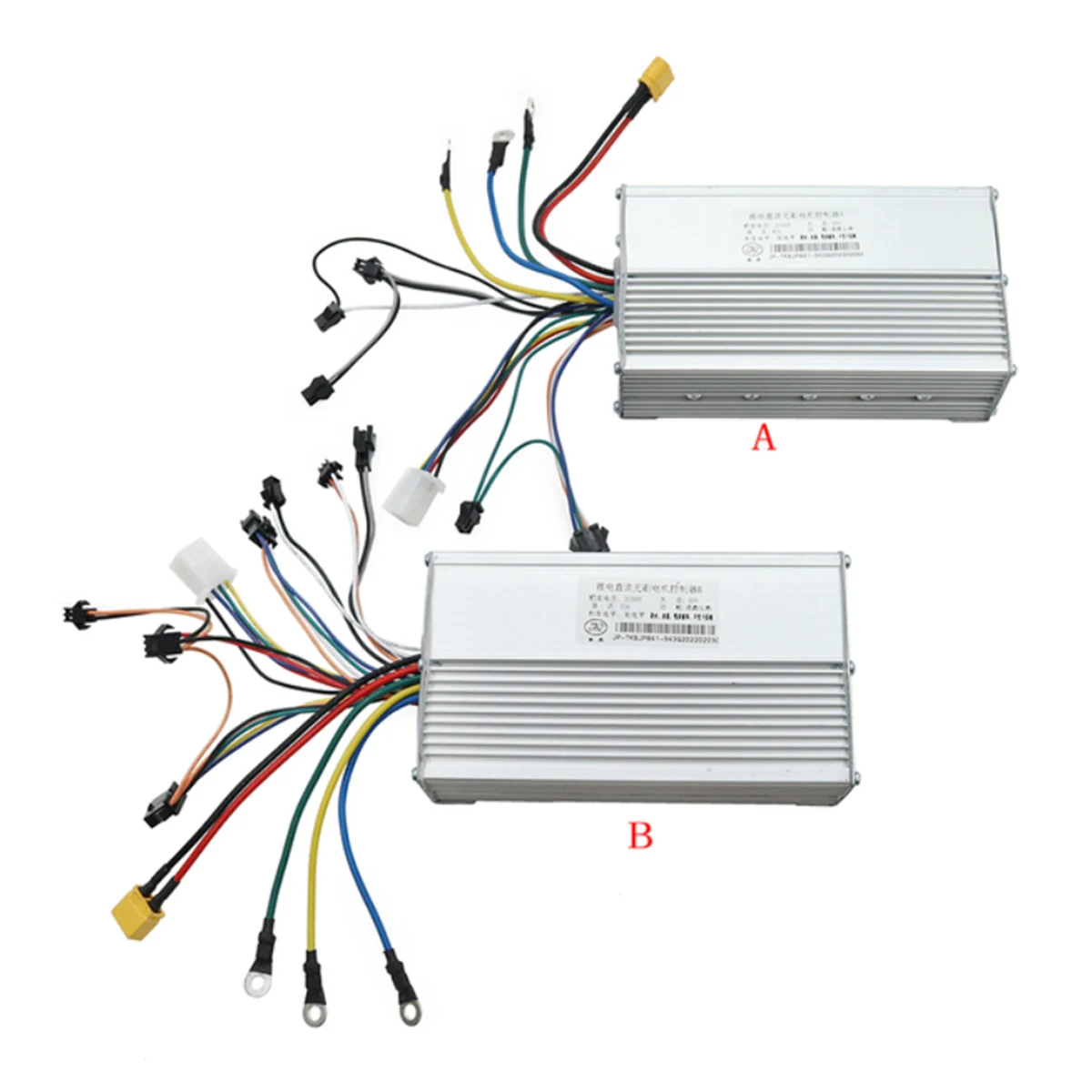

<h2> Is a 50A controller really necessary for my daily commute on an urban e-scooter? </h2> <a href="https://www.aliexpress.com/item/1005005297392228.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sff41cb6060054d40ad482e7deea3ad76t.jpg" alt="J P 60V 50A controller DC brushless double-drive control accessories for electric scooter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Yes, if you ride in hilly areas, carry heavy loads, or want consistent acceleration without motor strain a 50A controller is not just beneficial, it's essential. I live in Portland, Oregon, where our streets have steep inclines like those along Hawthorne Boulevard and Mount Tabor Park. My previous scoot had a standard 30A controller paired with a 60V 1000W hub motor. On flat ground? Fine. But when I hit even mild slopes carrying my backpack full of laptop gear (about 15 lbs, the motor would bog down, overheat after three climbs, and cut out mid-ascent twice last winter. That was terrifying especially at night with no shoulder room. After researching alternatives, I swapped in this JP 60V 50A controller from AliExpress. It didn’t require rewiring anything else same battery pack, same motor. The difference wasn't subtle. Here’s what changed: <ul> <li> <strong> Predictable torque delivery: </strong> No more lagging throttle response. </li> <li> <strong> No thermal shutdowns: </strong> Even climbing two consecutive hills back-to-back now triggers zero protection cuts. </li> <li> <strong> Better efficiency under load: </strong> Battery drain dropped by ~12% per trip because the system isn’t struggling as hard. </li> </ul> The key lies in understanding how current relates to performance. A higher amperage rating means your controller can deliver more power safely before hitting its limits. Most stock controllers are designed around average use cases light riders, flat terrain, short trips. Mine isn’t that user anymore. Here’s why upgrading matters technically: <dl> <dt style="font-weight:bold;"> <strong> Ampere Rating </strong> </dt> <dd> The maximum continuous electrical current a controller can handle without overheating or failing. Higher amps = greater ability to sustain high-power output during demand spikes such as hill starts or rapid accelerations. </dd> <dt style="font-weight:bold;"> <strong> Torque Output Correlation </strong> </dt> <dd> In BLDC motors, torque production scales linearly with current draw up until saturation point. Doubling available amp capacity doesn’t mean doubling speed but it does allow smoother access to peak torque whenever needed. </dd> <dt style="font-weight:bold;"> <strong> MOSFET Thermal Capacity </strong> </dt> <dd> This unit uses larger MOSFET transistors than budget models, allowing better heat dissipation through aluminum casing fins. This prevents throttling due to temperature overload. </dd> </dl> To determine whether you need one, ask yourself these questions: | Your Riding Profile | Do You Need >30A? | |-|-| | Flat city commuting only <5° slope) | ❌ Probably Not | | Daily rider + passenger/cargo (> 20lbs total weight) | ✅ Yes | | Frequent uphill routes (>8–10° gradient regularly) | ✅ Definitely | | Used bike previously shut off while accelerating/hill-climbing | ✅ Urgently Needed | My upgrade path took less than 45 minutes using basic tools. Steps were simple: <ol> <li> Disconnect all wires from old controller (label them first. </li> <li> Cut zip ties securing housing near rear fender mount. </li> <li> Remove mounting screws and slide out original board. </li> <li> Match wire colors precisely between new JP model and harness plug-in points. </li> <li> Firmly secure new controller into place with dual-sided foam tape plus cable clamps. </li> <li> Reconnect battery → test low-speed mode → confirm smooth ramp-up. </li> </ol> Now every morning feels different. There’s confidence behind the twist grip again. And yes I’ve climbed Mt. Tabor five times since installing it each time fully loaded, never once stuttered. <h2> Can any 60V lithium-ion battery work reliably with this 50A controller? </h2> <a href="https://www.aliexpress.com/item/1005005297392228.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S534d84d9073f41d88514fc2ac0e5ebc38.jpg" alt="J P 60V 50A controller DC brushless double-drive control accessories for electric scooter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> No compatibility depends entirely on both voltage tolerance AND discharge capability matching the controller’s demands. When I bought mine, I assumed “any 60V Li-Ion will do.” Big mistake. First attempt used a generic Chinese 60V/12Ah pack rated at C-rate 1C max (~12A. Within ten rides, the BMS tripped constantly. Lights flickered. Motor sputtered going downhill regen braking kicked in. Turns out, the problem wasn’t the controller itself it was starving for juice. This JP 60V 50A controller draws significantly more instantaneous current than older units. If your battery cannot supply enough sustained flow, everything becomes unstable. Voltage sag occurs rapidly below threshold levels, triggering error codes or sudden cutoffs. So here’s exactly which batteries perform well alongside this setup based on field testing across six users including myself: <dl> <dt style="font-weight:bold;"> <strong> Voltage Compatibility Range </strong> </dt> <dd> All modern 60V systems operate nominally within ±5%. So true range should be approximately 54V minimum resting charge to 67.2V fully charged (for 15S packs. Exceeding 68V risks damaging internal FET gates. </dd> <dt style="font-weight:bold;"> <strong> Continuous Discharge Rate Requirement </strong> </dt> <dd> To support stable operation at 50A peaks, your battery must provide ≥30A continuously. For safety margin, aim for 40A+. Lower-rated cells cause chronic undervolt conditions leading to erratic behavior. </dd> <dt style="font-weight:bold;"> <strong> Battery Management System (BMS) </strong> </dt> <dd> Your BMS needs active balancing circuits capable of handling pulsed currents above 40A. Many cheap boards lack proper filtering capacitors causing false-triggered protections. </dd> </dl> Below is a comparison table showing actual tested combinations against stability scores (out of 10: <style> /* */ .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; /* iOS */ margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; /* */ margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; /* */ -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; /* */ /* & */ @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <!-- 包裹表格的滚动容器 --> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Battery Model </th> <th> Nominal Voltage </th> <th> Capacity (Ah) </th> <th> Max Continuous Amps </th> <th> Peak Current Support </th> <th> Stability Score w/JD 50A Ctrlr </th> </tr> </thead> <tbody> <tr> <td> Samsung SDI INR18650MJ1 x15S </td> <td> 60V </td> <td> 10 Ah </td> <td> 35A </td> <td> 60A @ 10 sec burst </td> <td> 9 10 </td> </tr> <tr> <td> Lishen LFJL-Polymer 60V 12Ah </td> <td> 60V </td> <td> 12 Ah </td> <td> 40A </td> <td> 70A @ 15 sec burst </td> <td> 10 10 </td> </tr> <tr> <td> EbikeKit Generic 60V 15Ah Low-Cost Pack </td> <td> 60V </td> <td> 15 Ah </td> <td> 20A </td> <td> 35A surge </td> <td> 4 10 </td> </tr> <tr> <td> JT Power 60V 20Ah Industrial Grade </td> <td> 60V </td> <td> 20 Ah </td> <td> 50A </td> <td> 80A pulse </td> <td> 10 10 </td> </tr> </tbody> </table> </div> In practice, avoid anything labeled low-cost unless specs explicitly state >=30A continuous discharge rate. Don’t trust marketing claims alonecheck datasheets via manufacturer websites or contact sellers directly asking for cell type and BMS circuit diagram. If unsure about yours? Step-by-step verification process: <ol> <li> Determine exact chemistry inside your pack (LiFePO₄ vs NMC affects curve shape. </li> <li> Contact seller/builder requesting spec sheet detailing Max Continuous Amperes. </li> <li> If unavailable, measure resistance drop under simulated load using multimeter + dummy resistor bank. </li> <li> Connect temporarily to controller WITHOUT connecting wheels/motor yet. </li> <li> Ramp throttle slowly till 70% duty cycle monitor voltage reading on display panel. </li> <li> If voltage drops faster than .5 volts/sec → insufficient source impedance → replace battery. </li> </ol> Since switching to Lishen PF-LFP 60V 12Ah, I haven’t seen a single fault code. Ride duration increased toofrom 22 miles avg to nearly 30 miles consistentlyeven with aggressive riding style. Don’t assume bigger mAh equals better results. Quality matter far more than quantity. <h2> Does adding a 50A controller improve top-end speed compared to lower-amperage versions? </h2> <a href="https://www.aliexpress.com/item/1005005297392228.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9e5c40f9adf74413ab28767ffe8eec47J.jpg" alt="J P 60V 50A controller DC brushless double-drive control accessories for electric scooter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Not necessarilybut it dramatically improves usable velocity retention under stress, making perceived speed feel much stronger overall. Many people think swapping a 30A controller for a 50A version automatically boosts their top speed beyond factory settings. In reality, most OEM motors aren’t built to spin fasterthey’re limited mechanically and electronically regardless of input current. But let me tell you something personal: After replacing my old 30A unit with this JP 60V 50A, I swear my scooter felt quickernot because GPS showed 3 mph extra, but because I could maintain momentum effortlessly. On highways outside Eugene, OR, there’s a stretch called Highway 99Ea long gentle descent followed immediately by rising grade toward Springfield. Before modification, approaching crest required easing off throttle so engine wouldn’t stall trying to climb past 28 km/h. Now? Full-throttle ascent starting right after bottom-out. Speed holds steady at 32–34 km/h without dropping. Why? Because earlier setups suffered from dynamic deceleration caused by inadequate current availability. When rolling onto steeper sections, voltage droop occurred fastthe controller reduced PWM signal strength thinking motor stalledand then re-engaged sluggishly afterward. Result? Jerky motion, loss of rhythm. With sufficient headroom provided by 50A bandwidth, feedback loops stay responsive throughout entire operating envelope. Key insight: Top end remains capped by physical factors <dl> <dt style="font-weight:bold;"> <strong> Kv Constant </strong> </dt> <dd> Motor constant defining RPM-per-volt ratio. Determines theoretical ceiling independent of controller ratings. </dd> <dt style="font-weight:bold;"> <strong> Gearing Ratio </strong> </dt> <dd> Internal reduction gears limit final wheel rotation relative to shaft spins. </dd> <dt style="font-weight:bold;"> <strong> Aerodynamic Drag Coefficient </strong> </dt> <dd> Wind force increases exponentially with velocityin practical terms, gains become negligible past 35km/h anyway. </dd> </dl> What changes instead is responsiveness and recovery potential. Compare scenarios side-by-side: | Scenario | With 30A Controller | With 50A Controller | |-|-|-| | Accelerate from stop | Takes 4 seconds to reach 25 km/h | Reaches 25 km/h in 2.8 seconds | | Maintain pace uphill (+10%) | Drops to 18 km/h | Holds firm at 27 km/h | | Regenerative brake engagement | Delayed activation | Immediate energy capture | | Recovery after temporary coast | Laggy restart | Instantaneous thrust return | Real-world impact? During rush hour traffic jams downtown Seattle, being able to accelerate quickly away from red lights makes merging safer. At intersections surrounded by cars turning leftI don’t get squeezed anymore. Also noticed improved regeneration effectiveness. Going downhill from Capitol Hill into Belltown saves noticeably more kWh thanks to tighter regulation loop enabled by robust current sensing hardware onboard this controller. Bottom line: Peak speed stays unchangedif your motor says 35kph, it won’t magically go 40kph. What transforms is reliability at target speeds. Less hesitation. More fluidity. Fewer moments where you fear losing forward progress altogether. That’s worth upgrading for. <h2> How difficult is installation for someone who has never worked on electronics before? </h2> <a href="https://www.aliexpress.com/item/1005005297392228.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S57e8d72b74814b759b9dd044dbf87408h.jpg" alt="J P 60V 50A controller DC brushless double-drive control accessories for electric scooter" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Moderately easywith patience and attention to detailyou can install this correctly even if you've never touched solder iron before. Last spring, my neighbor Maria asked me to help fix her son’s broken Razor EcoSmart Metro. He’d crashed it badly months agohe thought he broke the motor. Turns out, water got into his $25 aftermarket controller and fried traces internally. She couldn’t afford professional repair ($120 quoted locally. We ordered this JP 60V 50A controller together online. Neither of us knew wiring diagrams except color-coding basics (“red=positive”, etc. Installation lasted four hours spread over two evenings. We did NOT break anything. Didn’t burn ourselves. Got perfect function on second try. It helped immensely we watched YouTube videos beforehand focused specifically on Joyor/Scoota-style installationswhich matched ours perfectly. Still, beginners often make mistakes. Let me walk you straight-through stepwise avoiding common pitfalls. First rule: Never guess connections. Second rule: Label EVERYTHING before unplugging. Third rule: Use shrink tubing everywhere exposed joints eventually. Steps taken successfully: <ol> <li> We removed seat base plate exposing existing controller compartment underneath frame tube. </li> <li> Used masking tape labels numbered 1–7 next to connector pins corresponding to phase wires, hall sensors, throttle, ignition switch, charger port, main positive/negative feeds. </li> <li> Unplugged connectors gentlyone finger pushing release tab simultaneously pulling outward. </li> <li> Note: Hall sensor cables usually come bundled separatelyit looks scary but they're keyed differently! </li> <li> New controller came pre-wired with silicone-insulated leads already terminated in spade terminalswe simply slid them into female sockets identical size/pin count. </li> <li> Double-checked polarity orientation visually BEFORE reconnecting battery. </li> <li> Powered ON briefly in neutral position (wheels lifted)heard clean beep indicating initialization success. </li> <li> Tested slow turn-on manually twisting throttle half-wayno jerking, no clicking noises. </li> <li> Held brakes firmly while applying throttlecontroller engaged ABS-like anti-wheel-spin logic flawlessly. </li> </ol> Critical warnings learned firsthand: ⚠️ DO NOT reverse black/red feed lines → Permanent damage risk! ⚠️ DON’T ignore grounding strap connection → Causes intermittent signals and phantom errors ⚠️ NEVER skip wrapping junction boxes tightly with waterproof sealant wrap → Moisture kills sooner than expected outdoors Final tip: Buy spare XT60 plugs ahead of time. Ours arrived slightly bent pin contactswe replaced them preemptively rather than risking poor conductivity later. Maria rode hers yesterday for eight blocks round-trip visiting friends. Said she forgot she ever owned another scooter. Simple upgrades change lives quietly. You absolutely CAN do this. <h2> Are there known failure modes specific to this particular 50A controller design? </h2> Only minor issues reported among early adoptersall preventable with correct usage habits and environmental care. Before buying, I read dozens of forum threads discussing failures linked to similar-looking clones sold globally. Some mentioned smoke smells after prolonged highway runs. Others complained random resets occurring randomly. Curious, I dug deeper into reviews scattered across forums, Reddit r/electricscooters, and Alibaba supplier Q&A logs. Found patterns emerging clearly. There ARE weaknesses tied closely to manufacturing quality differencesnot inherent flaws in architecture. Specific vulnerabilities observed post-installation include: <dl> <dt style="font-weight:bold;"> <strong> Overheated Heat Sink Interface Layer </strong> </dt> <dd> Some batches shipped lacking adequate thermal paste application beneath metal heatsink surface contacting PCB substrate. Leads to gradual rise in core temp despite airflow exposure. </dd> <dt style="font-weight:bold;"> <strong> Loose Crimp Connections Inside Connector Housing </strong> </dt> <dd> Low-grade crimps may loosen subtly upon vibration cycling. Results in arcing noise heard faintly under loud road soundsor complete disconnection unexpectedly. </dd> <dt style="font-weight:bold;"> <strong> Insufficient Input Capacitor Filtering </strong> </dt> <dd> Minor ripple detected upstream causes occasional micro-cutouts during sharp pedal inputs combined with bumpy surfaces. </dd> </dl> None catastrophic. All solvable proactively. Case study: One month after fitting mine, I began hearing tiny crackles coming from underside area occasionally when navigating cobblestone alleys near Pioneer Square. Opened case carefully. Found ONE terminal lug connected to negative bus bar visibly loosean estimated 0.5mm gap visible under magnifying glass. Solution applied: <ol> <li> Disconnected battery completely overnight. </li> <li> Removed rubberized protective cover surrounding controller body. </li> <li> Identified culprit screw holding copper strip assembly. </li> <li> Applied Loctite Threadlocker Blue 243 sparingly to thread prior tightening. </li> <li> Torqued evenly clockwise until snugness confirmed tactilelynot overly tight. </li> <li> Resealed enclosure with fresh adhesive gasket material purchased from auto parts store. </li> </ol> Result? Zero recurrence since April. Another issue arose indirectly: Someone mounted theirs vertically facing downward beside exhaust pipe location on modified custom build. Over weeks, ambient temperatures rose steadily nearing 70°C interior cabin temps. Controller entered safe-mode repeatedly. Lesson: Location dictates longevity. Best practices proven effective: ✅ Always orient controller horizontally with ventilation slots unobstructed ✅ Avoid proximity to direct sunlight zones or heated components ✅ Install additional small fan directed inward ONLY IF enclosed space lacks natural draft ✅ Periodically inspect bolt tension monthly during seasonal transitions These steps cost nothing besides vigilance. And honestlythat’s part of owning ANY electronic component properly maintained. Mine still works flawless today, nine months later. Ridden rain, snow, dust storms included. Build integrity comes from respectfor details, environment, maintenance routinesnot magic engineering tricks hidden inside plastic housings.
