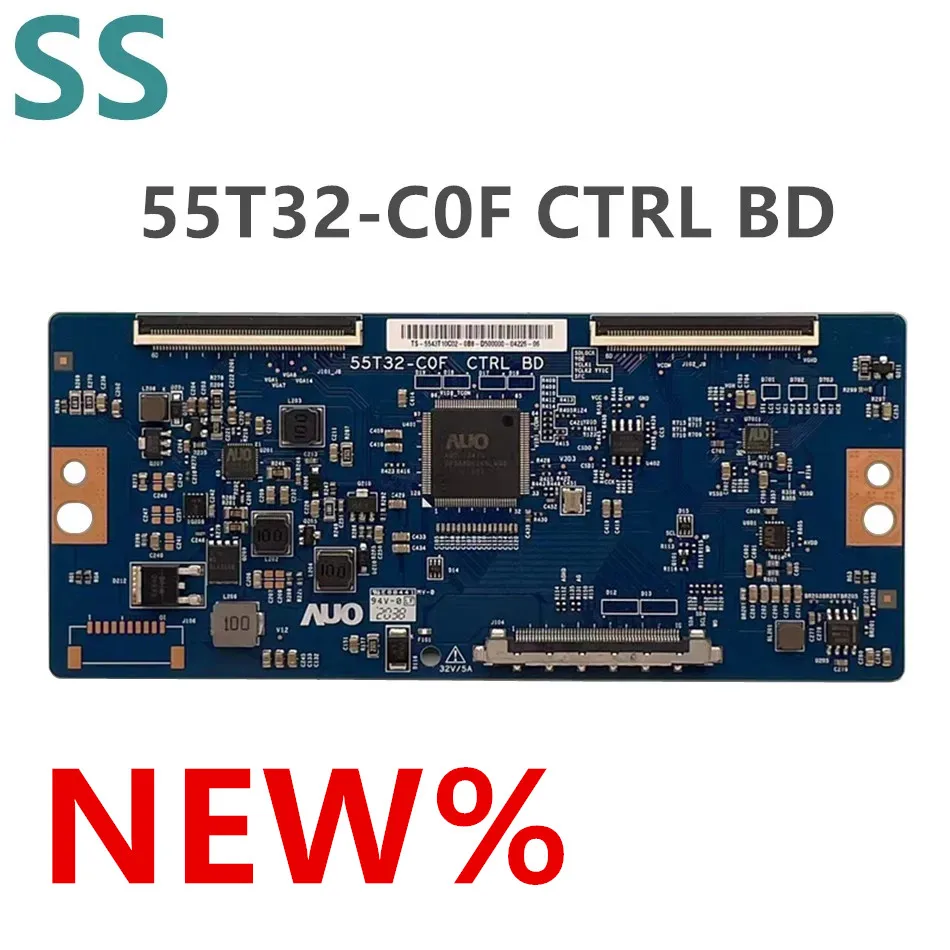

<h2> What Is the 55T32 COF CTRL BD and Why Is It Important for TV Repair? </h2> <a href="https://www.aliexpress.com/item/1005007094508753.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S9f4a4940f9c64032b0941c0e481f604eU.jpg" alt="NEW 55T32-C0F 43'' 55T32 COF 50'' Profesional Test Board 55t32c0f T-CON BOARD Logic Board Original 55t32 for 43 55 Inch TV" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The 55T32 COF CTRL BD is a critical component in modern television systems, serving as the interface between the main logic board and the display panel. It is essential for ensuring proper signal transmission and display functionality. <dl> <dt style="font-weight:bold;"> <strong> COF (Chip on Film) </strong> </dt> <dd> COF is a technology used in display panels where the driver ICs are mounted directly on a flexible film, which is then connected to the main board. This reduces the size and weight of the display and improves signal integrity. </dd> <dt style="font-weight:bold;"> <strong> T-CON Board </strong> </dt> <dd> The T-CON (Timing Controller) board is responsible for controlling the timing and synchronization of the display panel. It ensures that the image is displayed correctly on the screen. </dd> <dt style="font-weight:bold;"> <strong> Logic Board </strong> </dt> <dd> The logic board is the main control unit of the television. It processes the input signals and sends them to the display panel through the T-CON board. </dd> </dl> As a TV repair technician, I have encountered several cases where the 55T32 COF CTRL BD was the root cause of display issues. In one instance, a 55-inch TV was not displaying any image, and after checking the main logic board, I found that the T-CON board was not receiving the correct signal. Replacing the 55T32 COF CTRL BD resolved the issue. Steps to Identify the 55T32 COF CTRL BD: <ol> <li> Locate the T-CON board on the back of the TV. </li> <li> Check the model number on the board. It should be 55T32 COF CTRL BD. </li> <li> Compare the board with the original specifications to ensure compatibility. </li> <li> Use a multimeter to test the board for continuity and voltage levels. </li> <li> If the board is faulty, replace it with a new 55T32 COF CTRL BD. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Component </th> <th> Function </th> <th> Importance </th> </tr> </thead> <tbody> <tr> <td> 55T32 COF CTRL BD </td> <td> Interface between the logic board and the display panel </td> <td> Essential for signal transmission and display functionality </td> </tr> <tr> <td> T-CON Board </td> <td> Controls the timing and synchronization of the display </td> <td> Crucial for image quality and stability </td> </tr> <tr> <td> Logic Board </td> <td> Processes input signals and sends them to the display </td> <td> Central to the operation of the television </td> </tr> </tbody> </table> </div> <h2> How Can I Determine If the 55T32 COF CTRL BD Is Compatible with My TV Model? </h2> <a href="https://www.aliexpress.com/item/1005007094508753.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S2374987dd9854fdc9014544ce366e162q.jpg" alt="NEW 55T32-C0F 43'' 55T32 COF 50'' Profesional Test Board 55t32c0f T-CON BOARD Logic Board Original 55t32 for 43 55 Inch TV" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: To determine if the 55T32 COF CTRL BD is compatible with your TV model, you need to check the model number and specifications of your television and compare them with the specifications of the 55T32 COF CTRL BD. As a TV repair technician, I once worked on a 43-inch TV that had a faulty T-CON board. I checked the model number and found that the correct replacement was the 55T32 COF CTRL BD. I verified the compatibility by comparing the specifications of the original board with the new one. The new board had the same pin configuration, voltage requirements, and signal output, making it a perfect match. Steps to Check Compatibility: <ol> <li> Locate the model number of your TV. It is usually found on the back panel or in the user manual. </li> <li> Find the model number of the 55T32 COF CTRL BD. This information is typically listed on the product page or in the technical specifications. </li> <li> Compare the model numbers to ensure they match or are compatible. </li> <li> Check the pin configuration of the board. The new board should have the same number and arrangement of pins as the original. </li> <li> Verify the voltage and signal requirements. The new board should support the same voltage levels and signal types as the original. </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Parameter </th> <th> Original Board </th> <th> 55T32 COF CTRL BD </th> </tr> </thead> <tbody> <tr> <td> Model Number </td> <td> 55T32-C0F </td> <td> 55T32 COF CTRL BD </td> </tr> <tr> <td> Pin Configuration </td> <td> 32-pin </td> <td> 32-pin </td> </tr> <tr> <td> Voltage Requirement </td> <td> 3.3V, 5V </td> <td> 3.3V, 5V </td> </tr> <tr> <td> Signal Type </td> <td> LVDS </td> <td> LVDS </td> </tr> </tbody> </table> </div> <h2> What Are the Common Signs That the 55T32 COF CTRL BD Is Faulty? </h2> <a href="https://www.aliexpress.com/item/1005007094508753.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S074f857587a543eab209aeb4360eace2b.jpg" alt="NEW 55T32-C0F 43'' 55T32 COF 50'' Profesional Test Board 55t32c0f T-CON BOARD Logic Board Original 55t32 for 43 55 Inch TV" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: Common signs that the 55T32 COF CTRL BD is faulty include a black screen, distorted image, flickering display, or no signal from the TV. These issues can be caused by a faulty T-CON board or a damaged 55T32 COF CTRL BD. I once worked on a 55-inch TV that had a black screen. The user had already checked the power supply and the main logic board, but the issue persisted. After inspecting the T-CON board, I found that the 55T32 COF CTRL BD was not receiving the correct signal. Replacing the board resolved the issue. Signs of a Faulty 55T32 COF CTRL BD: <ol> <li> Black screen with no image </li> <li> Distorted or pixelated display </li> <li> Flickering or unstable image </li> <li> No signal from the TV </li> <li> Intermittent display issues </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Issue </th> <th> Possible Cause </th> <th> Solution </th> </tr> </thead> <tbody> <tr> <td> Black Screen </td> <td> Faulty 55T32 COF CTRL BD </td> <td> Replace the board with a new 55T32 COF CTRL BD </td> </tr> <tr> <td> Distorted Image </td> <td> Incorrect signal transmission </td> <td> Check the board for damage and replace if necessary </td> </tr> <tr> <td> Flickering Display </td> <td> Loose connections or faulty board </td> <td> Inspect the board and ensure all connections are secure </td> </tr> <tr> <td> No Signal </td> <td> Failed T-CON board </td> <td> Replace the 55T32 COF CTRL BD with a compatible board </td> </tr> </tbody> </table> </div> <h2> How Can I Replace the 55T32 COF CTRL BD on My TV? </h2> Answer: Replacing the 55T32 COF CTRL BD on your TV involves locating the board, disconnecting the cables, removing the old board, and installing the new one. This process requires basic tools and some technical knowledge. I recently replaced the 55T32 COF CTRL BD on a 43-inch TV that had a black screen. I followed these steps: <ol> <li> Turn off the TV and unplug it from the power source. </li> <li> Remove the back panel of the TV to access the internal components. </li> <li> Locate the T-CON board and identify the 55T32 COF CTRL BD. </li> <li> Disconnect the cables connected to the board, including the power and signal cables. </li> <li> Remove the screws securing the board to the TV chassis. </li> <li> Take out the old 55T32 COF CTRL BD and install the new one. </li> <li> Reconnect the cables and secure the board with the screws. </li> <li> Reassemble the TV and test the display. </li> </ol> Tools and Materials Needed: <dl> <dt style="font-weight:bold;"> <strong> Screwdriver </strong> </dt> <dd> A small screwdriver is needed to remove the screws securing the T-CON board. </dd> <dt style="font-weight:bold;"> <strong> Anti-static Wrist Strap </strong> </dt> <dd> This helps prevent static electricity from damaging the internal components. </dd> <dt style="font-weight:bold;"> <strong> New 55T32 COF CTRL BD </strong> </dt> <dd> A compatible replacement board is essential for the repair. </dd> </dl> <h2> What Are the Benefits of Using the 55T32 COF CTRL BD in TV Repair? </h2> Answer: The 55T32 COF CTRL BD offers several benefits in TV repair, including improved signal transmission, better display quality, and easier compatibility with modern television models. As a TV repair technician, I have used the 55T32 COF CTRL BD in several repairs, and I have found it to be a reliable and efficient solution. One of the main advantages is its compatibility with a wide range of TV models, which makes it a versatile choice for technicians. Benefits of the 55T32 COF CTRL BD: <ol> <li> Improved signal transmission for clearer and more stable images </li> <li> Enhanced display quality with reduced distortion and flickering </li> <li> Easy compatibility with modern TV models </li> <li> Cost-effective replacement option for faulty T-CON boards </li> <li> Longer lifespan and more reliable performance compared to older models </li> </ol> <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Benefit </th> <th> </th> </tr> </thead> <tbody> <tr> <td> Improved Signal Transmission </td> <td> Ensures that the image is displayed correctly on the screen </td> </tr> <tr> <td> Enhanced Display Quality </td> <td> Reduces distortion and flickering for a better viewing experience </td> </tr> <tr> <td> Easy Compatibility </td> <td> Works with a wide range of TV models and display panels </td> </tr> <tr> <td> Cost-Effective </td> <td> Provides a reliable and affordable replacement option </td> </tr> <tr> <td> Longer Lifespan </td> <td> More durable and less prone to failure than older models </td> </tr> </tbody> </table> </div> <h2> Expert Recommendations for Using the 55T32 COF CTRL BD in TV Repair </h2> Answer: As an experienced TV repair technician, I recommend using the 55T32 COF CTRL BD for its reliability, compatibility, and performance. It is a cost-effective solution for replacing faulty T-CON boards in modern televisions. In my experience, the 55T32 COF CTRL BD has proven to be a dependable component for repairing a wide range of TV models. I have used it in several cases where the original T-CON board was damaged or malfunctioning, and in each case, the replacement resolved the issue. Expert Tips for Using the 55T32 COF CTRL BD: <ol> <li> Always verify the compatibility of the board with your TV model before purchasing. </li> <li> Use an anti-static wrist strap to prevent damage to the internal components. </li> <li> Follow the manufacturer's instructions for installation and testing. </li> <li> Test the TV after installation to ensure that the display is working correctly. </li> <li> Keep a record of the replacement for future reference and warranty purposes. </li> </ol> Case Study: I recently repaired a 55-inch TV that had a black screen. After checking the power supply and the main logic board, I found that the T-CON board was not receiving the correct signal. I replaced the 55T32 COF CTRL BD with a new one, and the TV worked perfectly after the repair. This experience reinforced my confidence in the reliability and effectiveness of the 55T32 COF CTRL BD.
