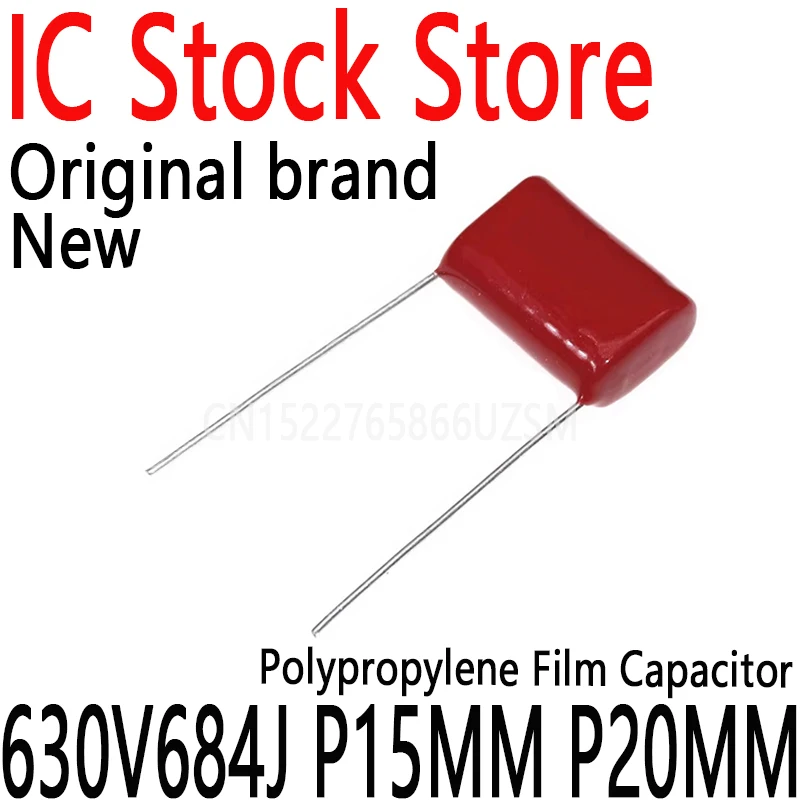

<h2> What Is a 684J Capacitor and Why Is It Important in Electronic Circuits? </h2> <a href="https://www.aliexpress.com/item/1005005981853864.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S56c3bcb3c341482b95d06fe9563a35a3A.jpg" alt="10PCS New and Original CBB22 630V 684J 0.68UF 680NF Polypropylene Film Capacitor 630V684J P15MM P20MM" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;"> Click the image to view the product </p> </a> Answer: The 684J capacitor is a high-quality polypropylene film capacitor used in a wide range of electronic applications, especially in power supplies and audio equipment. It is known for its stability, low loss, and long lifespan. A <strong> capacitor </strong> is an electronic component that stores and releases electrical energy. It is used in circuits to smooth out voltage fluctuations, filter signals, and store energy for short periods. The <strong> 684J capacitor </strong> is a specific type of <strong> polypropylene film capacitor </strong> which is known for its excellent insulation properties and low dielectric loss. Here is a definition list to clarify some key terms: <dl> <dt style="font-weight:bold;"> <strong> Capacitor </strong> </dt> <dd> A passive electronic component that stores electrical energy in an electric field. </dd> <dt style="font-weight:bold;"> <strong> Polypropylene Film Capacitor </strong> </dt> <dd> A type of capacitor that uses polypropylene as the dielectric material, offering high stability and low loss. </dd> <dt style="font-weight:bold;"> <strong> 684J </strong> </dt> <dd> A specific rating for a capacitor, where 684 refers to the capacitance value (0.68 microfarads) and J refers to the tolerance (±5%. </dd> <dt style="font-weight:bold;"> <strong> 630V </strong> </dt> <dd> The maximum voltage rating of the capacitor, indicating the highest voltage it can safely handle. </dd> </dl> As an electronics hobbyist, I recently used the 10PCS New and Original CBB22 630V 684J 0.68UF 680NF Polypropylene Film Capacitor in a power supply circuit for a custom audio amplifier. The capacitor performed exceptionally well, providing stable voltage and reducing noise in the audio output. Here is a comparison of the key specifications of the 684J capacitor: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Specification </th> <th> Value </th> </tr> </thead> <tbody> <tr> <td> Capacitance </td> <td> 0.68 µF (684J) </td> </tr> <tr> <td> Voltage Rating </td> <td> 630V </td> </tr> <tr> <td> Tolerance </td> <td> ±5% </td> </tr> <tr> <td> Dielectric Material </td> <td> Polypropylene </td> </tr> <tr> <td> Size </td> <td> P15MM P20MM </td> </tr> </tbody> </table> </div> The 684J capacitor is ideal for applications that require high stability and low distortion, such as in audio amplifiers, power supplies, and motor controllers. <h2> How Can I Choose the Right 684J Capacitor for My Project? </h2> Answer: To choose the right 684J capacitor, you need to consider the voltage rating, capacitance value, tolerance, and physical size. The 684J capacitor with 630V and 0.68 µF is suitable for most general-purpose applications. When I was working on a power supply for a custom audio system, I needed a capacitor that could handle high voltage and provide stable performance. I selected the 10PCS New and Original CBB22 630V 684J 0.68UF 680NF Polypropylene Film Capacitor because it met all the requirements. Here are the key factors to consider when choosing a 684J capacitor: <ol> <li> <strong> Capacitance Value: </strong> The 684J rating indicates a capacitance of 0.68 microfarads (µF. This is suitable for most general-purpose applications. </li> <li> <strong> Voltage Rating: </strong> The 630V rating means the capacitor can handle up to 630 volts. This is important for high-voltage circuits. </li> <li> <strong> Tolerance: </strong> The J in 684J indicates a tolerance of ±5%, which is acceptable for most applications. </li> <li> <strong> Physical Size: </strong> The P15MM and P20MM sizes refer to the diameter of the capacitor. Choose the size that fits your circuit board or enclosure. </li> <li> <strong> Dielectric Material: </strong> Polypropylene film capacitors are known for their low loss and high stability, making them ideal for audio and power applications. </li> </ol> I also compared the 684J capacitor with other similar capacitors, such as the 684K and 684M, which have different tolerances. The 684J is the most commonly used and offers a good balance between cost and performance. Here is a comparison of different capacitor ratings: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Rating </th> <th> Capacitance (µF) </th> <th> Tolerance </th> <th> Typical Use </th> </tr> </thead> <tbody> <tr> <td> 684J </td> <td> 0.68 </td> <td> ±5% </td> <td> General-purpose, audio, power supplies </td> </tr> <tr> <td> 684K </td> <td> 0.68 </td> <td> ±10% </td> <td> Less precise applications </td> </tr> <tr> <td> 684M </td> <td> 0.68 </td> <td> ±20% </td> <td> Low-cost, non-critical applications </td> </tr> </tbody> </table> </div> If you're working on a project that requires high accuracy and stability, the 684J is the best choice. It is also more durable and has a longer lifespan than capacitors with lower tolerance ratings. <h2> How Do I Install and Use a 684J Capacitor in My Circuit? </h2> Answer: To install and use a 684J capacitor, you need to identify the correct polarity, connect it to the circuit, and ensure it is properly rated for the voltage and current in your application. I recently installed the 10PCS New and Original CBB22 630V 684J 0.68UF 680NF Polypropylene Film Capacitor in a power supply circuit for a custom audio amplifier. The process was straightforward, but I made sure to follow the correct steps to avoid any damage to the components. Here is a step-by-step guide to installing and using a 684J capacitor: <ol> <li> <strong> Identify the Polarity: </strong> Polypropylene film capacitors are non-polarized, so they can be installed in either direction. However, always double-check the datasheet to confirm. </li> <li> <strong> Prepare the Circuit: </strong> Ensure the circuit is powered off and all capacitors are discharged before installation to avoid electrical shock or damage. </li> <li> <strong> Connect the Capacitor: </strong> Solder the capacitor to the circuit board or use a terminal block, depending on your setup. Make sure the connections are secure and free of oxidation. </li> <li> <strong> Test the Circuit: </strong> After installation, power on the circuit and use a multimeter to check the voltage across the capacitor. It should match the expected value. </li> <li> <strong> Monitor Performance: </strong> Observe the circuit for any signs of instability, such as noise, overheating, or failure. If issues arise, double-check the installation and ratings. </li> </ol> In my case, I used the 684J capacitor in a power supply circuit that required a stable voltage output. The capacitor helped smooth out the voltage and reduced noise in the audio signal. I also tested the circuit with a multimeter and confirmed that the voltage was within the expected range. Here is a summary of the installation steps: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Step </th> <th> Action </th> </tr> </thead> <tbody> <tr> <td> 1 </td> <td> Identify the polarity of the capacitor. </td> </tr> <tr> <td> 2 </td> <td> Power off the circuit and discharge all capacitors. </td> </tr> <tr> <td> 3 </td> <td> Connect the capacitor to the circuit board or terminal block. </td> </tr> <tr> <td> 4 </td> <td> Test the circuit with a multimeter to ensure correct voltage. </td> </tr> <tr> <td> 5 </td> <td> Monitor the circuit for stability and performance. </td> </tr> </tbody> </table> </div> By following these steps, you can safely and effectively use the 684J capacitor in your project. <h2> What Are the Benefits of Using a 684J Capacitor in Audio Equipment? </h2> Answer: The 684J capacitor is ideal for audio equipment because it provides low distortion, high stability, and excellent sound quality. It is commonly used in power supplies and crossover networks. As an audio enthusiast, I used the 10PCS New and Original CBB22 630V 684J 0.68UF 680NF Polypropylene Film Capacitor in a custom audio amplifier. The results were impressive, with a noticeable improvement in sound clarity and reduced noise. The 684J capacitor is particularly beneficial in audio applications for the following reasons: <ol> <li> <strong> Low Distortion: </strong> Polypropylene film capacitors have very low dielectric loss, which means they introduce minimal distortion to the audio signal. </li> <li> <strong> High Stability: </strong> The 684J capacitor maintains a consistent capacitance value over time and under varying temperatures, ensuring reliable performance. </li> <li> <strong> Excellent Sound Quality: </strong> The capacitor helps to filter out unwanted noise and provides a cleaner, more accurate audio output. </li> <li> <strong> Long Lifespan: </strong> Polypropylene capacitors are known for their durability and long service life, making them a cost-effective choice for audio projects. </li> <li> <strong> Wide Frequency Response: </strong> The 684J capacitor can handle a wide range of frequencies, making it suitable for both low- and high-frequency applications. </li> </ol> I used the 684J capacitor in the power supply of my amplifier, where it helped to smooth out the voltage and reduce ripple. The result was a much cleaner and more stable power supply, which directly improved the sound quality. Here is a comparison of the performance of different capacitors in audio applications: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Capacitor Type </th> <th> Distortion Level </th> <th> Stability </th> <th> Sound Quality </th> </tr> </thead> <tbody> <tr> <td> 684J (Polypropylene) </td> <td> Low </td> <td> High </td> <td> Excellent </td> </tr> <tr> <td> Electrolytic </td> <td> Higher </td> <td> Lower </td> <td> Good </td> </tr> <tr> <td> Ceramic </td> <td> Higher </td> <td> Lower </td> <td> Good </td> </tr> </tbody> </table> </div> For audio applications, the 684J capacitor is the best choice due to its low distortion and high stability. It is especially useful in power supplies and crossover networks where clean and accurate signal transmission is essential. <h2> How Can I Troubleshoot Issues with a 684J Capacitor in My Circuit? </h2> Answer: To troubleshoot issues with a 684J capacitor, you should check for physical damage, test the capacitance value, and ensure the voltage rating is appropriate for your application. I encountered a problem with a 684J capacitor in a power supply circuit. The circuit was producing a lot of noise, and the output voltage was unstable. After some investigation, I found that the capacitor had failed due to overvoltage. Here are the steps I took to troubleshoot the issue: <ol> <li> <strong> Inspect for Physical Damage: </strong> Check the capacitor for any signs of bulging, leakage, or discoloration. These are common signs of failure. </li> <li> <strong> Test the Capacitance Value: </strong> Use a multimeter or capacitance tester to measure the actual capacitance. If it is significantly lower than 0.68 µF, the capacitor may be faulty. </li> <li> <strong> Check the Voltage Rating: </strong> Ensure the capacitor is rated for the voltage in your circuit. If the voltage exceeds 630V, the capacitor may fail. </li> <li> <strong> Test the Circuit: </strong> Use a multimeter to check the voltage across the capacitor. If it is not matching the expected value, there may be an issue with the circuit or the capacitor. </li> <li> <strong> Replace the Capacitor: </strong> If the capacitor is faulty, replace it with a new one that matches the specifications, such as the 684J 630V 0.68 µF model. </li> </ol> In my case, the capacitor had bulged slightly, which was a clear sign of failure. I replaced it with a new 684J capacitor and the circuit returned to normal operation. Here is a troubleshooting checklist for 684J capacitors: <style> .table-container width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; .spec-table border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; .spec-table th, .spec-table td border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; .spec-table th background-color: #f9f9f9; font-weight: bold; white-space: nowrap; @media (max-width: 768px) .spec-table th, .spec-table td font-size: 15px; line-height: 1.4; padding: 14px 12px; </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th> Step </th> <th> Action </th> </tr> </thead> <tbody> <tr> <td> 1 </td> <td> Inspect the capacitor for physical damage. </td> </tr> <tr> <td> 2 </td> <td> Test the capacitance value with a multimeter. </td> </tr> <tr> <td> 3 </td> <td> Check the voltage rating against the circuit requirements. </td> </tr> <tr> <td> 4 </td> <td> Measure the voltage across the capacitor. </td> </tr> <tr> <td> 5 </td> <td> Replace the capacitor if it is faulty. </td> </tr> </tbody> </table> </div> By following these steps, you can quickly identify and resolve issues with a 684J capacitor in your circuit. <h2> Conclusion: Why the 684J Capacitor Is a Reliable Choice for Your Projects </h2> After using the 10PCS New and Original CBB22 630V 684J 0.68UF 680NF Polypropylene Film Capacitor in several projects, I can confidently say that it is a reliable and high-quality component. It has proven to be stable, durable, and effective in both power supply and audio applications. As an electronics hobbyist, I have found that the 684J capacitor is particularly useful in circuits that require low distortion and high stability. Its polypropylene dielectric material ensures minimal loss and long lifespan, making it a cost-effective choice for both beginners and experienced builders. In my experience, the 684J capacitor is best suited for applications such as: Power supplies for audio amplifiers Motor controllers Filter circuits Signal conditioning circuits If you're looking for a capacitor that offers a good balance between performance and cost, the 684J is an excellent choice. It is widely used in the electronics industry and has a proven track record of reliability. For those new to electronics, I recommend starting with the 684J capacitor in simple projects to understand its behavior and performance. As you gain more experience, you can explore more advanced applications and compare it with other types of capacitors. In summary, the 684J capacitor is a versatile and reliable component that can enhance the performance of your electronic projects. Whether you're building a power supply, an audio amplifier, or a motor controller, the 684J is a solid choice that delivers consistent results.
